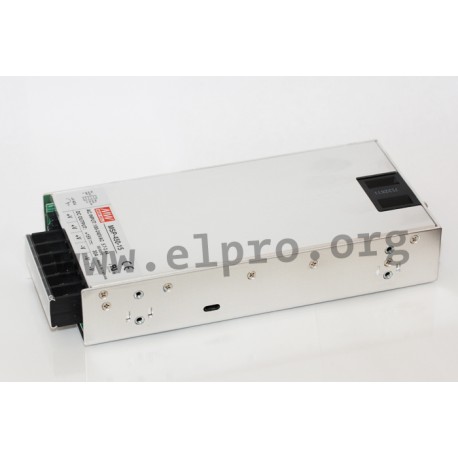

MSP-450-15

Mean Well power supply series MSP-450

Switching power supplies in an enclosed housing with 450W, a built-in fan, a universal input, screw terminals, a DC OK signal, a built-in auxiliary power (standby 5V/0,3A), a low no-load power (<0,6W), a built-in remote sense function and a remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for medical applications and comply with EN60601-1 (MOOP level), EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MSP-450-3.3, MSP-450-5, MSP-450-7.5, MSP-450-12, MSP-450-24, MSP-450-36 and MSP-450-48.

  • single output
  • output: 297 to 456W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <300µA (earth) / <100µA (touch)
  • output voltage adjustment: ±15%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 1190g
MSP-450-15

MSP-450-15

41542 MSP-450-15 MSP-450-15 4711287437538 Mean Well power supply series MSP-450. Switching power supplies in an enclosed housing with 450W, a built-in fan, a universal input, screw terminals, a DC OK signal, a built-in auxiliary power (standby 5V/0,3A), a low no-load power (&lt;0,6W), a built-in remote sense function and a remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for medical applications and comply with EN60601-1 (MOOP level), EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MSP-450-3.3, MSP-450-5, MSP-450-7.5, MSP-450-12, MSP-450-24, MSP-450-36 and MSP-450-48. single output output: 297 to 456W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A leakage current: &lt;300µA (earth) / &lt;100µA (touch) output voltage adjustment: ±15% overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C weight: 1190g

Specifications

manufacturer
Manufacturer's name MSP-450-15
GTIN 4711287437538
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 89
Output current range [A] 0...30
Output voltage tolerance: [%] 1
Output power [W] 450
Ripple [mVp-p] 150
Data Sheet

Unit price

143,49 €

Stock: 0
Further delivery:
CW 12/2025
