MSP-300-12

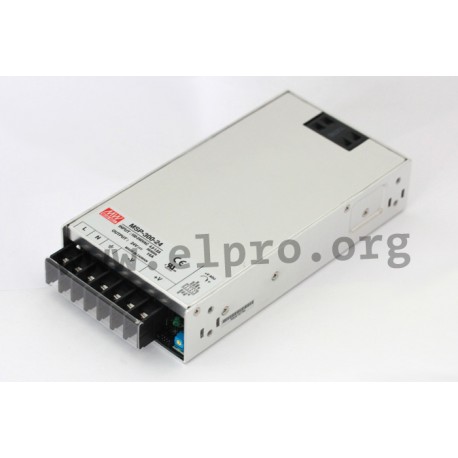

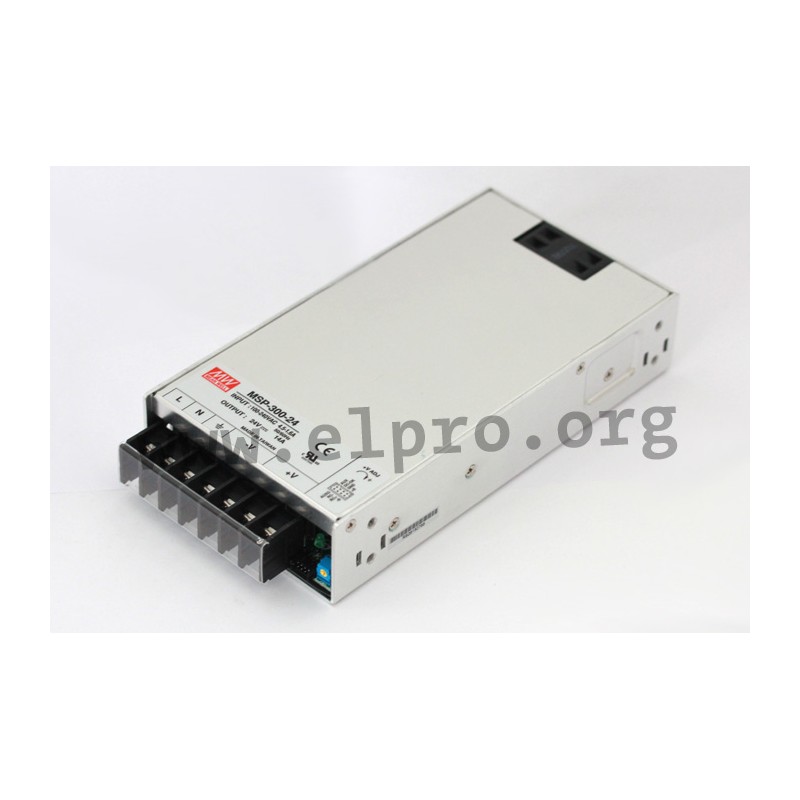

Mean Well power supply series MSP-300

Switching power supplies in an enclosed housing with 300W, a universal input, a fan, screw terminals, a DC OK signal, a low no-load power, a built-in auxiliary power (standby, 5V/0,3A), a built-in remote sense function and a built-in remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for medical applications (MOOP level) and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MSP-300-3.3, MSP-300-5, MSP-300-7.5, MSP-300-12, MSP-300-15, MSP-300-24, MSP-300-36 and MSP-300-48.

  • single output
  • output: 198 to 336W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <450µA (earth) / <100µA (touch)
  • output voltage adjustment: ±10%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 950g
MSP-300-12

MSP-300-12

37908 MSP-300-12 MSP-300-12 4711287437446 Mean Well power supply series MSP-300. Switching power supplies in an enclosed housing with 300W, a universal input, a fan, screw terminals, a DC OK signal, a low no-load power, a built-in auxiliary power (standby, 5V/0,3A), a built-in remote sense function and a built-in remote ON/OFF&nbsp;control. These devices have a built-in active PFC function and are protected against overload (auto recovery),&nbsp;overvoltage as well as short circuit. They are suitable for medical applications (MOOP level) and comply with&nbsp;EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;MSP-300-3.3, MSP-300-5, MSP-300-7.5, MSP-300-12, MSP-300-15, MSP-300-24, MSP-300-36 and MSP-300-48. single output output: 198 to 336W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A leakage current: &lt;450&micro;A (earth) / &lt;100&micro;A (touch) output voltage adjustment:&nbsp;&plusmn;10% overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70&deg;C weight: 950g

Specifications

manufacturer
Manufacturer's name MSP-300-12
GTIN 4711287437446
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...27
Output voltage tolerance: [%] 1
Output power [W] 324
Ripple [mVp-p] 120
Data Sheet

Unit price

103,99 €

Volume discounts

Quantity Unit price
50 + 101,79 €

Stock: 8
Further delivery:
CW 16/2025
