MSP-200-3.3

Mean Well power supply series MSP-200

Switching power supplies in an enclosed housing (1U) with 200W, a universal input, screw terminals a DC OK signal, a built-in auxiliary power (standby 5V/0,3A), a built-in remote ON/OFF control, a low no-load power (<0,5W) and a built-in remote sense function. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for medical applications and comply with EN60601-1. We offer the following types of this Mean Well series: MSP-200-3.3, MSP-200-12, MSP-200-24, MSP-200-36 and MSP-200-48.

  • single output
  • output: 132 to 206,4W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <300µA (earth) / <100µA (touch)
  • output voltage adjustment: ±15%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 770g

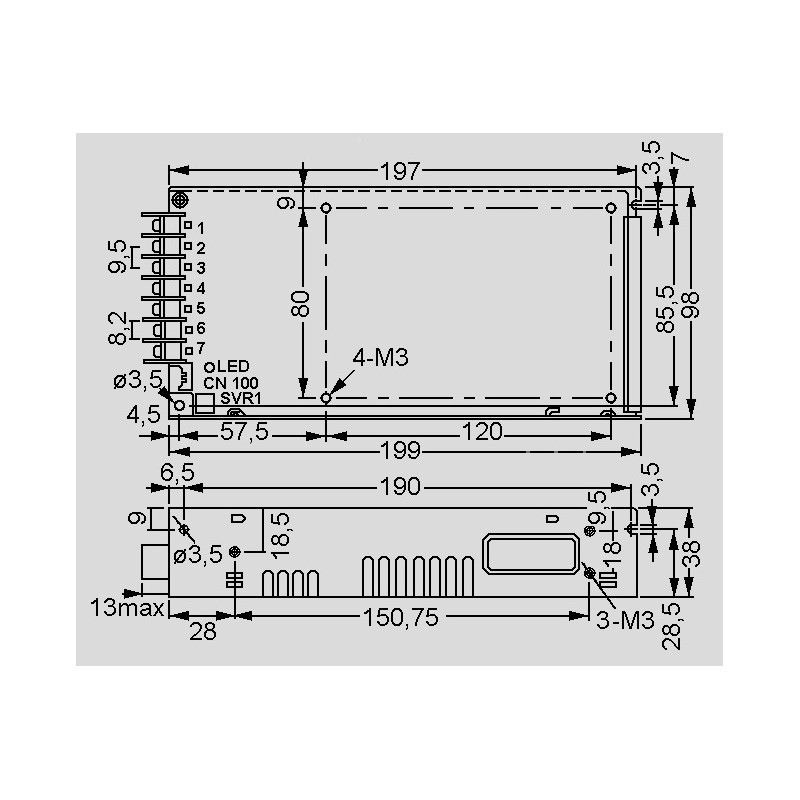

dimensions and terminal pin assignment

MSP-200-3.3

38431 MSP-200-3.3 MSP-200-3.3 4711287437392 Mean Well power supply series MSP-200. Switching power supplies in an enclosed housing (1U) with 200W, a universal input, screw terminals a DC OK signal, a built-in auxiliary power (standby 5V/0,3A), a built-in remote ON/OFF control, a low no-load power (&lt;0,5W) and a built-in remote sense function. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for medical applications and comply with&nbsp;EN60601-1. We offer the following types of this Mean Well series:&nbsp;MSP-200-3.3,&nbsp;MSP-200-12,&nbsp;MSP-200-24,&nbsp;MSP-200-36 and&nbsp;MSP-200-48. single output output: 132 to 206,4W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A leakage current: &lt;300&micro;A (earth) / &lt;100&micro;A (touch) output voltage adjustment:&nbsp;&plusmn;15% overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70&deg;C weight: 770g

Specifications

manufacturer
Manufacturer's name MSP-200-3.3
GTIN 4711287437392
Phase 2 phase
Efficiency [%] 80
Output current range [A] 0...40
Output voltage tolerance: [%] 2
Output power [W] 132
Ripple [mVp-p] 80
Data Sheet

Unit price

75,79 €

Volume discounts

Quantity Unit price
50 + 74,19 €

Stock: 8
Further delivery:
CW 12/2025
