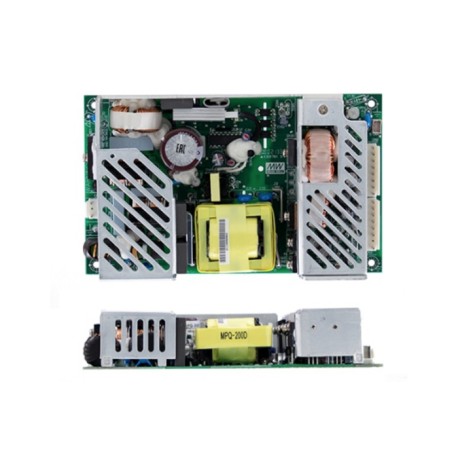

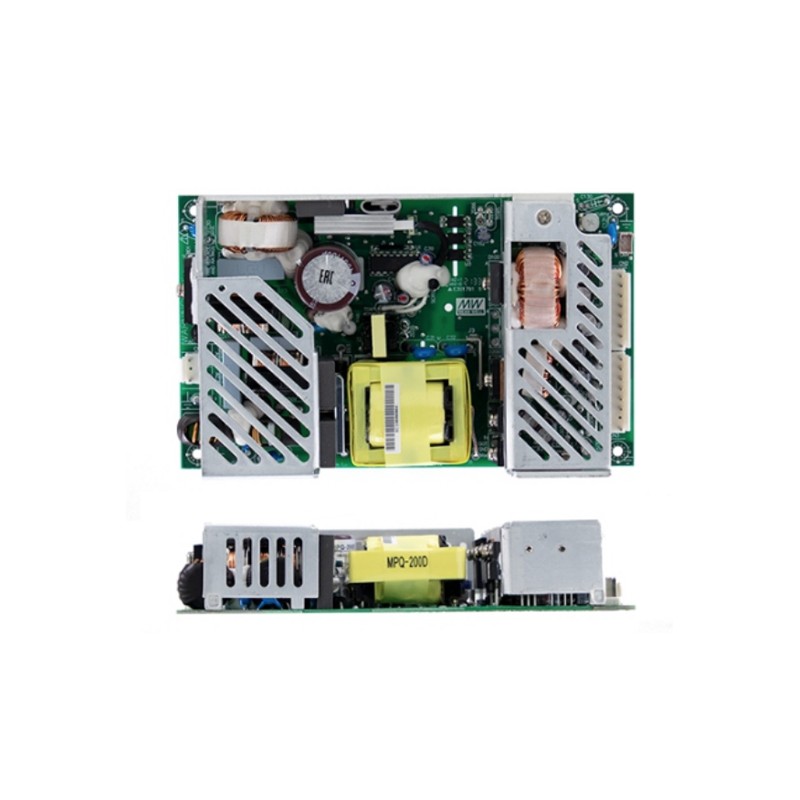

MPQ-200C

Mean Well power supply series MPQ-200

Open frame switching power supplies with 200W, a universal input and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a fixed switching (100kHz) and comply with EN60601-1 as well as EN55011 class B. We offer the following types of this Mean Well series: MPQ-200B, MPQ-200C, MPQ-200D and MPQ-200F.

  • quad output
  • output: 200W (140W free air convection)
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • no-load power: <0,075W
  • overload protection: 110 to 180%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -20 to +70°C
  • weight: 660g
MPQ-200C, Mean Well switching power supplies, 200W (forced air), quad output, for medical technology, MPQ-200 series

MPQ-200C

244967 MPQ-200C MPQ-200C 4711287428789 Mean Well power supply series MPQ-200. Open frame switching power supplies with 200W, a universal input and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a fixed switching (100kHz) and comply with EN60601-1 as well as EN55011 class B. We offer the following types of this Mean Well series: MPQ-200B, MPQ-200C, MPQ-200D and MPQ-200F. quad output output: 200W (140W free air convection) input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A no-load power: &lt;0,075W overload protection: 110 to 180% withstand voltage I/P-O/P: 4000V AC operating temperature: -20 to +70°C weight: 660g

Specifications

manufacturer
Manufacturer's name MPQ-200C
GTIN 4711287428789
Output voltage [V] 5/15/-5/-15
Efficiency [%] 78
Output current [A] 15/5/2/2
Output voltage tolerance: [%] 2/6/5/5
Ripple [mVp-p] 80/150/80/80
Data Sheet

Unit price

73,09 €

Stock: 0
Further delivery:
CW 12/2025
