MPM-90-48

Mean Well power supply series MPM-90

Switching power supplies in an enclosed housing with 90W, a universal input and insulation class II. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and are suitable for either PCB mounting (MPM-90-_) or mounting by screw terminals (MPM-90-_ST). They are rated for a peak power of 100W over 10 seconds and comply wtih EN60601-1 as well as EN55011 class B. We offer the following types of this Mean Well series: MPM-90-12, MPM-90-15, MPM-90-24, MPM-90-48, MPM-90-12ST, MPM-90-15ST, MPM-90-24ST and MPM-90-48ST.

  • single output
  • output: 80,4 to 90,2W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 65A
  • maximal no-load power consumption: <0,1W
  • overload protection: 115 to 160%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +80°C
  • dimensions MPM-90-_: 87x52x29,5mm
  • dimensions MPM-90-_ST: 109x52x33,5mm
  • weight MPM-90-_: 197g
  • weight MPM-90-_ST: 219g

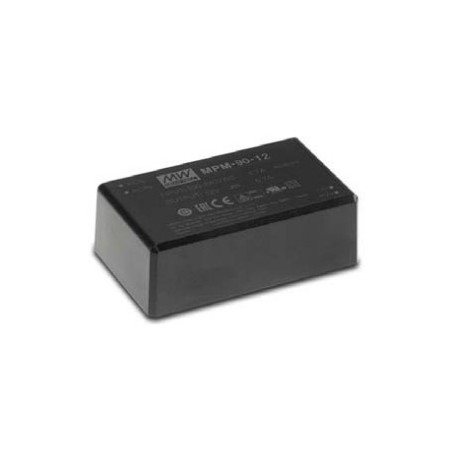

MPM-90-48, Mean Well switching power supplies, 90W, for medical technology, PCB, MPM-90 series

MPM-90-48

135926 MPM-90-48 MPM-90-48 4711287426945 Mean Well power supply series MPM-90. Switching power supplies in an enclosed housing&nbsp;with 90W, a universal input and insulation class II. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and are suitable for either PCB mounting (MPM-90-_) or mounting by screw terminals (MPM-90-_ST). They are rated for a peak power of 100W over 10 seconds and comply wtih EN60601-1 as well as EN55011 class B. We offer the following types of this Mean Well series:&nbsp;MPM-90-12,&nbsp;MPM-90-15,&nbsp;MPM-90-24,&nbsp;MPM-90-48,&nbsp;MPM-90-12ST,&nbsp;MPM-90-15ST,&nbsp;MPM-90-24ST and&nbsp;MPM-90-48ST. single output output: 80,4 to 90,2W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 65A maximal no-load power consumption: &lt;0,1W overload protection: 115 to 160% withstand voltage I/P-O/P: 4000V AC operating temperature: -30 to +80&deg;C dimensions MPM-90-_: 87x52x29,5mm dimensions MPM-90-_ST: 109x52x33,5mm weight MPM-90-_: 197g weight MPM-90-_ST: 219g

Specifications

manufacturer
Manufacturer's name MPM-90-48
GTIN 4711287426945
Output voltage [V] 48
Efficiency [%] 93
Output current [A] 1,88
Output power [W] 90,2
Ripple [mVp-p] 240
Data Sheet

Unit price

24,89 €

Volume discounts

Quantity Unit price
50 + 23,39 €

Stock: 54
Further delivery:
CW 12/2025
