MPM-65-48

Mean Well power supply series MPM-65

Switching power supplies in an enclosed housing with 65W, a universal input and insulation class II. These devices are suitable for both PCB mounting (MPM-65-_) as well as mounting with screw terminals (MPM-65-_ST) and are protected against short circuit, overload (auto recovery) and overvoltage. They are designed for a peak power of 71W over 10 seconds and comply with EN60601-1 and EN55011 class B. We offer the following types of this Mean Well series: MPM-65-5, MPM-65-12, MPM-65-15, MPM-65-24, MPM-65-48, MPM-65-5ST, MPM-65-12ST, MPM-65-15ST, MPM-65-24ST and MPM-65-48ST.

  • single output
  • output: 50 to 65,3W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 65A
  • maximal no-load power consumption: <0,1W
  • overload protection: 115 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +80°C
  • dimensions MPM-65-_: 87x52x29,5mm
  • dimensions MPM-65-_ST: 109x52x33,5mm
  • weight MPM-65-_: 191g
  • weight MPM-65-_ST: 216g

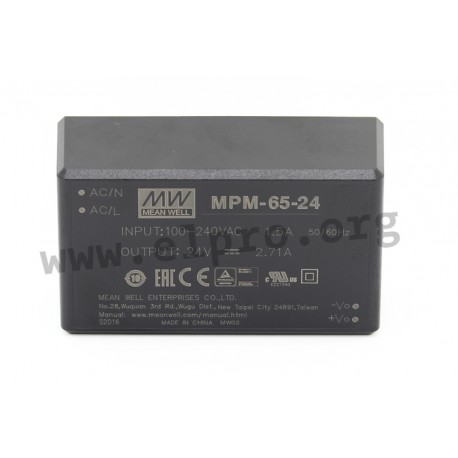

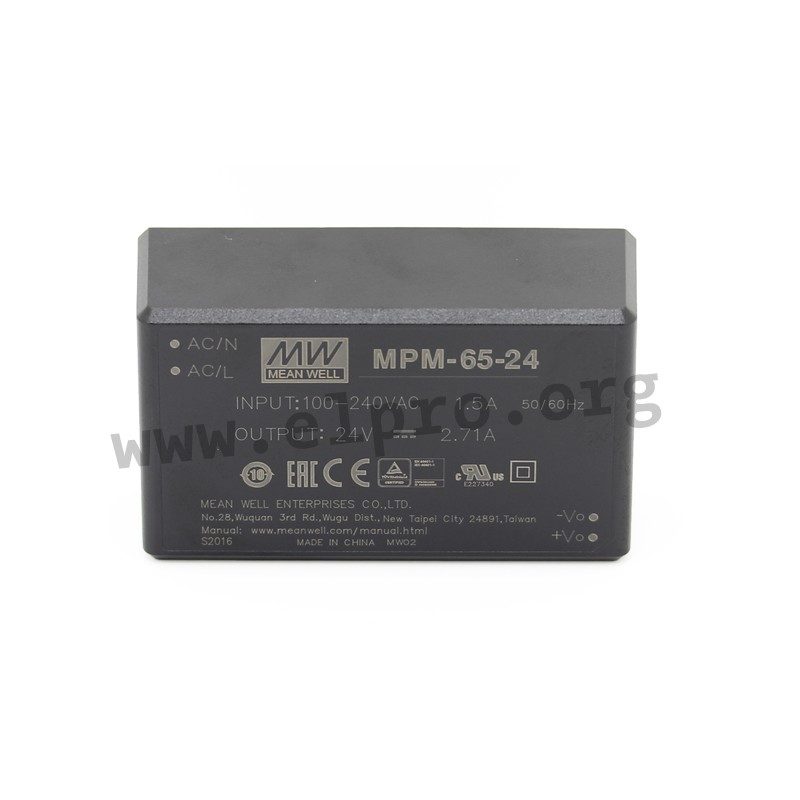

MPM-65-48, Mean Well switching power supplies, 65W, for medical technology, PCB, MPM-65 series

MPM-65-48

135918 MPM-65-48 MPM-65-48 4711287426853 Mean Well power supply series MPM-65. Switching power supplies in an enclosed housing with 65W, a universal input and insulation class II. These devices are suitable for both PCB mounting (MPM-65-_) as well as mounting with screw terminals (MPM-65-_ST) and are protected against short circuit, overload (auto recovery) and overvoltage. They are designed for a peak power of 71W over 10 seconds and comply with EN60601-1 and EN55011 class B. We offer the following types of this Mean Well series: MPM-65-5, MPM-65-12, MPM-65-15, MPM-65-24, MPM-65-48, MPM-65-5ST, MPM-65-12ST, MPM-65-15ST, MPM-65-24ST and MPM-65-48ST. single output output: 50 to 65,3W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 65A maximal no-load power consumption: &lt;0,1W overload protection: 115 to 135% withstand voltage I/P-O/P: 4000V AC operating temperature: -30 to +80°C dimensions MPM-65-_: 87x52x29,5mm dimensions MPM-65-_ST: 109x52x33,5mm weight MPM-65-_: 191g weight MPM-65-_ST: 216g

Specifications

manufacturer
Manufacturer's name MPM-65-48
GTIN 4711287426853
Output voltage [V] 48
Efficiency [%] 92
Output current [A] 1,36
Output power [W] 65,3
Ripple [mVp-p] 240
Data Sheet

Unit price

22,09 €

Volume discounts

Quantity Unit price
50 + 20,89 €

Stock: 70
Further delivery:
CW 12/2025
