MPM-45-15

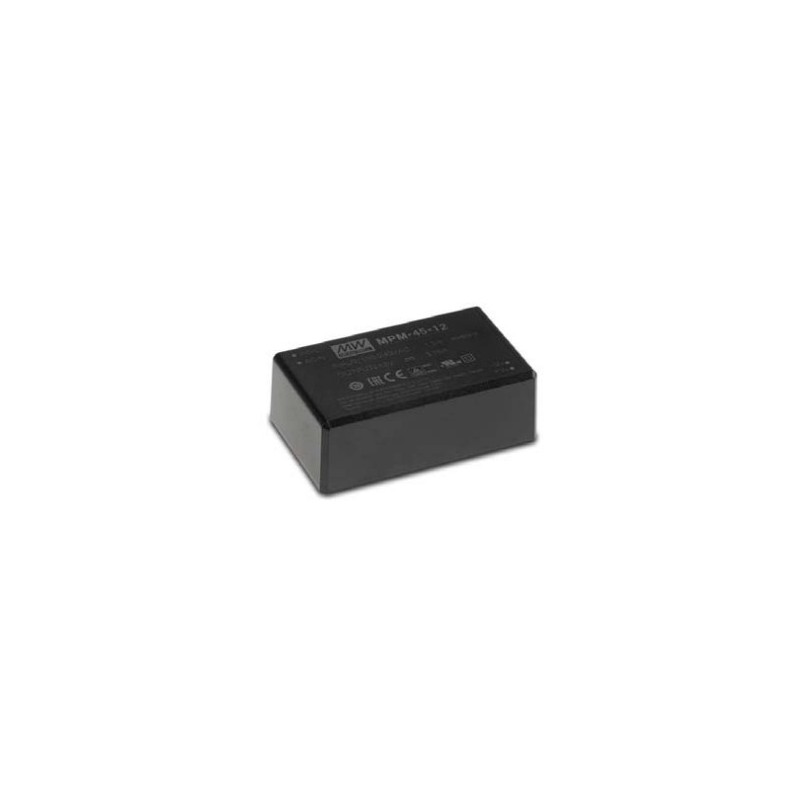

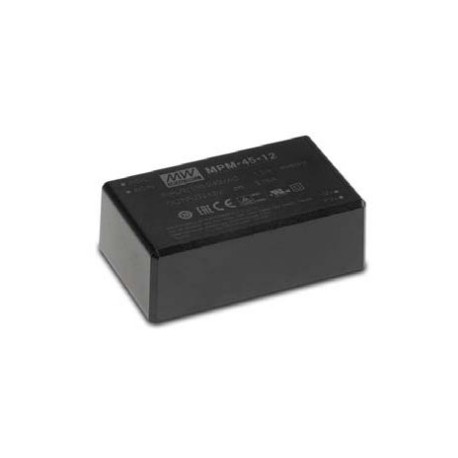

Mean Well power supply series MPM-45

Switching power supplies in an enclosed housing with 45W, a universal input and insulation class II. These devices are suitable for PCB mounting (MPM-45-_) as well as for mounting with screw terminals (MPM-45-_ST) and are protected against overload (auto recovery), short circuit as well as overvoltage. They are rated for a peak power of 50W over 10 seconds, are suitable for medical applications and comply with EN60601-1 as well as EN55011 class B. We offer the following types of this Mean Well series: MPM-45-5, MPM-45-12, MPM-45-15, MPM-45-24, MPM-45-48, MPM-45-5ST, MPM-45-12ST, MPM-45-15ST, MPM-45-24ST and MPM-45-48ST.

  • single output
  • output: 40 to 45,1W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 60A
  • maximal no-load power consumption: <0,1W
  • overload protection: 115 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +80°C
  • dimensions MPM-45-_: 87x52x29,5mm
  • dimensions MPM-45-_ST: 109x52x33,5mm
  • weight MPM-45-_: 185g
  • weight MPM-45-_ST: 206g
MPM-45-15, Mean Well switching power supplies, 45W, for medical technology, PCB, MPM-45 series

MPM-45-15

135904 MPM-45-15 MPM-45-15 4711287426730 Mean Well power supply series MPM-45. Switching power supplies in an enclosed housing&nbsp;with 45W, a universal input and insulation class II. These devices are suitable for PCB mounting (MPM-45-_) as well as for mounting with screw terminals (MPM-45-_ST) and are protected against overload (auto recovery), short circuit as well as overvoltage. They are rated for a peak power of 50W over 10 seconds, are suitable for medical&nbsp;applications&nbsp;and comply with EN60601-1 as well as EN55011 class B. We offer the following types of this Mean Well series:&nbsp;MPM-45-5,&nbsp;MPM-45-12,&nbsp;MPM-45-15,&nbsp;MPM-45-24,&nbsp;MPM-45-48,&nbsp;MPM-45-5ST,&nbsp;MPM-45-12ST,&nbsp;MPM-45-15ST,&nbsp;MPM-45-24ST and&nbsp;MPM-45-48ST. single output output: 40 to 45,1W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 60A maximal no-load power consumption: &lt;0,1W overload protection: 115 to 135% withstand voltage I/P-O/P: 4000V AC operating temperature: -30 to +80&deg;C dimensions MPM-45-_: 87x52x29,5mm dimensions MPM-45-_ST: 109x52x33,5mm weight MPM-45-_: 185g weight MPM-45-_ST: 206g

Specifications

manufacturer
Manufacturer's name MPM-45-15
GTIN 4711287426730
Output voltage [V] 15
Efficiency [%] 92,5
Output current [A] 3
Output power [W] 45
Ripple [mVp-p] 120
Data Sheet

Unit price

19,49 €

Volume discounts

Quantity Unit price
50 + 18,39 €

Stock: 53
