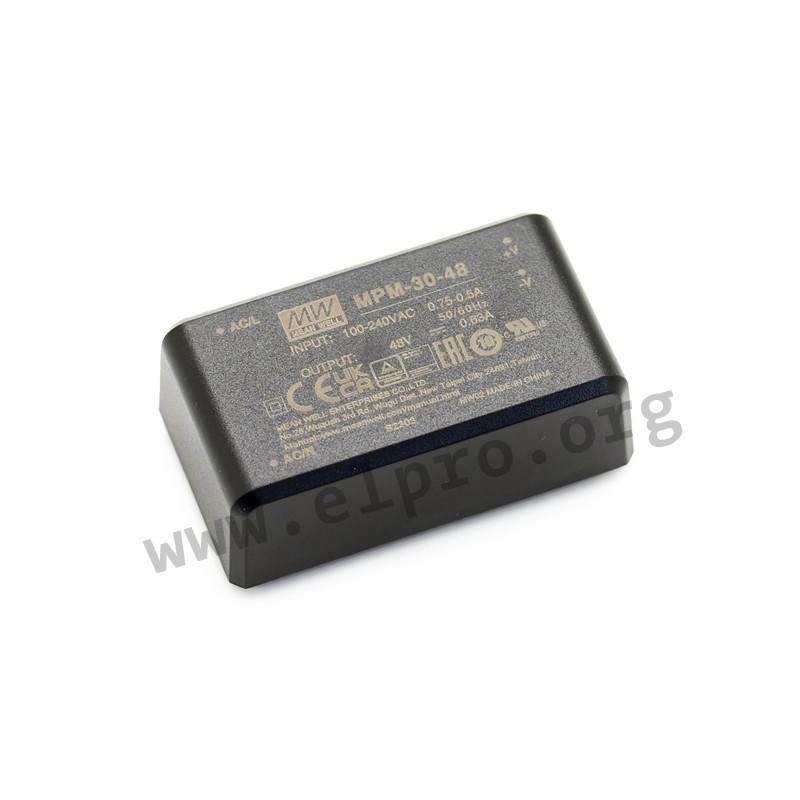

MPM-30-3.3

Mean Well power supply series MPM-30

Switching power supplies in an enclosed housing (PCB) with 30W, screw terminals (MPM-30-_ST), insulation class II, a low no-load power and a universal input. These devices are suitable for medical applications and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for PCB mounting and comply with EN60601-1. We offer the following types of this Mean Well series: MPM-30-3.3, MPM-30-5, MPM-30-12, MPM-30-15, MPM-30-24, MPM-30-48, MPM-30-3.3ST, MPM-30-5ST, MPM-30-12ST, MPM-30-15ST, MPM-30-24ST and MPM-30-48ST.

  • single output
  • output: 19,8 to 31,2W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 45A
  • no-load power: <0,075W
  • overload protection: 115 to 165%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +85°C
  • weight MPM-30_: 102g
  • weight MPM-30-_ST: 120g

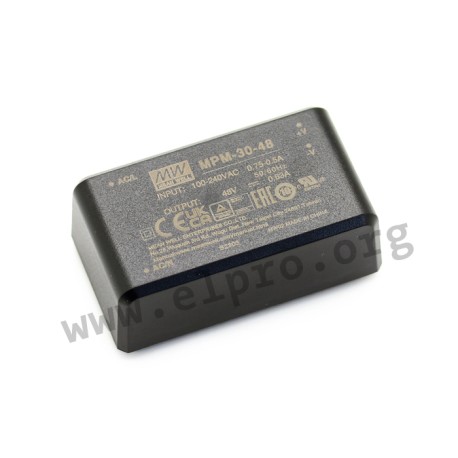

MPM-30-3.3, Mean Well switching power supplies, 30W, for medical technology, PCB, MPM-30 series

MPM-30-3.3

110721 MPM-30-3.3 MPM-30-3.3 4711287426631 Mean Well power supply series MPM-30. Switching power supplies in an enclosed housing (PCB) with 30W, screw terminals (MPM-30-_ST), insulation class II, a low no-load power and a universal input. These devices are suitable for medical applications and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for PCB mounting and comply with&nbsp;EN60601-1. We offer the following types of this Mean Well series:&nbsp;MPM-30-3.3, MPM-30-5, MPM-30-12, MPM-30-15, MPM-30-24, MPM-30-48, MPM-30-3.3ST, MPM-30-5ST, MPM-30-12ST, MPM-30-15ST, MPM-30-24ST and MPM-30-48ST. single output output: 19,8 to 31,2W input voltage: 80 to 264V AC (47 to 63Hz) maximal input inrush current: 45A no-load power: &lt;0,075W overload protection: 115 to 165% withstand voltage I/P-O/P: 4000V AC operating temperature: -40 to +85&deg;C weight MPM-30_: 102g weight MPM-30-_ST: 120g

Specifications

manufacturer
Manufacturer's name MPM-30-3.3
GTIN 4711287426631
Efficiency [%] 82,5
Output current range [A] 0...6
Output voltage tolerance: [%] 2
Output power [W] 19,8
Ripple [mVp-p] 80
Data Sheet

Unit price

16,29 €

Volume discounts

Quantity Unit price
50 + 15,39 €

Stock: 41
Further delivery:
CW 12/2025
