MPM-20-3.3

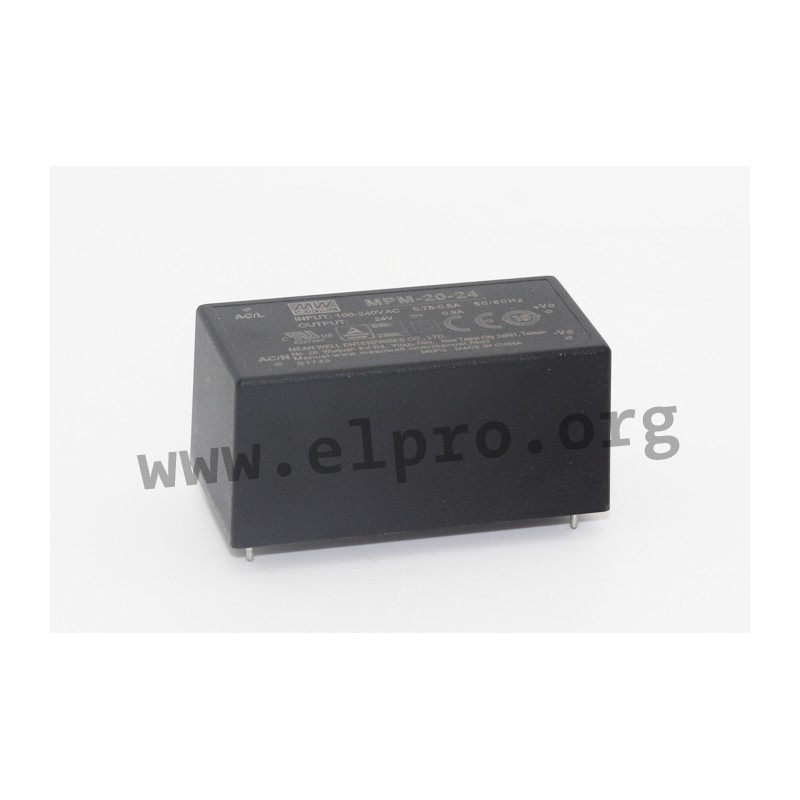

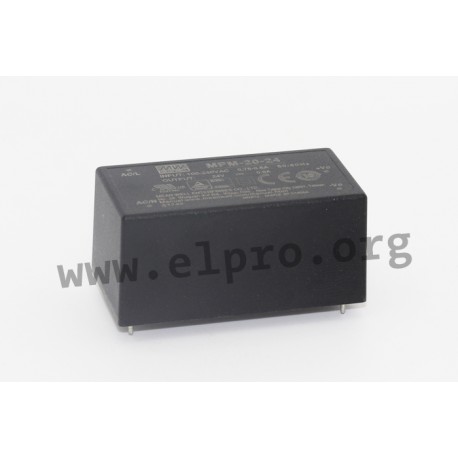

Mean Well power supply series MPM-20

Switching power supplies in an enclosed housing (PCB) with 20W, insulation class II, a low no-load power and a universal input. These devices are suitable for medical applications and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for PCB mounting and comply with EN55015, IEC60601-1, IEC60335-1 as well as EN60335-1. We offer the following types of this Mean Well series: MPM-20-3.3, MPM-20-5, MPM-20-12, MPM-20-15 and MPM-20-24.

  • single output
  • output: 14,9 to 21,6W
  • input voltage: 80 to 264V AC (47 to 440Hz)
  • maximal input inrush current: 45A
  • no-load power: <0,075W
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -35 to +85°C
  • weight: 56g
Mean Well MPM-20 series

MPM-20-3.3

111877 MPM-20-3.3 MPM-20-3.3 4711287426587 Mean Well power supply series&nbsp;MPM-20. Switching power supplies in an enclosed housing (PCB) with 20W,&nbsp;insulation class II, a low no-load power and a universal input. These devices are suitable for medical&nbsp;applications and are protected against overload (auto recovery), overtemperature, short&nbsp;circuit as well as overvoltage. They are suitable for PCB mounting and comply with&nbsp;EN55015, IEC60601-1, IEC60335-1 as well as EN60335-1. We offer the following types of this Mean Well series:&nbsp;MPM-20-3.3, MPM-20-5, MPM-20-12, MPM-20-15 and MPM-20-24. single output output: 14,9 to 21,6W input voltage: 80 to 264V AC (47 to 440Hz) maximal input inrush current: 45A no-load power: &lt;0,075W overload protection: 110 to 150% withstand voltage I/P-O/P: 4000V AC operating temperature: -35 to +85&deg;C weight: 56g

Specifications

manufacturer
Manufacturer's name MPM-20-3.3
GTIN 4711287426587
Output voltage [V] 3,3
Efficiency [%] 81
Output current range [A] 0...4,5
Output voltage tolerance: [%] 1,5
Output power [W] 14,9
Ripple [mVp-p] 150
Data Sheet
