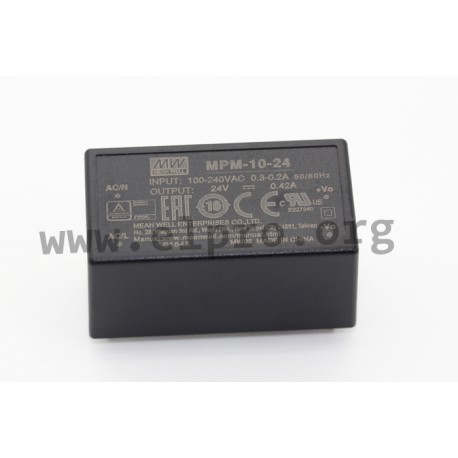

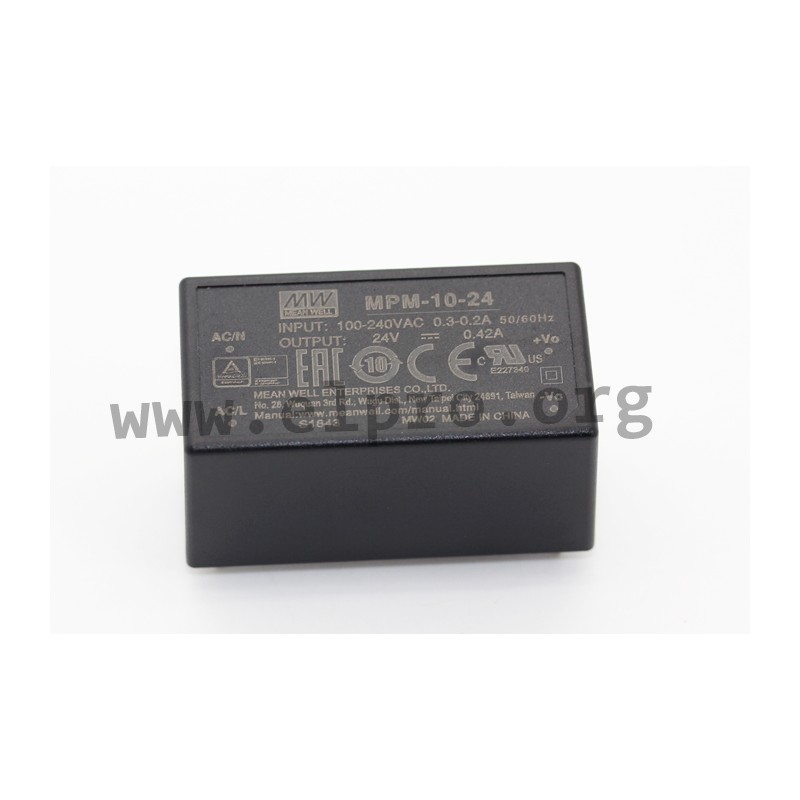

MPM-10-3.3

Mean Well power supply series MPM-10

Switching power supplies in an enclosed housing (PCB) with 10W, a universal input, a low no-load power and insulation class II. These devices are suitable for medical applications (2xMOPP) and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for PCB mounting and comply with EN60601-1. We offer the following types of this Mean Well series: MPM-10-3.3, MPM-10-5, MPM-10-12, MPM-10-15 and MPM-10-24.

  • single output
  • output: 8,3 to 10,2W
  • input voltage: 80 to 264V AC (47 to 440Hz)
  • maximal input inrush current: 45A
  • no-load power: <0,075W
  • overload protection: 110 to 180%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +85°C
  • weight: 35g
MPM-10-3.3, Mean Well switching power supplies, 10W, for medical technology, PCB, MPM-10 series

MPM-10-3.3

110716 MPM-10-3.3 MPM-10-3.3 4711287426488 Mean Well power supply series MPM-10. Switching power supplies in an enclosed housing (PCB) with 10W, a universal input, a low no-load power and insulation class II. These&nbsp;devices are suitable for medical&nbsp;applications (2xMOPP) and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for PCB&nbsp;mounting and comply with EN60601-1. We offer the following types of this Mean Well series:&nbsp;MPM-10-3.3, MPM-10-5, MPM-10-12, MPM-10-15 and MPM-10-24. single output output: 8,3 to 10,2W input voltage: 80 to 264V AC (47 to 440Hz) maximal input inrush current: 45A no-load power: &lt;0,075W overload protection: 110 to 180% withstand voltage I/P-O/P: 4000V AC operating temperature: -30 to +85&deg;C weight: 35g

Specifications

manufacturer
Manufacturer's name MPM-10-3.3
GTIN 4711287426488
Efficiency [%] 78
Output current range [A] 0...2,5
Output voltage tolerance: [%] 2,5
Output power [W] 8,3
Ripple [mVp-p] 120
Data Sheet

Unit price

9,09 €

Volume discounts

Quantity Unit price
50 + 8,59 €

Stock: 47
Further delivery:
CW 12/2025
