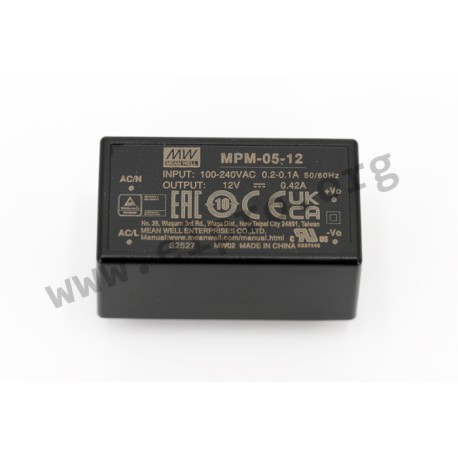

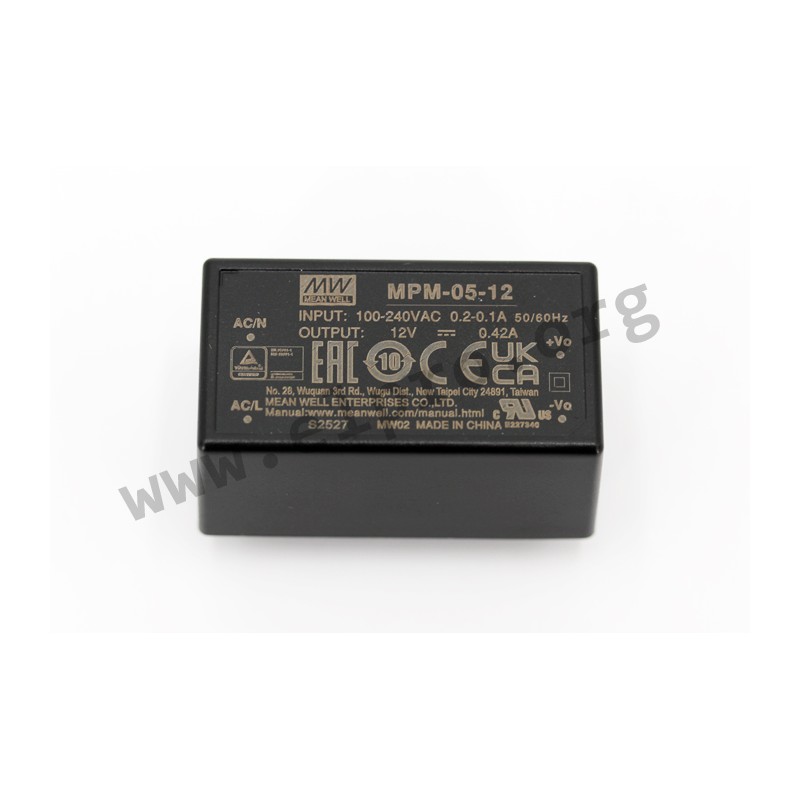

MPM-05-12

Mean Well power supply series MPM-05

Switching power supplies in an enclosed housing (PCB) with 5W, a universal input and insulation class II. These devices are suitable for medical applications (2xMOPP) and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a low no-load power and comply with EN60601-1. We offer the following types of this Mean Well series: MPM-05-3.3, MPM-05-5, MPM-05-12, MPM-05-15 and MPM-05-24.

  • single output
  • output: 4,1 to 5,5W
  • input voltage: 80 to 264V AC (47 to 440Hz)
  • no-load power: <0,075W
  • overload protection: 110 to 180%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +85°C
  • weight: 35g

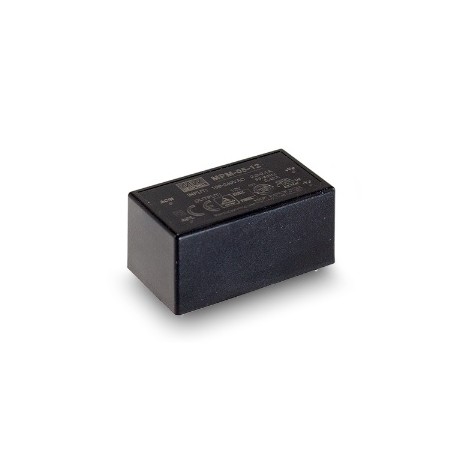

Meanwell MPM-05 series

MPM-05-12

110713 MPM-05-12 MPM-05-12 4711287426402 Mean Well power supply series MPM-05. Switching power supplies in an enclosed housing (PCB) with 5W, a universal input and insulation class II. These devices are suitable for medical applications (2xMOPP) and are&nbsp;protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a low no-load power and comply with&nbsp;EN60601-1. We offer the following types of this Mean Well series:&nbsp;MPM-05-3.3, MPM-05-5, MPM-05-12, MPM-05-15 and MPM-05-24. single output output: 4,1 to 5,5W input voltage: 80 to 264V AC (47 to 440Hz) no-load power: &lt;0,075W overload protection: 110 to 180% withstand voltage I/P-O/P: 4000V AC operating temperature: -40 to +85&deg;C weight: 35g

Specifications

manufacturer
Manufacturer's name MPM-05-12
GTIN 4711287426402
Output voltage [V] 12
Efficiency [%] 80
Output current range [A] 0...0,42
Output voltage tolerance: [%] 2,5
Output power [W] 5
Ripple [mVp-p] 150
Data Sheet

Unit price

7,39 €

Volume discounts

Quantity Unit price
50 + 6,89 €

Stock: 30
Next incoming goods:
CW 49/2024
180 units

Further delivery:
CW 12/2025
