MHB75-48S12

Mean Well DC/DC converter series MHB75

DC/DC converters in a Half-Brick metal housing (2,28"x2,4"x0,5") with 75W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices have an input voltage ratio of 2:1, a galvanic isolation of input/output and are protected against overvoltage, overtemperature, overcurrent as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A as well as EN55024. We offer the following types of this Mean Well series: MHB75-12S05, MHB75-12S12, MHB75-12S24, MHB75-24S05, MHB75-24S12, MHB75-24S24, MHB75-48S05, MHB75-48S12 and MHB75-48S24.

  • single output
  • output: 75W
  • overload protection: 110 to 150%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +100°C
  • weight: 92g

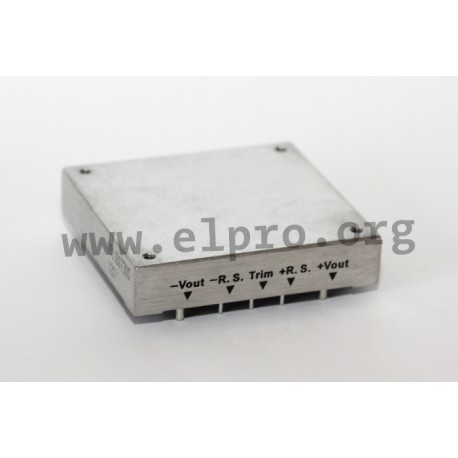

Meanwell MHB75 series

MHB75-48S12

36316 MHB75-48S12 MHB75-48S12 4711287472805 Mean Well DC/DC converter series MHB75. DC/DC converters in a Half-Brick metal housing (2,28"x2,4"x0,5") with 75W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices have an input voltage ratio of 2:1, a galvanic isolation of input/output and are protected against overvoltage, overtemperature, overcurrent as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A as well as EN55024. We offer the following types of this Mean Well series: MHB75-12S05, MHB75-12S12, MHB75-12S24, MHB75-24S05, MHB75-24S12, MHB75-24S24, MHB75-48S05, MHB75-48S12 and MHB75-48S24. single output output: 75W overload protection: 110 to 150% withstand voltage: 1500V DC operating temperature: -40 to +100°C weight: 92g

Specifications

manufacturer
Manufacturer's name MHB75-48S12
GTIN 4711287472805
Input voltage [V] 36...75
Output voltage [V] 12
Efficiency [%] 89
Output current range [A] 0...6,25
Ripple [mVp-p] 100
Data Sheet

Unit price

61,39 €

Volume discounts

Quantity Unit price
50 + 59,39 €

Stock: 0
Next incoming goods:
CW 18/2025
30 units

Further delivery:
CW 18/2025
