MHB150-48S05

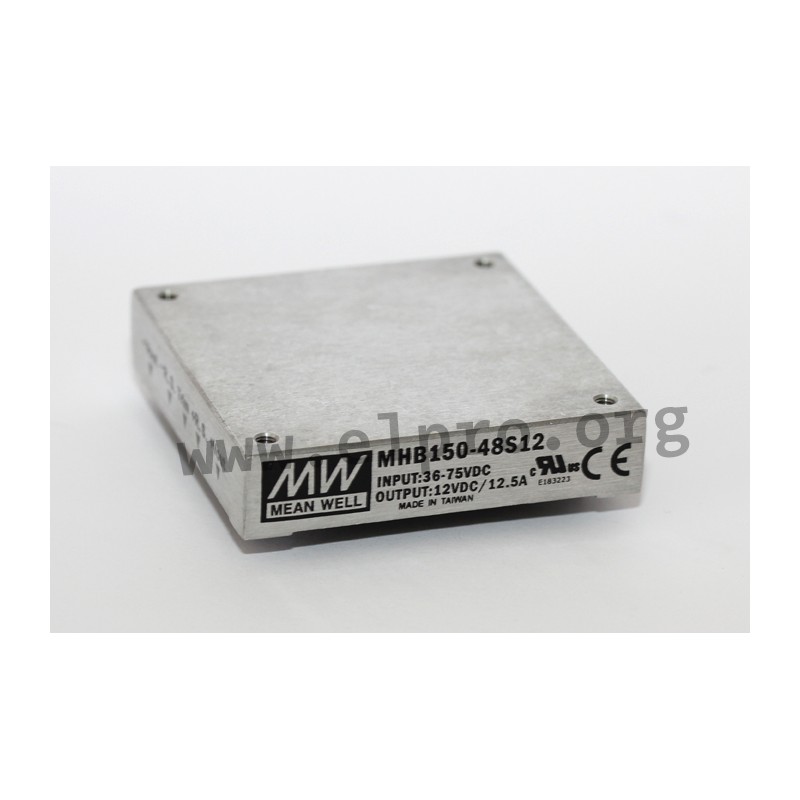

DC/DC-converter-modules MHB150 by Meanwell

• output: 150 W
• "half-brick" size (2,28" x 2,4" x 0,5")
• single output
• for direct PCB mounting
• DC decoupling of input and output
• built-in remote On/Off control
• input voltage ratio: 2:1
• built-in trimming output
• five-sided shield metal case
• short-circuit proof
• 110 to 140% over load protection
• input/output insulation 1500V DC
• operating temperature: -40 to +100°C
• by Mean Well
• weight: 100g

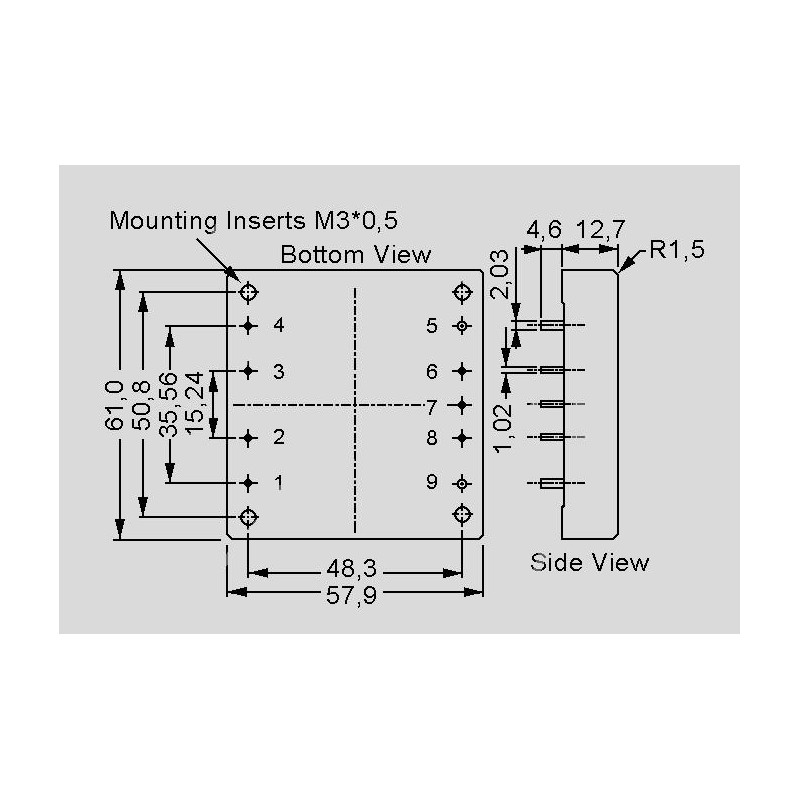

• pin assignment:
pin 1:+UIN
pin 2: R.C.
pin 3: Case
pin 4:  -UIN
pin 5: -UOUT
pin 6: -R.S.
pin 7: Trim
pin 8: +R.S.
pin 9: +UOUT

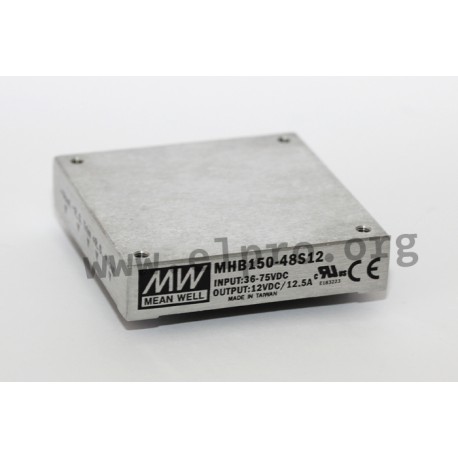

Meanwell MHB150 series

MHB150-48S05

36330 MHB150-48S05 MHB150-48S05 4711287472904 DC/DC-converter-modules MHB150 by Meanwell. • output: 150 W• "half-brick" size (2,28" x 2,4" x 0,5")• single output• for direct PCB mounting• DC decoupling of input and output• built-in remote On/Off control• input voltage ratio: 2:1• built-in trimming output• five-sided shield metal case• short-circuit proof• 110 to 140% over load protection• input/output insulation 1500V DC• operating temperature: -40 to +100°C• by Mean Well• weight: 100g• pin assignment:pin 1:+UINpin 2: R.C.pin 3: Casepin 4:  -UINpin 5: -UOUTpin 6: -R.S.pin 7: Trimpin 8: +R.S.pin 9: +UOUT

Specifications

manufacturer
Manufacturer's name MHB150-48S05
GTIN 4711287472904
Input voltage [V] 36...75
Output voltage [V] 5
Efficiency [%] 86
Output current range [A] 0...30
Ripple [mVp-p] 100
Data Sheet

Unit price

86,49 €

Stock: 0
Further delivery:
CW 18/2025
