MHB150-48S12

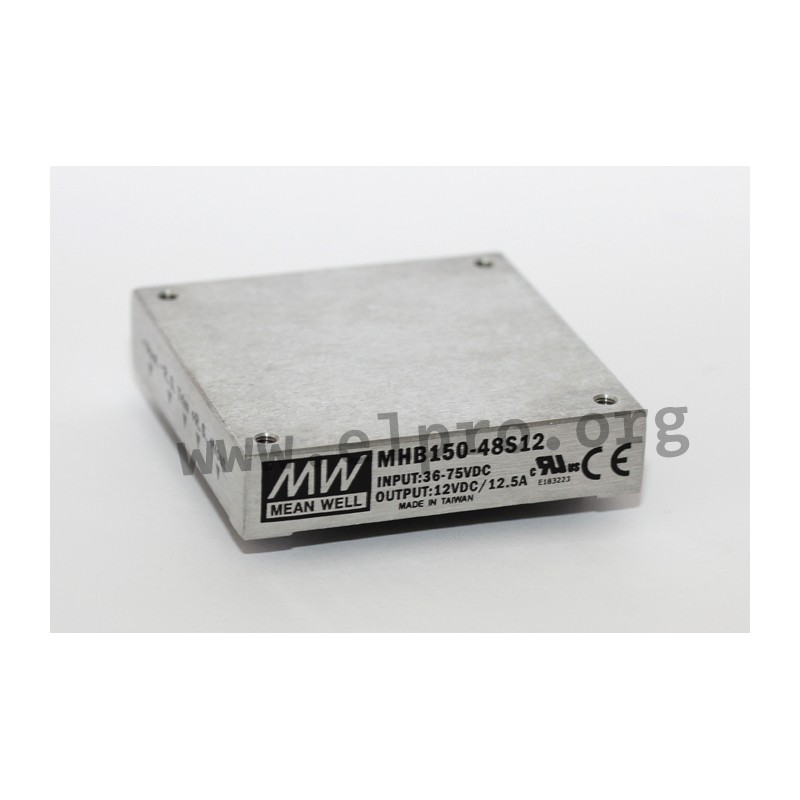

Mean Well DC/DC converter series MHB150

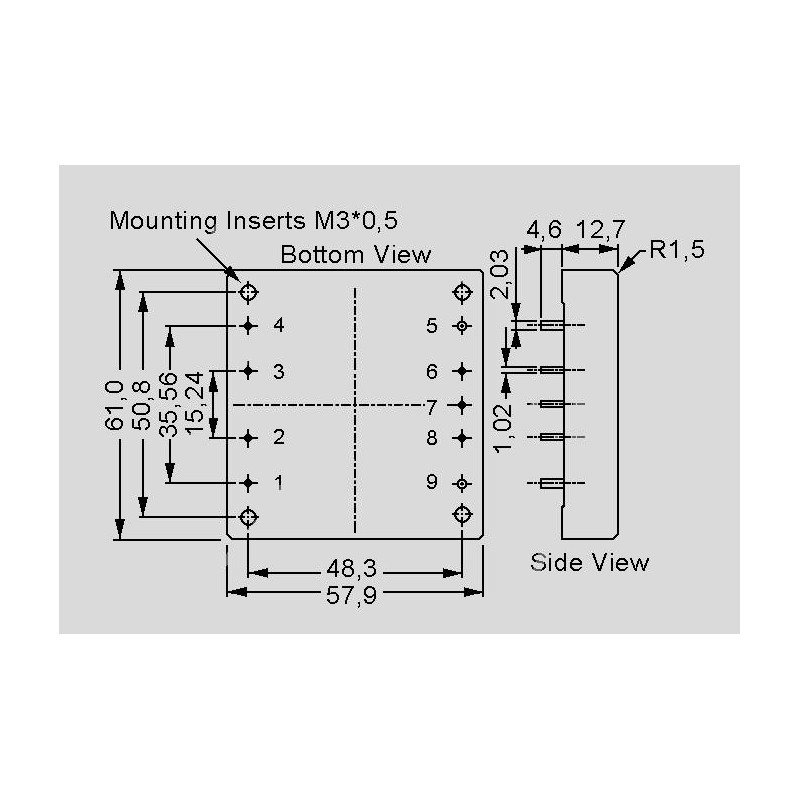

DC/DC converters in a half-brick metal housing (2,28"x2,4"x0,5") with 150W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices are suitable for PCB mounting and are protected against overvoltage, overtemperature, short circuit as well as overcurrent. They have an input voltage ratio of 2:1, a galvanic isolation of input/output and comply with EN55032 class A. We offer the following types of this Mean Well series: MHB150-48S12 and MHB150-48S24.

  • single output
  • output: 150W
  • overload protection: 110 to 140%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +100°C
  • weight: 100g

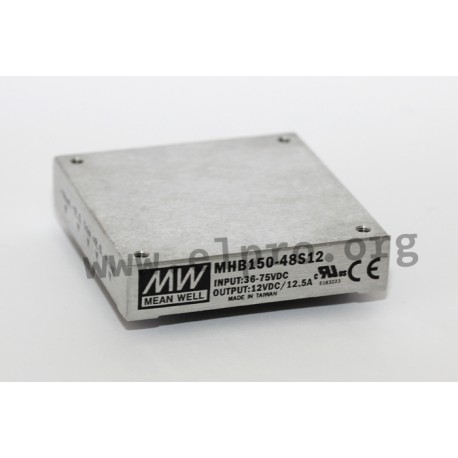

Meanwell MHB150 series

MHB150-48S12

36329 MHB150-48S12 MHB150-48S12 4711287472911 Mean Well DC/DC converter series MHB150. DC/DC converters in a half-brick metal housing (2,28"x2,4"x0,5") with 150W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices are suitable for PCB mounting and are protected against overvoltage, overtemperature, short circuit as well as overcurrent. They have an input voltage ratio of 2:1, a galvanic isolation of input/output and comply with EN55032 class A. We offer the following types of this Mean Well series: MHB150-48S12 and MHB150-48S24. single output output: 150W overload protection: 110 to 140% withstand voltage: 1500V DC operating temperature: -40 to +100°C weight: 100g

Specifications

manufacturer
Manufacturer's name MHB150-48S12
GTIN 4711287472911
Input voltage [V] 36...75
Output voltage [V] 12
Efficiency [%] 89
Output current range [A] 0...12,5
Ripple [mVp-p] 150
Data Sheet

Unit price

82,89 €

Volume discounts

Quantity Unit price
50 + 80,09 €

Stock: 10
Further delivery:
CW 22/2025
