MFM-30-3.3

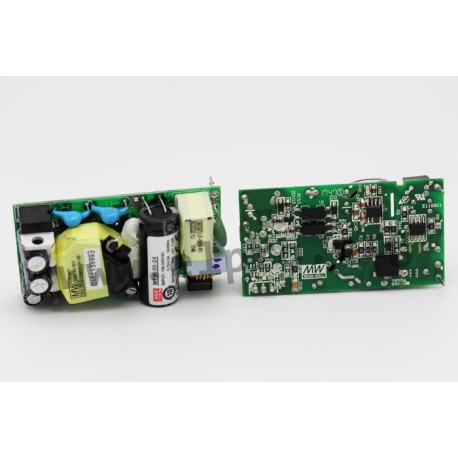

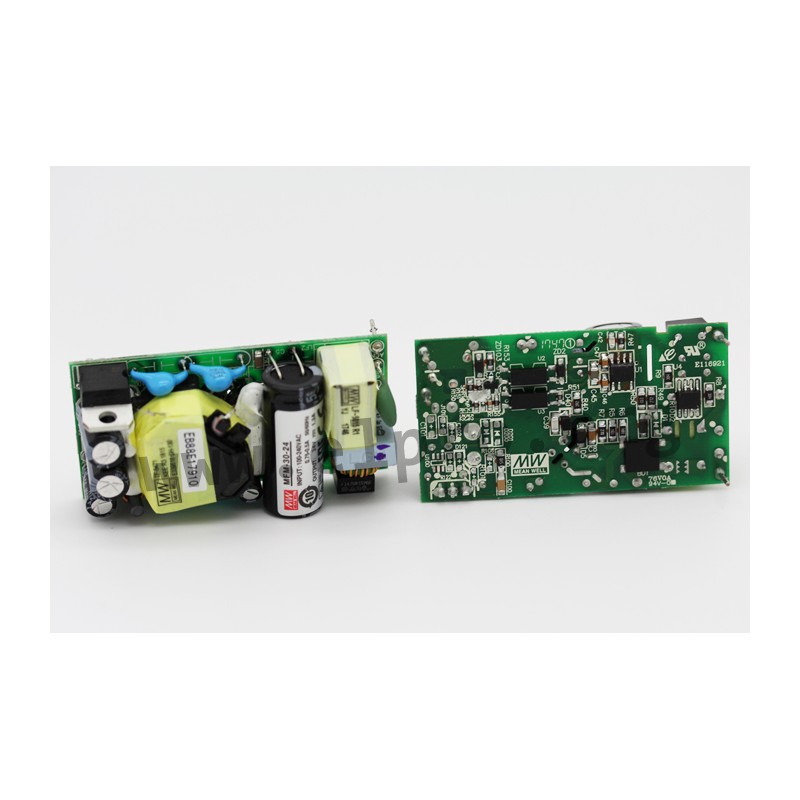

Mean Well power supply series MFM-30

Switching power supplies in an open frame type housing with 30W, a universal input, insulation class II and a low no-load power. These devices are suitable for medical applications and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN60601-1. We offer the following types of this Mean Well series: MFM-30-3.3, MFM-30-5, MFM-30-12, MFM-30-15, MFM-30-24 and MFM-30-48.

  • single output
  • output: 19,8 to 31,2W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 45A
  • no-load power: <0,075W
  • overload protection: 115 to 165%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +85°C
  • weight: 53g
Mean Well MFM-30 series

MFM-30-3.3

110705 MFM-30-3.3 MFM-30-3.3 4711287427232 Mean Well power supply series MFM-30. Switching power supplies in an open frame type housing with 30W, a universal input, insulation class II and a low no-load power. These devices are&nbsp;suitable for medical&nbsp;applications and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with&nbsp;EN60601-1. We offer the following types of this Mean Well series:&nbsp;MFM-30-3.3, MFM-30-5, MFM-30-12, MFM-30-15, MFM-30-24 and MFM-30-48. single output output: 19,8 to 31,2W input voltage: 80 to 264V AC (47 to 63Hz) maximal input inrush current: 45A no-load power: &lt;0,075W overload protection: 115 to 165% withstand voltage&nbsp;I/P-O/P: 4000V AC operating temperature: -40 to +85&deg;C weight: 53g

Specifications

manufacturer
Manufacturer's name MFM-30-3.3
GTIN 4711287427232
Efficiency [%] 82,5
Output current range [A] 0...6
Output voltage tolerance: [%] 2
Output power [W] 19,8
Ripple [mVp-p] 80
Data Sheet

Unit price

13,69 €

Volume discounts

Quantity Unit price
50 + 12,99 €

Stock: 46
Further delivery:
CW 12/2025
