MFM-15-12

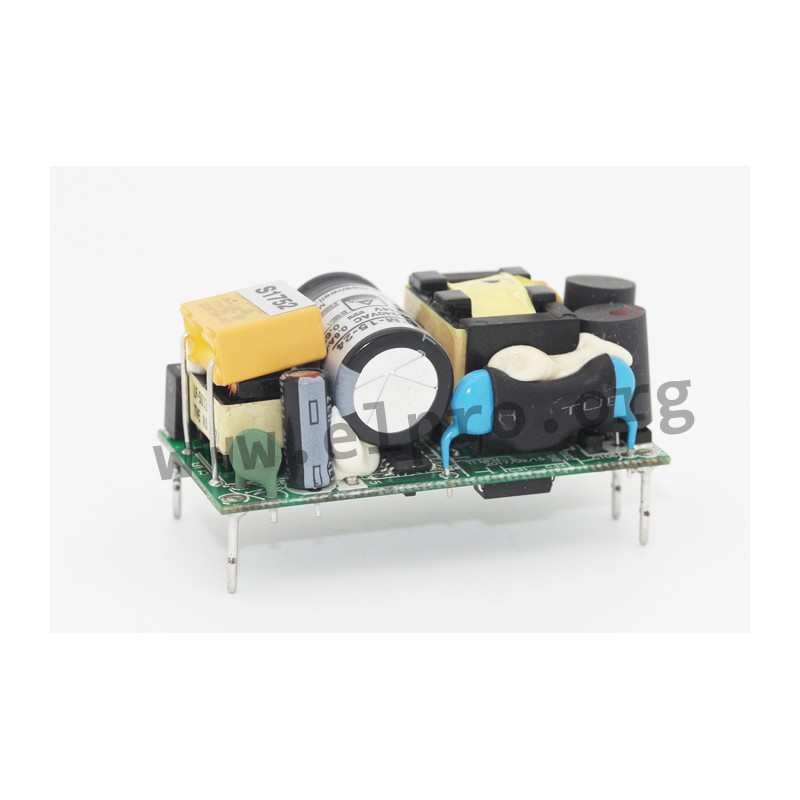

Mean Well power supply series MFM-15

Open frame type switching power supplies with 15W, insulation class II, a low no-load power and a universal input. These devices are suitable for medical technology applications and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with IEC/EN60601-1, IEC/EN60335-1 as well as EN55011 class B. We offer the following types of this Mean Well series: MFM-15-3.3, MFM-15-5, MFM-15-12, MFM-15-15 and MFM-15-24.

  • single output
  • output: 11,6 to 15,1W
  • input voltage: 80 to 264V AC (47 to 440Hz)
  • maximal input inrush current: 45A
  • no-load power: <0,075W
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -35 to +85°C
  • weight: 28g

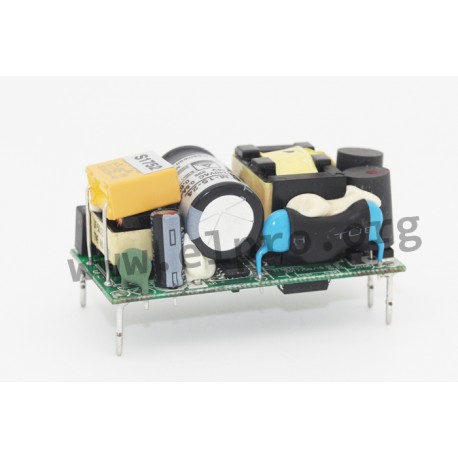

Mean Well MFM-15 series

MFM-15-12

111864 MFM-15-12 MFM-15-12 4711287427102 Mean Well power supply series MFM-15. Open frame type switching power supplies with 15W, insulation class II, a low no-load power and a universal input. These devices are suitable for medical technology applications and are protected against overload (auto recovery),&nbsp;overtemperature, overvoltage as well as short circuit. They are suitable for PCB mounting and&nbsp;comply with&nbsp;IEC/EN60601-1, IEC/EN60335-1 as well as EN55011 class B. We offer the following types of this Mean Well&nbsp;series:&nbsp;MFM-15-3.3, MFM-15-5, MFM-15-12, MFM-15-15 and MFM-15-24. single output output: 11,6 to 15,1W input voltage: 80 to 264V AC (47 to 440Hz) maximal input inrush current: 45A no-load power: &lt;0,075W overload protection: 110 to 150% withstand voltage I/P-O/P: 4000V AC operating temperature: -35 to +85&deg;C weight: 28g

Specifications

manufacturer
Manufacturer's name MFM-15-12
GTIN 4711287427102
Output voltage [V] 12
Efficiency [%] 86,5
Output current range [A] 0...1,25
Output voltage tolerance: [%] 1,5
Output power [W] 15
Ripple [mVp-p] 150
Data Sheet

Unit price

8,39 €

Volume discounts

Quantity Unit price
50 + 7,79 €

Stock: 153
Further delivery:
CW 12/2025
