MFM-10-12

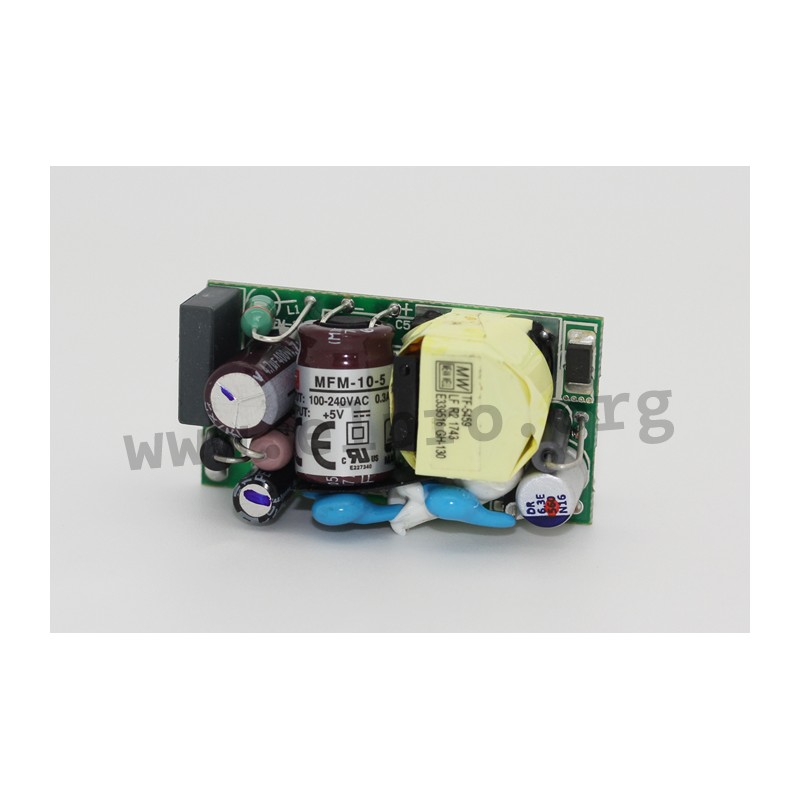

Mean Well power supply series MFM-10

Open frame type switching power supplies with 10W, insulation class II, a universal input and a low no-load power. These devices are suitable for medical technology and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN60601-1. We offer the following types of this Mean Well series: MFM-10-3.3, MFM-10-5, MFM-10-12, MFM-10-15 and MFM-10-24.

  • single output
  • output: 8,3 to 10,2W
  • input voltage: 80 to 264V AC (47 to 440Hz)
  • maximal input inrush current: 45A
  • no-load power: <0,075W
  • overload protection: 110 to 180%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +85°C
  • weight: 18g

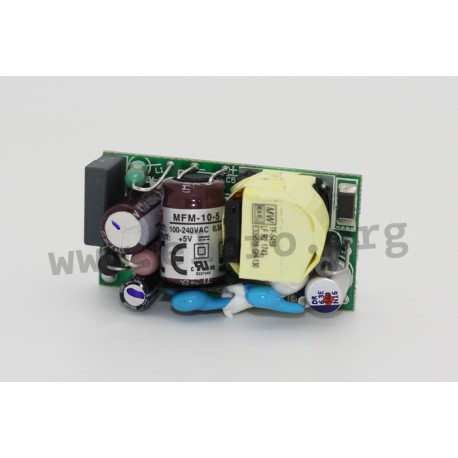

Meanwell MFM-10 series

MFM-10-12

110702 MFM-10-12 MFM-10-12 4711287427065 Mean Well power supply series MFM-10. Open frame type switching power supplies with 10W, insulation class II, a universal input and a low no-load power. These devices are suitable for medical technology and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are&nbsp;suitable for PCB mounting and comply with&nbsp;EN60601-1. We offer the following types of this Mean Well series:&nbsp;MFM-10-3.3, MFM-10-5, MFM-10-12, MFM-10-15 and MFM-10-24. single output output: 8,3 to 10,2W input voltage: 80 to 264V AC (47 to 440Hz) maximal input inrush current: 45A no-load power: &lt;0,075W overload protection: 110 to 180% withstand voltage I/P-O/P: 4000V AC&nbsp; operating temperature: -30 to +85&deg;C weight: 18g

Specifications

manufacturer
Manufacturer's name MFM-10-12
GTIN 4711287427065
Output voltage [V] 12
Efficiency [%] 83
Output current range [A] 0...0,85
Output voltage tolerance: [%] 2,5
Output power [W] 10,2
Ripple [mVp-p] 180
Data Sheet
