MFM-05-12

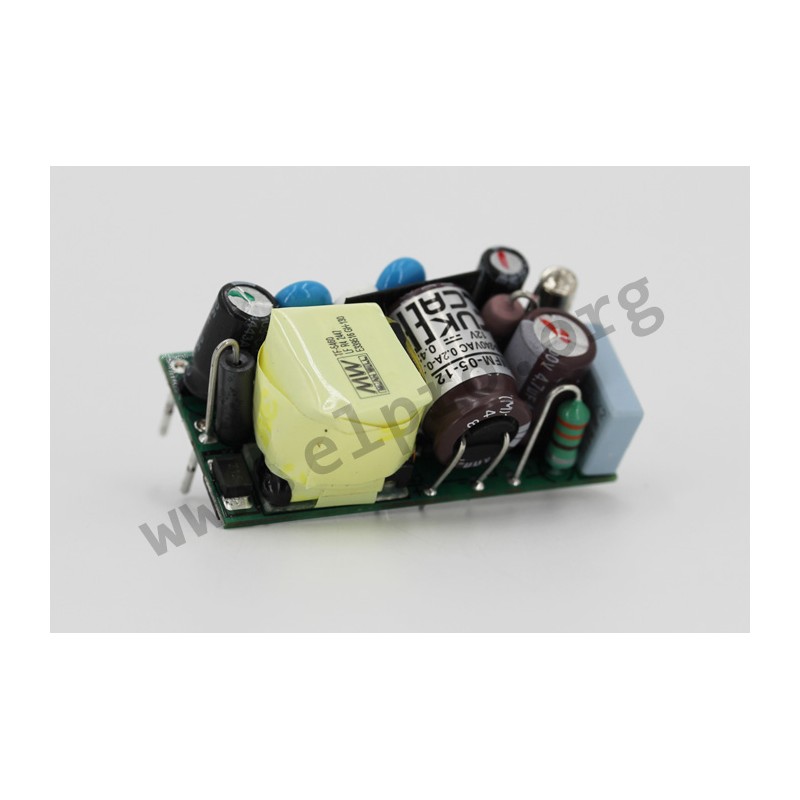

Mean Well power supply series MFM-05

Open frame type switching power supplies with 5W, a universal input, insulation class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for medical applications and comply with EN60601-1. We offer the following types of this Mean Well series: MFM-05-3.3, MFM-05-5, MFM-05-12, MFM-05-15 and MFM-05-24.

  • single output
  • output: 4,1 to 5,5W
  • input voltage: 80 to 264V AC (47 to 440Hz)
  • maximal input inrush current: 45A
  • no-load power: <0,075W
  • overload protection: 110 to 180%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +85°C
  • weight: 18g

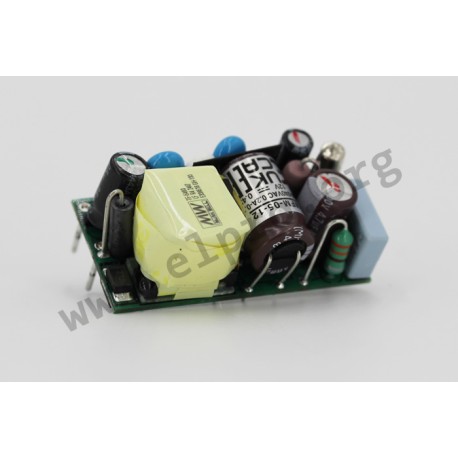

MFM-05-12, Mean Well switching power supplies, 5W, for medical technology, open frame (PCB), MFM-05 series

MFM-05-12

110697 MFM-05-12 MFM-05-12 4711287427003 Mean Well power supply series MFM-05. Open frame type switching power supplies with 5W, a universal input, insulation class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for medical applications and comply with EN60601-1. We offer the following types of this Mean Well series: MFM-05-3.3, MFM-05-5, MFM-05-12, MFM-05-15 and MFM-05-24. single output output: 4,1 to 5,5W input voltage: 80 to 264V AC (47 to 440Hz) maximal input inrush current: 45A no-load power: &lt;0,075W overload protection: 110 to 180% withstand voltage I/P-O/P: 4000V AC  operating temperature: -40 to +85°C weight: 18g

Specifications

manufacturer
Manufacturer's name MFM-05-12
GTIN 4711287427003
Output voltage [V] 12
Efficiency [%] 80
Output current range [A] 0...0,42
Output voltage tolerance: [%] 2,5
Output power [W] 5
Ripple [mVp-p] 150
Data Sheet

Unit price

6,19 €

Volume discounts

Quantity Unit price
50 + 5,59 €

Stock: 0
Next incoming goods:
CW 03/2025
495 units

Further delivery:
CW 12/2025
