> Power supplies>Power supplies>Desktop switching power supplies>Mean Well external switching power supplies, 30W, for medical technology, MES30A series>MES30A-2P1J

Manufacturers

MES30A-2P1J

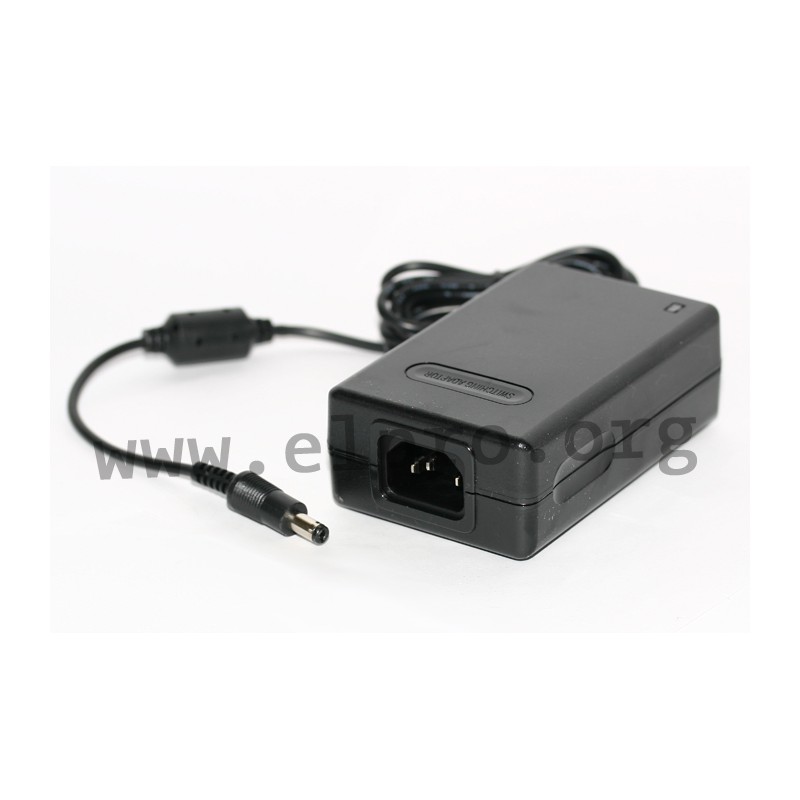

Mean Well desktop power supply series MES30

Desktop switching power supplies in a plastic housing with 30W, a universal input, insulation class I and an LED indicator for power on. These devices are suitable for medical technology applications (MOPP level), are protected against overload, overtemperature, short circuit as well as overvoltage and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the type MES30A-2P1J of this Mean Well series.

  • single output
  • output: 30W
  • input voltage: 90 to 264V AC (47 to 63Hz), 135 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <300µA (earth) / <60µA (touch)
  • overload protection: 112 to 250%
  • operating temperature: 0 to +65°C
  • input plug: C14 (EN60320-1)
  • output plug: 2,1x5,5mm
  • dimensions: 108x67x36mm
  • weight: 300g

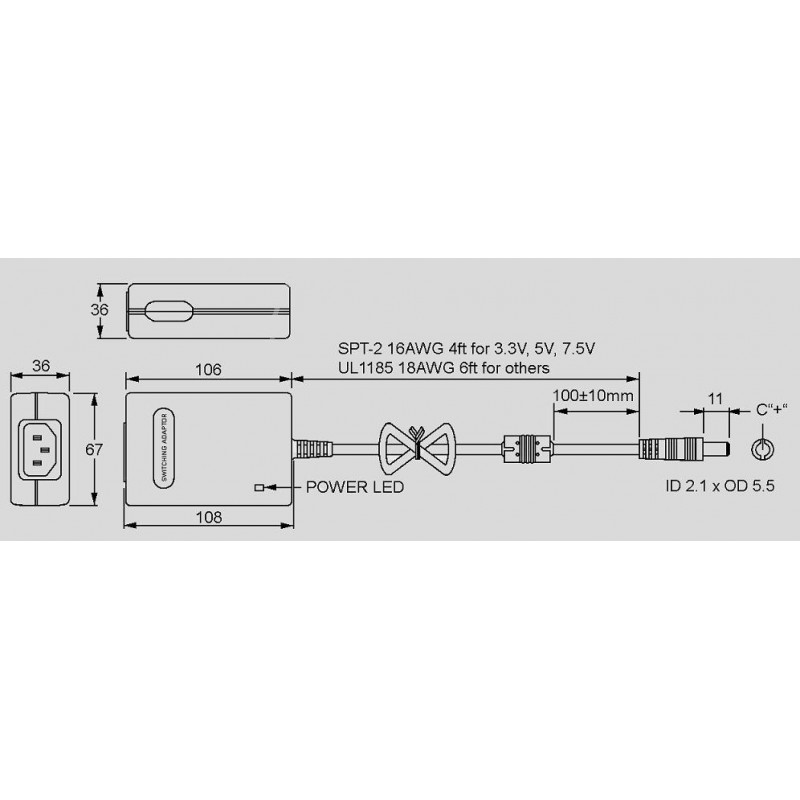

dimensions

MES30A-2P1J

33395 MES30A-2P1J MES30A-2P1J Mean Well desktop power supply series MES30. Desktop switching power supplies in a plastic housing with 30W, a universal input, insulation class I and an LED indicator for power on. These devices are suitable for medical technology applications (MOPP level), are protected against overload, overtemperature, short circuit as well as&nbsp;overvoltage and comply with&nbsp;EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the type&nbsp;MES30A-2P1J of this Mean Well series. single output output: 30W input voltage: 90 to 264V AC (47 to 63Hz), 135 to 370V DC maximal input inrush current: 35A leakage current: &lt;300&micro;A (earth) / &lt;60&micro;A (touch) overload protection: 112 to 250% operating temperature: 0 to +65&deg;C input plug: C14 (EN60320-1) output plug: 2,1x5,5mm dimensions: 108x67x36mm weight: 300g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name MES30A-2P1J
Output voltage [V] 9
Phase 2 phase
Efficiency [%] 74
Output current range [A] 0...3,33
Output voltage tolerance: [%] 4
Output power [W] 30
Ripple [mV] 50
Data Sheet

Unit price

32,19 €

Stock: 9
