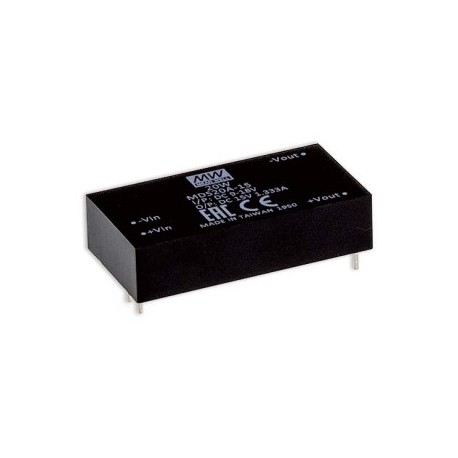

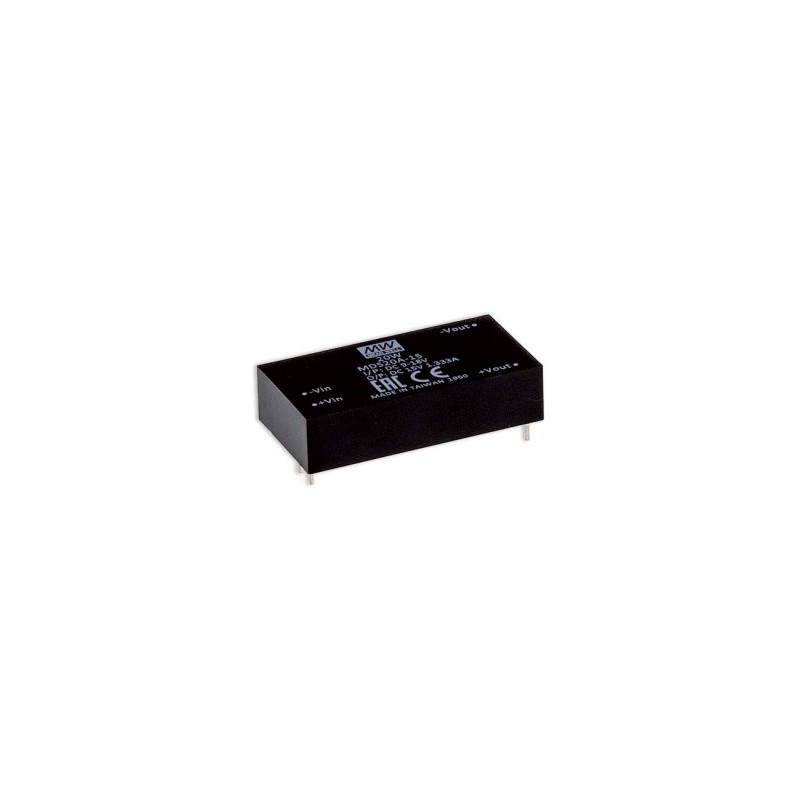

MDS20C-24

Mean Well DC/DC converter series MDS20

Converter modules in a 2x1 inch DIL housing with 20W and an input voltage ratio of 2:1. These devices have a low leakage current of less than 5µA, do not require a minimum load, are protected against overload (auto recovery) and short circuit (continuous) as well as suitable for direct PCB mounting. Furthermore, they are suitable for medical applications (2xMOPP) and comply with IEC60601-1 as well as EN55011 class A. We offer the following types of this Mean Well series: MDS20A-05, MDS20A-12, MDS20A-15, MDS20A-24, MDS20B-05, MDS20B-12, MDS20B-15, MDS20B-24, MDS20C-05, MDS20C-12, MDS20C-15 and MDS20C-24.

  • single output
  • output: 20W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 60mVpp
  • withstand voltage: 4000V DC
  • operating temperature: -40 to +90°C
  • dimensions: 50,8x25,4x12mm
  • Gewicht: 30g
MDS20C-24, Mean Well DC/DC converters, 20W, 2"x1", for medical technology, MDS20 series

MDS20C-24

235249 MDS20C-24 MDS20C-24 4711287472744 Mean Well DC/DC converter series MDS20. Converter modules in a 2x1 inch DIL housing with 20W and an input voltage ratio of 2:1. These devices have a low leakage current of less than 5µA, do not require a minimum load, are protected against overload (auto recovery) and short circuit (continuous) as well as suitable for direct PCB mounting. Furthermore, they are suitable for medical applications (2xMOPP) and comply with IEC60601-1 as well as EN55011 class A. We offer the following types of this Mean Well series: MDS20A-05, MDS20A-12, MDS20A-15, MDS20A-24, MDS20B-05, MDS20B-12, MDS20B-15, MDS20B-24, MDS20C-05, MDS20C-12, MDS20C-15 and MDS20C-24. single output output: 20W output voltage tolerance: ±5% maximal ripple and noise: 60mVpp withstand voltage: 4000V DC operating temperature: -40 to +90°C dimensions: 50,8x25,4x12mm Gewicht: 30g

Specifications

manufacturer
Manufacturer's name MDS20C-24
GTIN 4711287472744
Output voltage [V] 24
Input voltage range [V] 36...75
Efficiency [%] 86
Output current [mA] 833
Data Sheet

Unit price

31,89 €

Volume discounts

Quantity Unit price
50 + 29,69 €

Stock: 5
Further delivery:
CW 22/2025
