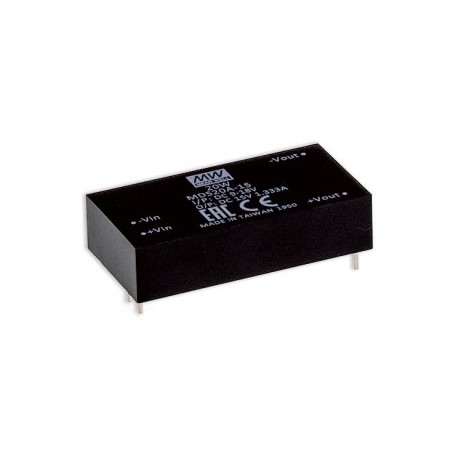

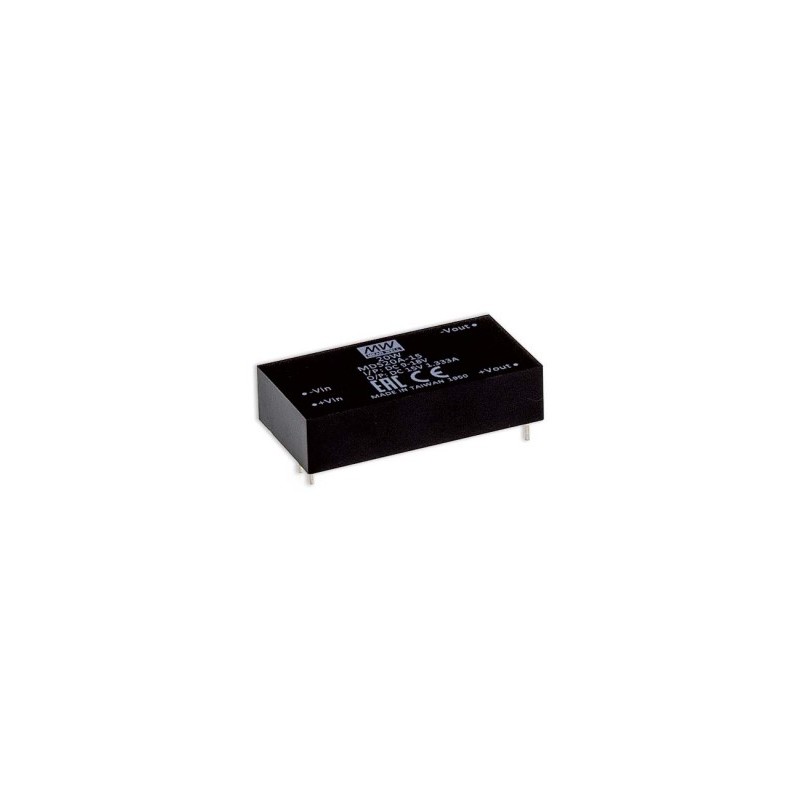

MDS20A-24

Mean Well DC/DC converter series MDS20

Converter modules in a 2x1 inch DIL housing with 20W and an input voltage ratio of 2:1. These devices have a low leakage current of less than 5µA, do not require a minimum load, are protected against overload (auto recovery) and short circuit (continuous) as well as suitable for direct PCB mounting. Furthermore, they are suitable for medical applications (2xMOPP) and comply with IEC60601-1 as well as EN55011 class A. We offer the following types of this Mean Well series: MDS20A-05, MDS20A-12, MDS20A-15, MDS20A-24, MDS20B-05, MDS20B-12, MDS20B-15, MDS20B-24, MDS20C-05, MDS20C-12, MDS20C-15 and MDS20C-24.

  • single output
  • output: 20W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 60mVpp
  • withstand voltage: 4000V DC
  • operating temperature: -40 to +90°C
  • dimensions: 50,8x25,4x12mm
  • Gewicht: 30g
MDS20A-24, Mean Well DC/DC converters, 20W, 2"x1", for medical technology, MDS20 series

MDS20A-24

235241 MDS20A-24 MDS20A-24 4711287472669 Mean Well DC/DC converter series MDS20. Converter modules in a 2x1 inch DIL housing with 20W and an input voltage ratio of 2:1. These devices have a low leakage current of less than 5µA, do not require a minimum load, are protected against overload (auto recovery) and short circuit (continuous) as well as suitable for direct PCB mounting. Furthermore, they are suitable for medical applications (2xMOPP) and comply with IEC60601-1 as well as EN55011 class A. We offer the following types of this Mean Well series: MDS20A-05, MDS20A-12, MDS20A-15, MDS20A-24, MDS20B-05, MDS20B-12, MDS20B-15, MDS20B-24, MDS20C-05, MDS20C-12, MDS20C-15 and MDS20C-24. single output output: 20W output voltage tolerance: ±5% maximal ripple and noise: 60mVpp withstand voltage: 4000V DC operating temperature: -40 to +90°C dimensions: 50,8x25,4x12mm Gewicht: 30g

Specifications

manufacturer
Manufacturer's name MDS20A-24
GTIN 4711287472669
Output voltage [V] 24
Input voltage range [V] 9...18
Efficiency [%] 88
Output current [mA] 833
Data Sheet

Unit price

31,89 €

Volume discounts

Quantity Unit price
50 + 29,69 €

Stock: 11
Further delivery:
CW 22/2025
