MDS03F-15

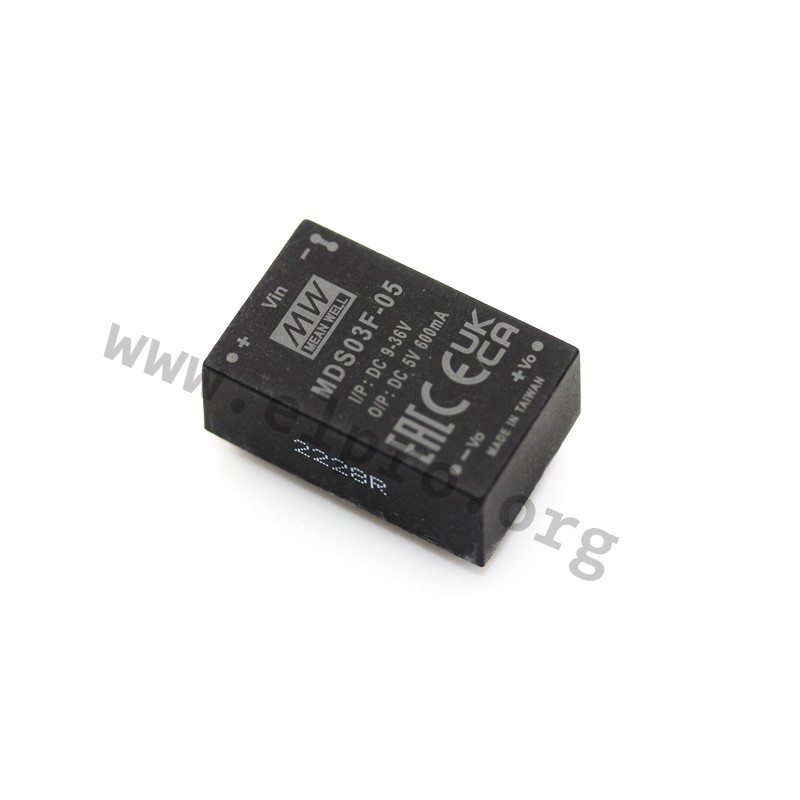

Mean Well DC/DC converter series MDS03 and MDD03

DC/DC converters in a DIL24 housing with 3W and a low leakage current (<5µA). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload as well as short circuit (continuous). They have a fanless design, are suitable for PCB mounting and comply with EN55032 class B as well as IEC60601-1. We offer the following types of this Mean Well series: MDS03F-05, MDS03F-12, MDS03F-15, MDS03G-05, MDS03G-12, MDS03G-15, MDD03F-05, MDD03F-12, MDD03F-15, MDD03G-05, MDD03G-12 and MDD03G-15.

  • single (MDS03_) and dual output (MDD03_)
  • output: 3W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 150mVpp
  • withstand voltage: 6000V DC
  • operating temperature: -40 to +90°C
  • weight: 17g

MDS03F-15

241369 MDS03F-15 MDS03F-15 4711287472294 Mean Well DC/DC converter series MDS03 and MDD03. DC/DC converters in a DIL24 housing with 3W and a low leakage current (&lt;5µA). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload as well as short circuit (continuous). They have a fanless design, are suitable for PCB mounting and comply with EN55032 class B as well as IEC60601-1. We offer the following types of this Mean Well series: MDS03F-05, MDS03F-12, MDS03F-15, MDS03G-05, MDS03G-12, MDS03G-15, MDD03F-05, MDD03F-12, MDD03F-15, MDD03G-05, MDD03G-12 and MDD03G-15. single (MDS03_) and dual output (MDD03_) output: 3W output voltage tolerance: ±5% maximal ripple and noise: 150mVpp withstand voltage: 6000V DC operating temperature: -40 to +90°C weight: 17g

Specifications

manufacturer
Manufacturer's name MDS03F-15
GTIN 4711287472294
Output voltage [V] 15
Input voltage range [V] 9...36
Efficiency [%] 80
Output current [A] 0,2
Data Sheet

Unit price

12,79 €

Volume discounts

Quantity Unit price
50 + 11,99 €

Stock: 21
Further delivery:
CW 22/2025
