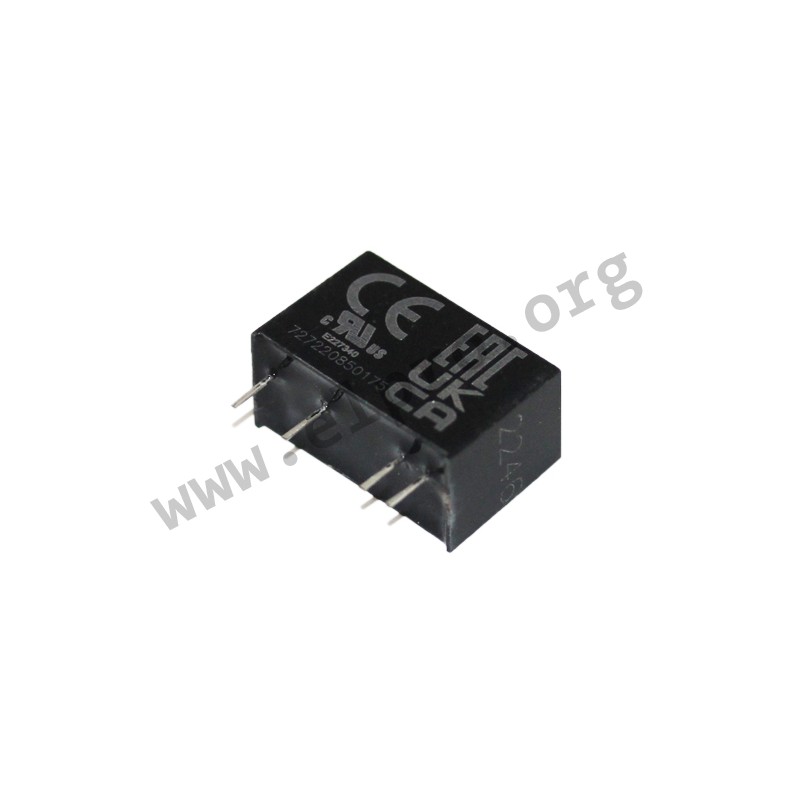

MDS01N-15

Mean Well DC/DC converter series MDS01

Unregulated DC/DC converters in a SIL7 housing with 1W and a low patient leakage current (<2µA). These low-cost devices are suitable for medical technology applications (1xMOPP/2xMOPP) and are protected against short circuit (max. 3s). They have a high efficiency (up to 82%) and are suitable for direct PCB mounting. We offer the following types of this Mean Well series: MDS01L-03, MDS01L-05, MDS01L-12, MDS01L-15, MDS01M-05, MDS01M-12, MDS01M-15, MDS01N-05, MDS01N-12 and MDS01N-15.

  • single output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 6000/4200V DC
  • operating temperature: -40 to +85°C
  • weight: 4,2g

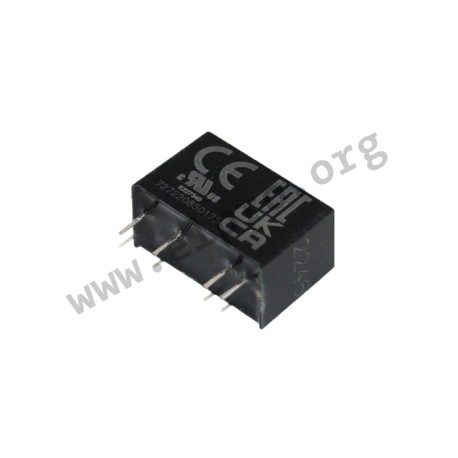

MDS01N-15, Mean Well DC/DC converters, 1W, SIL7 housing, for medical technology, MDS01 series

MDS01N-15

110328 MDS01N-15 MDS01N-15 4711287471938 Mean Well DC/DC converter series MDS01. Unregulated DC/DC converters in a SIL7 housing with 1W and a low patient leakage current (&lt;2µA). These low-cost devices are suitable for medical technology applications (1xMOPP/2xMOPP) and are protected against short circuit (max. 3s). They have a high efficiency (up to 82%) and are suitable for direct PCB mounting. We offer the following types of this Mean Well series: MDS01L-03, MDS01L-05, MDS01L-12, MDS01L-15, MDS01M-05, MDS01M-12, MDS01M-15, MDS01N-05, MDS01N-12 and MDS01N-15. single output output: 1W output voltage tolerance: ±5% maximal ripple and noise: 75mVpp withstand voltage: 6000/4200V DC operating temperature: -40 to +85°C weight: 4,2g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name MDS01N-15
GTIN 4711287471938
Input voltage [V] 21,6...26,4
Output voltage [V] 15
Output current range [mA] 7...67
Efficiency [%] 79
Data Sheet

Unit price

4,99 €

Stock: 22
