MDR-20 15V 1,34A

Mean Well DIN rail power supply series MDR-20

Switching power supplies with 20W, a universal input, screw terminals (touch guard), an LED indicator for power on, a DC OK signal and a low no-load power. These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MDR-20-5, MDR-20-12, MDR-20-15 and MDR-12-24.

  • single output
  • output: 15 to 24W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <1mA
  • output voltage adjustment: ±10%
  • no-load power: <0,75W
  • overload protection: 105 to 160%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 190g

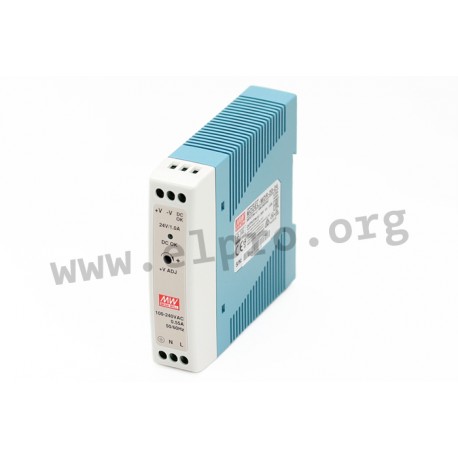

MDR-20-15, Mean Well DIN rail switching power supplies, 20W, MDR-20 series

MDR-20 15V 1,34A

34074 MDR-20 15V 1,34A MDR-20-15 MDR-20-15 Mean Well DIN rail power supply series MDR-20. Switching power supplies with 20W, a universal input, screw terminals (touch guard), an LED indicator for power on, a DC OK signal and a low no-load power. These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MDR-20-5, MDR-20-12, MDR-20-15 and MDR-12-24. single output output: 15 to 24W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A leakage current: &lt;1mA output voltage adjustment: ±10% no-load power: &lt;0,75W overload protection: 105 to 160% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 190g

Specifications

manufacturer
Manufacturer's name MDR-20-15
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 81
Output current range [A] 0...1,34
Output voltage tolerance: [%] 1
Output power [W] 20
Ripple [mVp-p] 120
Data Sheet

Unit price

11,19 €

Volume discounts

Quantity Unit price
50 + 10,49 €

Stock: 54
Next incoming goods:
CW 17/2025
216 units

Further delivery:
CW 17/2025
