MDR-100 12V 7,5A

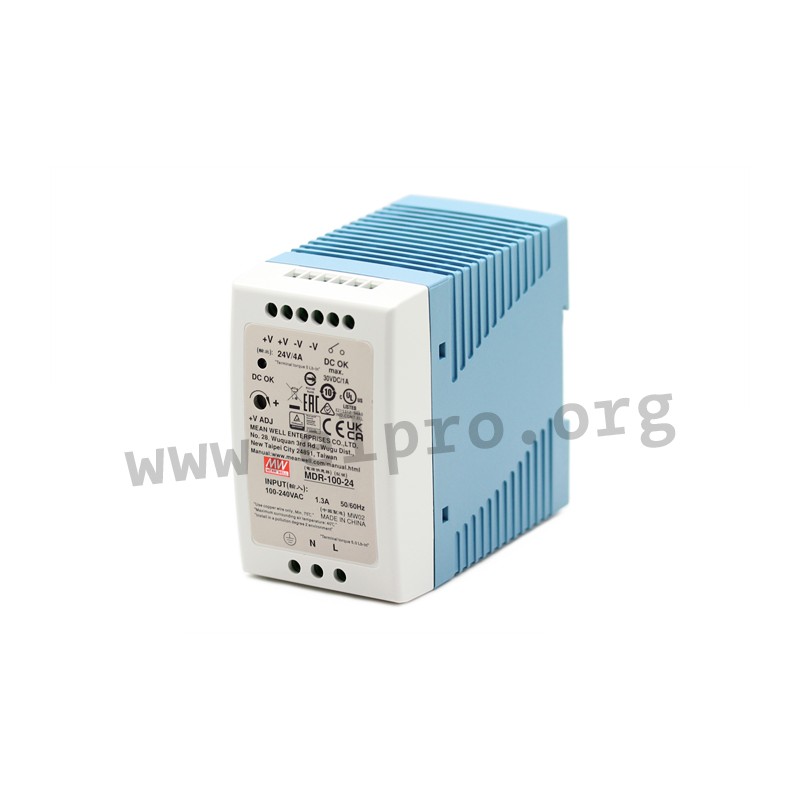

Mean Well DIN rail power supply series MDR-100

Switching power supplies in an enclosed housing with 100W, a DC OK relay contact, a universal input, a low no-load power, an LED indicator for power on and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MDR-100-12, MDR-100-24 and MDR-100-48.

  • single output
  • output: 90 to 96W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <1mA
  • output voltage adjustment: +20%
  • no-load power: <1W
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 420g

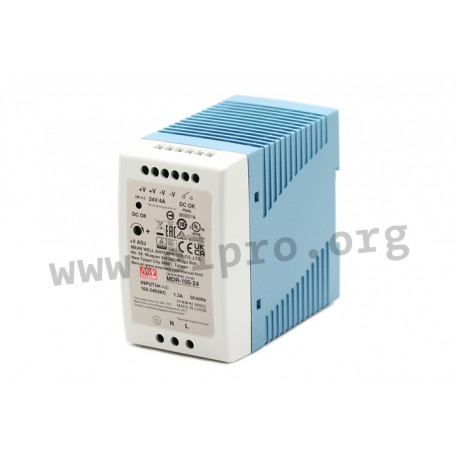

MDR-100-12, Mean Well DIN rail switching power supplies, 100W, MDR-100 series

MDR-100 12V 7,5A

29357 MDR-100 12V 7,5A MDR-100-12 MDR-100-12 Mean Well DIN rail power supply series MDR-100. Switching power supplies in an enclosed housing with 100W, a DC OK relay contact, a universal input, a low no-load power, an LED indicator for power on and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MDR-100-12, MDR-100-24 and MDR-100-48. single output output: 90 to 96W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 60A leakage current: &lt;1mA output voltage adjustment: +20% no-load power: &lt;1W overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC  withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 420g

Specifications

manufacturer
Manufacturer's name MDR-100-12
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 85
Output current range [A] 0...7,5
Output voltage tolerance: [%] 1
Output power [W] 90
Ripple [mVp-p] 120
Data Sheet

Unit price

28,09 €

Volume discounts

Quantity Unit price
50 + 26,29 €

Stock: 428
Next incoming goods:
CW 03/2025
210 units

Further delivery:
CW 09/2025
