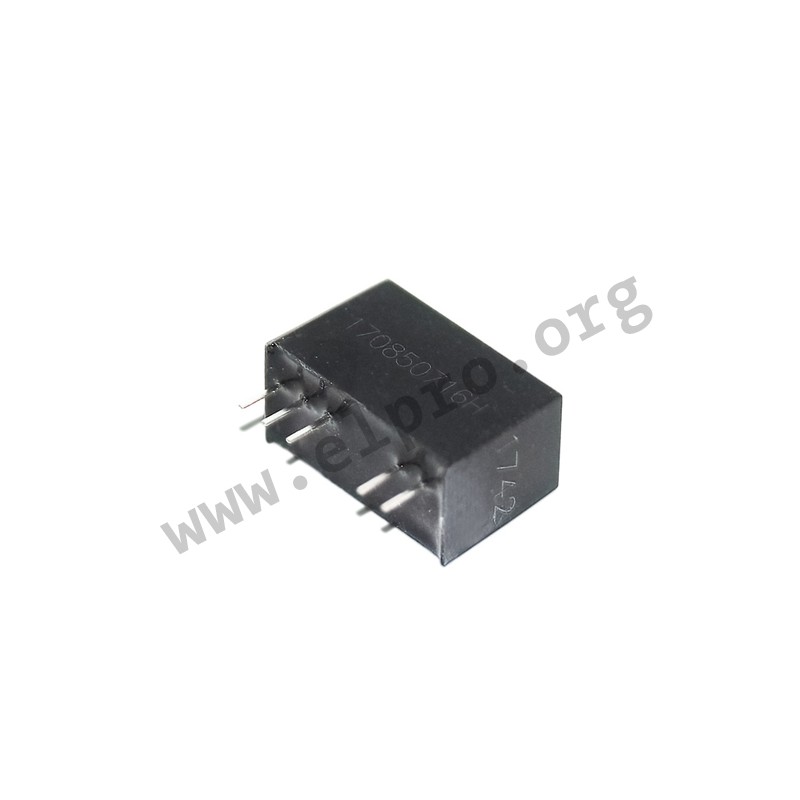

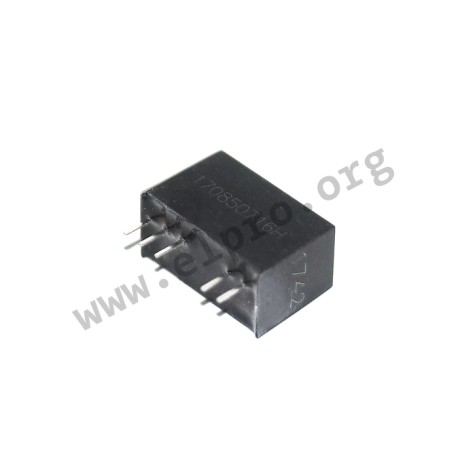

MDD02N-12

Mean Well DC/DC converter series MDD02

Unregulated DC/DC converters in a SIL7 housing with 2W, a high efficiency (up to 83%) and a low patient leakage current (<2µA). These devices are suitable for medical technology applications (1xMOPP/2xMOOP) and are protected against short circuit (max. 3s). They are reasonably priced and comply with EN60601-1, EN55011 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: MDD02L-05, MDD02L-09, MDD02L-12, MDD02L-15, MDD02M-05, MDD02M-09, MDD02M-12, MDD02M-15, MDD02N-05, MDD02N-09, MDD02N-12 and MDD02N-15.

  • dual output
  • output: 2W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 6000/4200V DC
  • operating temperature: -40 to +85°C
  • weight: 4,2g
MDD02N-12, Mean Well DC/DC converters, 2W, SIL7 housing, for medical technology, MDD02 series

MDD02N-12

110360 MDD02N-12 MDD02N-12 4711287472164 Mean Well DC/DC converter series MDD02. Unregulated DC/DC converters in a SIL7 housing with 2W, a high efficiency (up to 83%) and a low patient leakage current (&lt;2µA). These devices are suitable for medical technology applications (1xMOPP/2xMOOP) and are protected against short circuit (max. 3s). They are reasonably priced and comply with EN60601-1, EN55011 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: MDD02L-05, MDD02L-09, MDD02L-12, MDD02L-15, MDD02M-05, MDD02M-09, MDD02M-12, MDD02M-15, MDD02N-05, MDD02N-09, MDD02N-12 and MDD02N-15. dual output output: 2W output voltage tolerance: ±5% maximal ripple and noise: 75mVpp withstand voltage: 6000/4200V DC operating temperature: -40 to +85°C weight: 4,2g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name MDD02N-12
GTIN 4711287472164
Input voltage [V] 21,6...26,4
Output voltage [V] ±12
Output current range [mA] ±9...83
Efficiency [%] 82
Data Sheet

Unit price

5,29 €

Stock: 22
