MDD01N-05

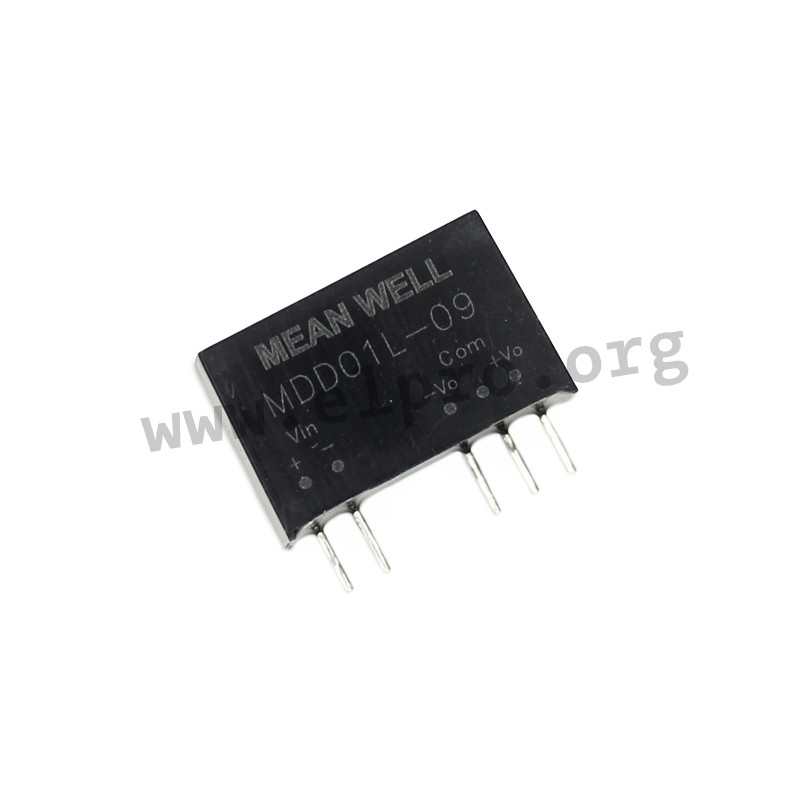

Mean Well DC/DC converter series MDD01

Unregulated DC/DC converters in a SIL7 housing with 1W and a low patient leakage current (<2µA). These devices are suitable for medical technology applications (1xMOPP/2xMOPP) and are protected against short circuit (max. 3s). They have a high efficiency (up to 82%), are reasonably priced and comply with UL60601-1, EN55011 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: MDD01L-05, MDD01L-09, MDD01L-12, MDD01L-15, MDD01M-05, MDD01M-09, MDD01M-12, MDD01M-15, MDD01N-05, MDD01N-09, MDD01N-12 and MDD01N-15.

  • dual output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 6000/4200V DC
  • operating temperature: -40 to +85°C
  • weight: 4,2g
MDD01N-05, Mean Well DC/DC converters, 1W, SIL7 housing, for medical technology, MDD01 series

MDD01N-05

110337 MDD01N-05 MDD01N-05 4711287472027 Mean Well DC/DC converter series MDD01. Unregulated DC/DC converters in a SIL7 housing with 1W and a low patient leakage current (&lt;2µA). These devices are suitable for medical technology applications (1xMOPP/2xMOPP) and are protected against short circuit (max. 3s). They have a high efficiency (up to 82%), are reasonably priced and comply with UL60601-1, EN55011 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: MDD01L-05, MDD01L-09, MDD01L-12, MDD01L-15, MDD01M-05, MDD01M-09, MDD01M-12, MDD01M-15, MDD01N-05, MDD01N-09, MDD01N-12 and MDD01N-15. dual output output: 1W output voltage tolerance: ±5% maximal ripple and noise: 75mVpp withstand voltage: 6000/4200V DC operating temperature: -40 to +85°C weight: 4,2g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name MDD01N-05
GTIN 4711287472027
Input voltage [V] 21,6...26,4
Output voltage [V] ±5
Output current range [mA] ±10...100
Efficiency [%] 77
Data Sheet

Unit price

4,99 €

Stock: 24
