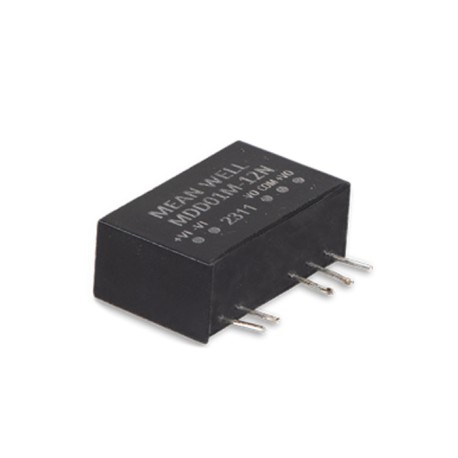

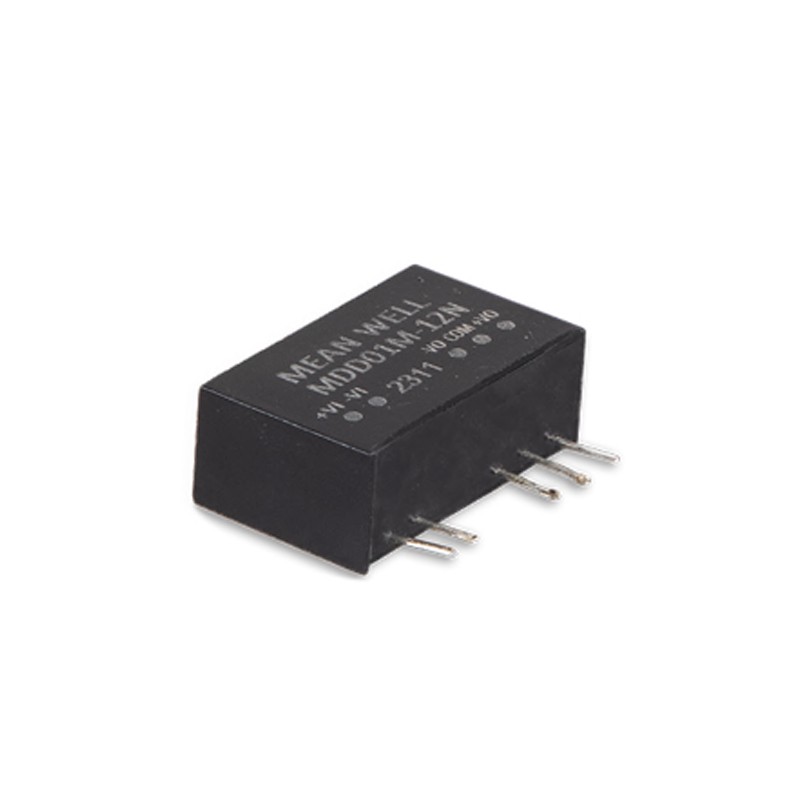

MDD01L-12N

Mean Well DC/DC converter series MDD01-N

Unregulated DC/DC converters in a SIP7 housing with 2W, a high I/O isolation (6KVDC) and a low patient leakage current (<2µA). These devices are low in cost, suitable for medical technology applications (1xMOPP/2xMOOP), and are protected against short circuit. We offer the following types of this Mean Well series: MDD01L-05N, MDD01L-12N, MDD01L-15N, MDD01M-05N, MDD01M-12N, MDD01M-15N, MDD01N-05N, MDD01N-12N, and MDD01N-15N.

  • dual output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 6000V DC
  • operating temperature: -40 to +95°C
  • weight: 2,8g
  • dimensions: 19,7x7,1x11,5mm
MDD01L-12N, Mean Well DC/DC converters, 2W, SIP/SIL7 housing, for medical technology, MDD01-N series

MDD01L-12N

246682 MDD01L-12N MDD01L-12N Mean Well DC/DC converter series MDD01-N. Unregulated DC/DC converters in a SIP7 housing with 2W, a high I/O isolation (6KVDC) and a low patient leakage current (&lt;2µA). These devices are low in cost, suitable for medical technology applications (1xMOPP/2xMOOP), and are protected against short circuit. We offer the following types of this Mean Well series: MDD01L-05N, MDD01L-12N, MDD01L-15N, MDD01M-05N, MDD01M-12N, MDD01M-15N, MDD01N-05N, MDD01N-12N, and MDD01N-15N. dual output output: 1W output voltage tolerance: ±5% maximal ripple and noise: 100mVpp withstand voltage: 6000V DC operating temperature: -40 to +95°C weight: 2,8g dimensions: 19,7x7,1x11,5mm

Specifications

manufacturer
Manufacturer's name MDD01L-12N
Output voltage [V] ±12
Input voltage range [V] 4,5...5,5
Output current [mA] ±42
Efficiency [%] 81
Data Sheet

Unit price

4,59 €

Stock: 24
