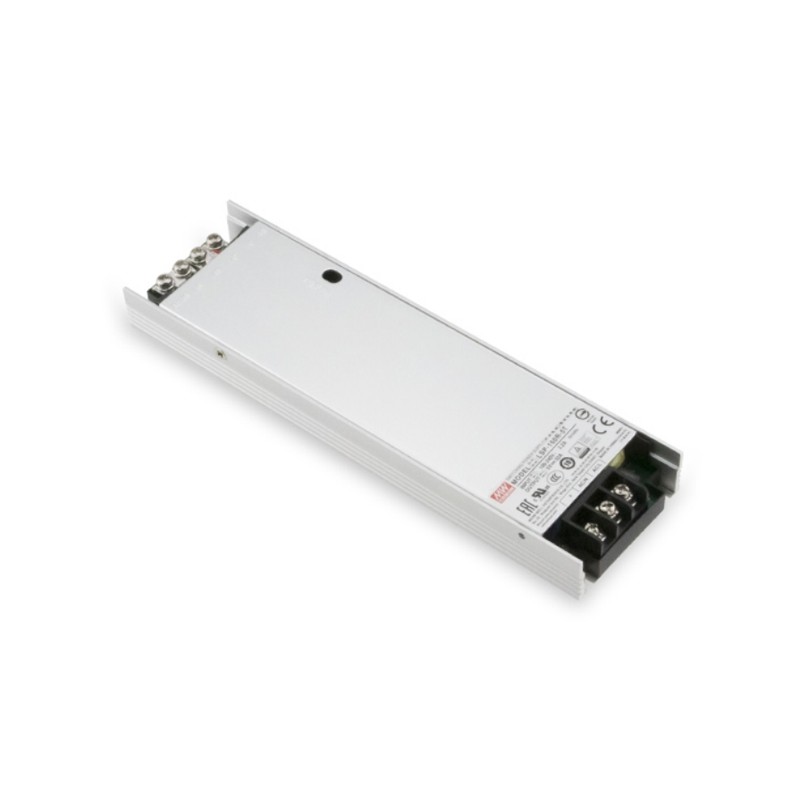

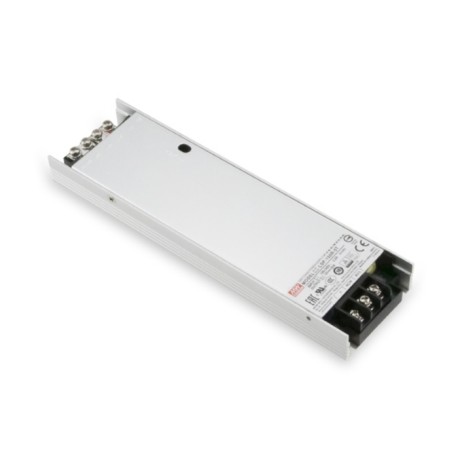

LSP-160R-5W

Mean Well power supply series LSP-160

Switching power supplies in a U-bracket housing with 160W, a wafer connector, an LED indicator for power on and a DC OK signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature. They are suitable for operating altitudes of up to 5000m and comply with EN62368-1, EN55032 class B, EN55014 as well as EN61000-3-2. We offer the following types of this Mean Well series: LSP-160-3.3W, LSP-160-4.2W, LSP-160-5W, LSP-160-12W, LSP-160-24W, LSP-160-36W, LSP-160-48W, LSP-160R-3.3W, LSP-160R-4.2W and LSP-160R-5W.

  • single output
  • output: 105,6 to 162W
  • input voltage: 100 to 295V AC (47 to 63Hz), 141 to 370V DC
  • maximal input inrush current: 85A
  • leakage current: <0,75mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 356g
LSP-160R-5W, Mean Well switching power supplies, 160W, U-bracket, wafer connector, LSP-160 series

LSP-160R-5W

244452 LSP-160R-5W LSP-160R-5W Mean Well power supply series LSP-160. Switching power supplies in a U-bracket housing with 160W, a wafer connector, an LED indicator for power on and a DC OK signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature. They are suitable for operating altitudes of up to 5000m and comply with EN62368-1, EN55032 class B, EN55014 as well as EN61000-3-2. We offer the following types of this Mean Well series: LSP-160-3.3W, LSP-160-4.2W, LSP-160-5W, LSP-160-12W, LSP-160-24W, LSP-160-36W, LSP-160-48W, LSP-160R-3.3W, LSP-160R-4.2W and LSP-160R-5W. single output output: 105,6 to 162W input voltage: 100 to 295V AC (47 to 63Hz), 141 to 370V DC maximal input inrush current: 85A leakage current: &lt;0,75mA overload protection: 110 to 140% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70°C weight: 356g

Specifications

manufacturer
Manufacturer's name LSP-160R-5W
Output voltage [V] 5
Efficiency [%] 89,5
Output current [A] 32
Output voltage tolerance: [%] ±2
Output power [W] 160
Ripple [mVp-p] 200
Data Sheet

Unit price

44,79 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 520 units or
multiples of 520.
