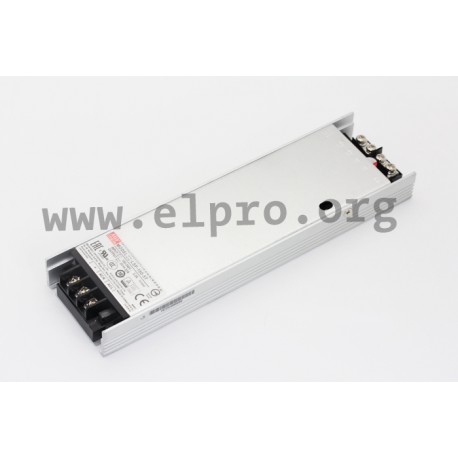

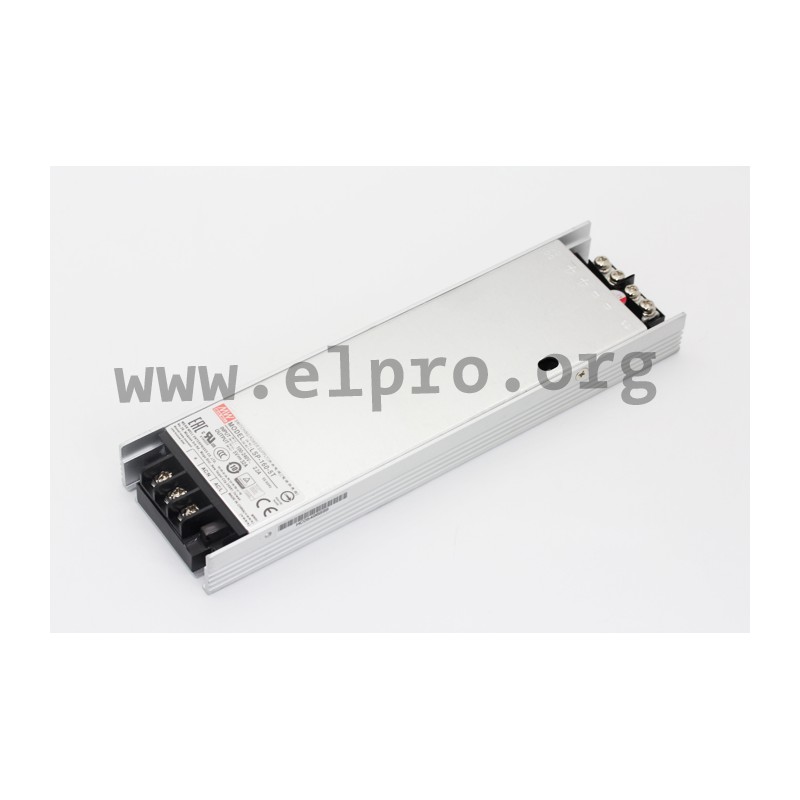

LSP-160-24T

Mean Well power supply series LSP-160

Switching power supplies in an enclosed case (U-bracket) with 160W, a wide range input, a screw clamp connection and an LED display for operation only. These devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suited for an operating altitude of up to 5000m and comply with EN62368, EN55032 class B, EN55014 as well as EN61000-3-2. We offer the versions LSP-160R-3.3T, LSP-160R-4.2T and LSP-160R-5T with a DC-OK signal and a parallel function for redundant operations as well as the types LSP-160-3.3T, LSP-160-4.2T, LSP-160-5T, LSP-160-12T, LSP-160-24T, LSP-160-36T and LSP-160-48T of this Mean Well series.

  • single output
  • output: 105,6 to 163,2W
  • input voltage: 100 to 295V AC (47 to 63Hz), 141 to 370V DC
  • maximal input inrush current: 85A
  • maximal leakage current: <0,75mA
  • overload protection: 110 bis 140%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage: O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 356g
LSP-160-24T, Mean Well switching power supplies, 160W, U-bracket, LSP-160 series

LSP-160-24T

235191 LSP-160-24T LSP-160-24T 4711232760636 Mean Well power supply series&nbsp;LSP-160. Switching power supplies in an enclosed case (U-bracket) with 160W, a wide range input, a screw clamp connection and an LED display for operation only. These devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suited for an operating altitude of up to 5000m and comply with&nbsp;EN62368, EN55032 class B, EN55014 as well as EN61000-3-2. We offer the&nbsp;versions&nbsp;LSP-160R-3.3T, LSP-160R-4.2T and LSP-160R-5T with a DC-OK signal and a parallel function for redundant operations as well as the types&nbsp;LSP-160-3.3T, LSP-160-4.2T, LSP-160-5T, LSP-160-12T, LSP-160-24T, LSP-160-36T and LSP-160-48T of this Mean Well series. single output output: 105,6 to 163,2W input voltage: 100 to 295V AC (47 to 63Hz), 141 to 370V DC maximal input inrush current: 85A maximal leakage current: &lt;0,75mA overload protection: 110 bis 140% withstand voltage&nbsp;I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage: O/P-FG: 1250V AC operating temperature: -30 to +70&deg;C weight: 356g

Specifications

manufacturer
Manufacturer's name LSP-160-24T
GTIN 4711232760636
Output voltage [V] 24
Efficiency [%] 93,5
Output current [A] 6,75
Output voltage tolerance: [%] ±1
Output power [W] 162
Ripple [mVp-p] 240
