LRS-75-48

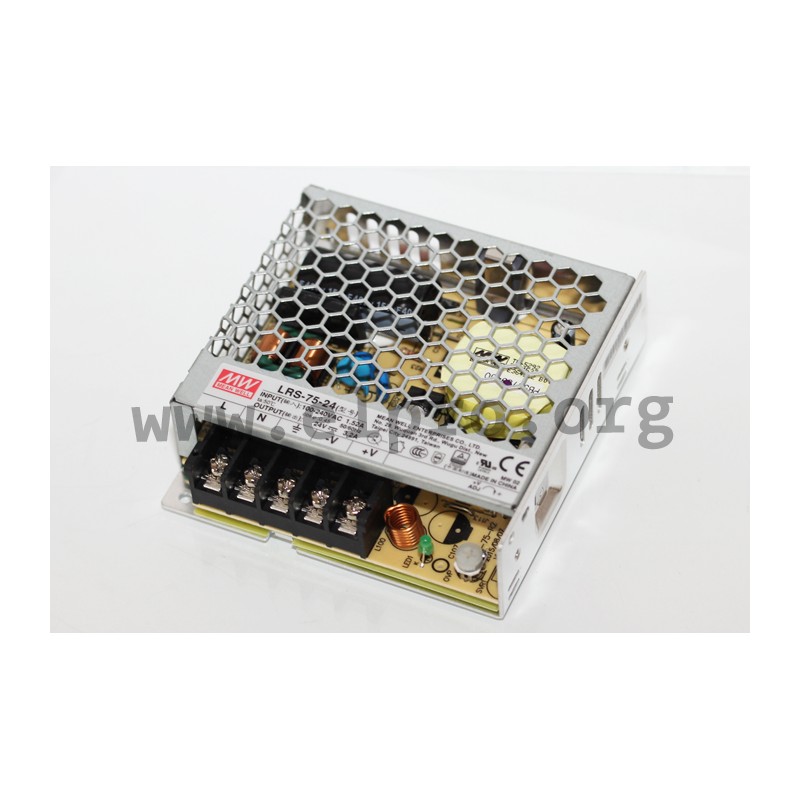

Mean Well power supply series LRS-75

Switching power supplies in an enclosed housing with 75W, a low profile, screw terminals and a universal input. These devices have a low no-load power and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LRS-75-5, LRS-75-12, LRS-75-15, LRS-75-24, LRS-75-36 and LRS-75-48.

  • single output
  • output: 70 to 76,8W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC
  • maximal input inrush current: 65A
  • leakage current: <0,75mA
  • output voltage adjustment: ±10%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 300g

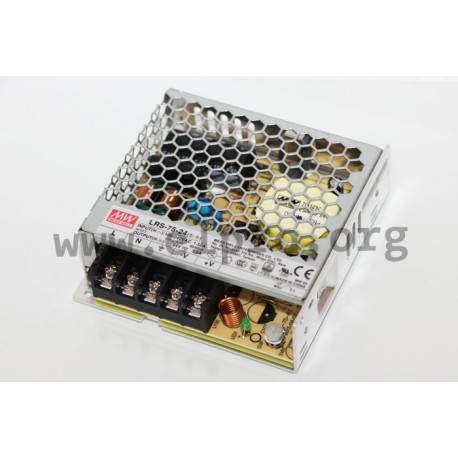

Mean Well LRS-75 series

LRS-75-48

104490 LRS-75-48 LRS-75-48 4711287434674 Mean Well power supply series&nbsp;LRS-75. Switching power supplies in an enclosed housing with 75W, a low profile, screw&nbsp;terminals and a&nbsp;universal input. These devices have a low no-load power and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an&nbsp;operating altitude of up to 5000m and comply with&nbsp;EN62368-1 as well as EN55032 class B. We offer the&nbsp;following types of this Mean Well series:&nbsp;LRS-75-5, LRS-75-12, LRS-75-15, LRS-75-24, LRS-75-36 and LRS-75-48. single output output: 70 to 76,8W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC maximal input inrush current: 65A leakage current: &lt;0,75mA output voltage adjustment:&nbsp;&plusmn;10% overload protection: 110 to 150% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage&nbsp;O/P-FG: 1250V AC operating temperature: -30 to +70&deg;C weight: 300g

Specifications

manufacturer
Manufacturer's name LRS-75-48
GTIN 4711287434674
Output voltage [V] 48
Efficiency [%] 91,5
Output current range [A] 0...1,6
Output voltage tolerance: [%] 1
Output power [W] 76,8
Ripple [mVp-p] 200
Data Sheet

Unit price

12,09 €

Volume discounts

Quantity Unit price
50 + 11,29 €

Stock: 21
Further delivery:
CW 12/2025
