LRS-50-36

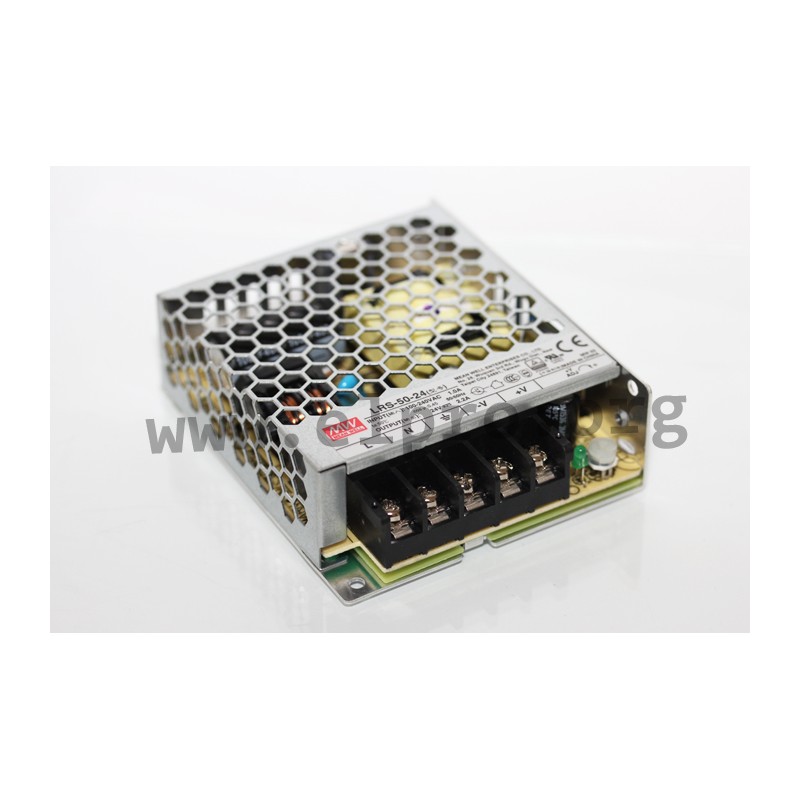

Mean Well power supply series LRS-50

Switching power supplies in an enclosed housing with 50W, a low profile, a universal input and screw terminals. These devices have a high efficiency and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with EN55032 class B as well as EN62368-1. We offer the following types of this Mean Well series: LRS-50-5, LRS-50-12, LRS-50-15, LRS-50-24, LRS-50-36 and LRS-50-48.

  • single output
  • output: 33 to 52,8W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC
  • maximal input inrush current: 45A
  • leakage current: <0,75mA
  • output voltage adjustment: ±10%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 230g

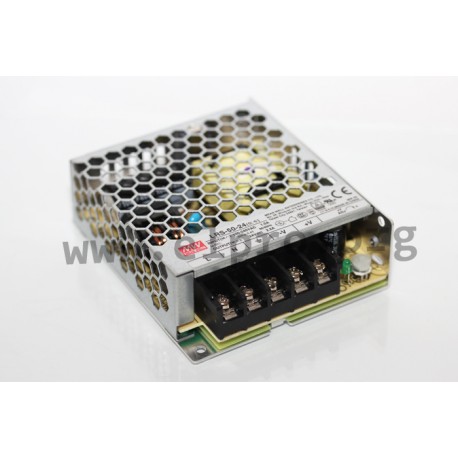

Mean Well LRS-50 series

LRS-50-36

104483 LRS-50-36 LRS-50-36 4711287434605 Mean Well power supply series LRS-50. Switching power supplies in an enclosed housing with 50W, a low profile, a universal input and screw terminals. These devices have a high efficiency and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with&nbsp;EN55032 class B as well as EN62368-1. We offer the following types of this Mean Well series:&nbsp;LRS-50-5, LRS-50-12, LRS-50-15, LRS-50-24, LRS-50-36 and LRS-50-48. single output output: 33 to 52,8W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC maximal input inrush current: 45A leakage current: &lt;0,75mA output voltage adjustment:&nbsp;&plusmn;10% overload protection: 110 to 150% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70&deg;C weight: 230g

Specifications

manufacturer
Manufacturer's name LRS-50-36
GTIN 4711287434605
Output voltage [V] 36
Efficiency [%] 89
Output current range [A] 0...1,45
Output voltage tolerance: [%] 1
Output power [W] 52,2
Ripple [mVp-p] 200
Data Sheet

Unit price

10,29 €

Volume discounts

Quantity Unit price
50 + 9,59 €

Stock: 69
Further delivery:
CW 12/2025
