LRS-35-5

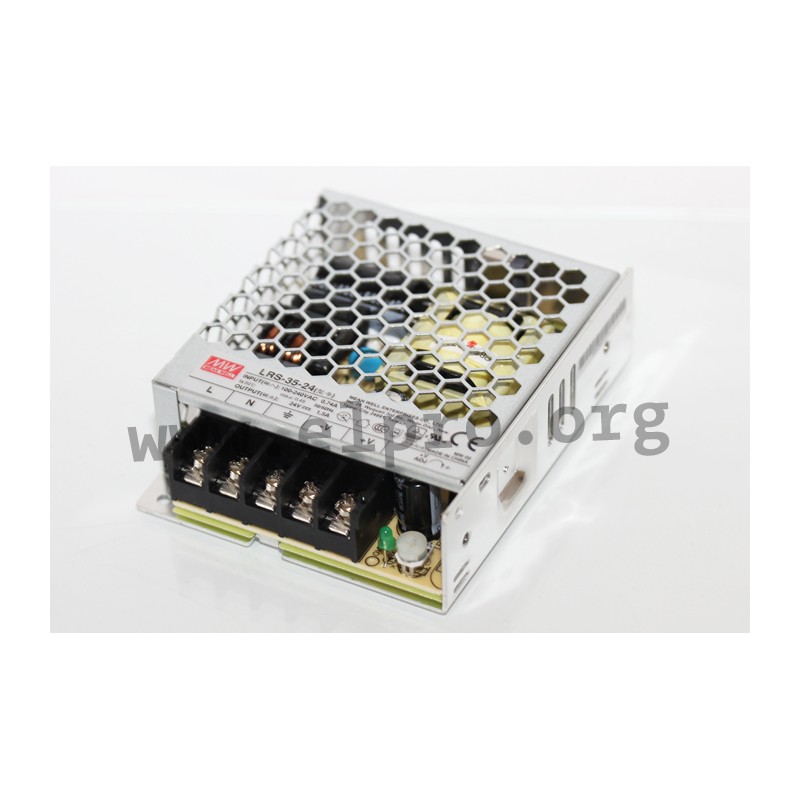

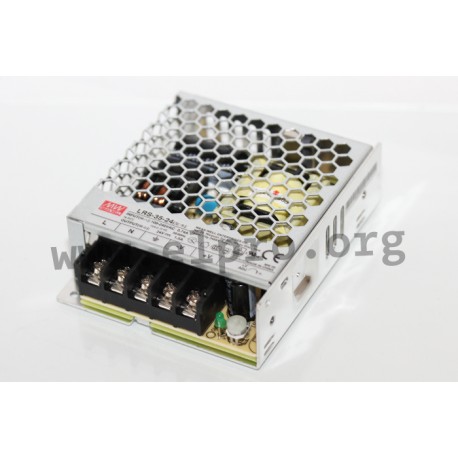

Mean Well power supply series LRS-35

Switching power supplies in an enclosed housing with 35W, screw terminals, a low profile and a universal input. These devices have a high efficiency and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with EN62368-2 as well as EN55032 class B. We offer the following types of this Mean Well series: LRS-35-5, LRS-35-12, LRS-35-15, LRS-35-24, LRS-35-36 and LRS-35-48.

  • single output
  • output: 35 to 38,4W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC
  • maximal input inrush current: 45A
  • leakage current: <0,75mA
  • output voltage adjustment: ±10%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 230g
Mean Well LRS-35 series

LRS-35-5

104472 LRS-35-5 LRS-35-5 4711287434490 Mean Well power supply series LRS-35. Switching power supplies in an enclosed housing with 35W, screw terminals, a low profile and a universal input. These devices have a high&nbsp;efficiency and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with&nbsp;EN62368-2 as well as EN55032 class B. We offer the following types of this Mean Well series:&nbsp;LRS-35-5, LRS-35-12, LRS-35-15, LRS-35-24, LRS-35-36 and LRS-35-48. single output output: 35 to 38,4W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC maximal input inrush current: 45A leakage current: &lt;0,75mA output voltage adjustment:&nbsp;&plusmn;10% overload protection: 110 to 150% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70&deg;C weight: 230g

Specifications

manufacturer
Manufacturer's name LRS-35-5
GTIN 4711287434490
Output voltage [V] 5
Efficiency [%] 82
Output current range [A] 0...7
Output voltage tolerance: [%] 2
Output power [W] 35
Ripple [mVp-p] 80
Data Sheet

Unit price

8,99 €

Volume discounts

Quantity Unit price
50 + 8,39 €

Stock: 200
Next incoming goods:
CW 07/2025
540 units

Further delivery:
CW 11/2025
