LRS-100-36

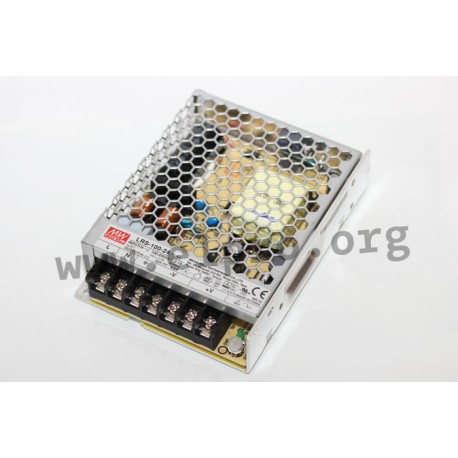

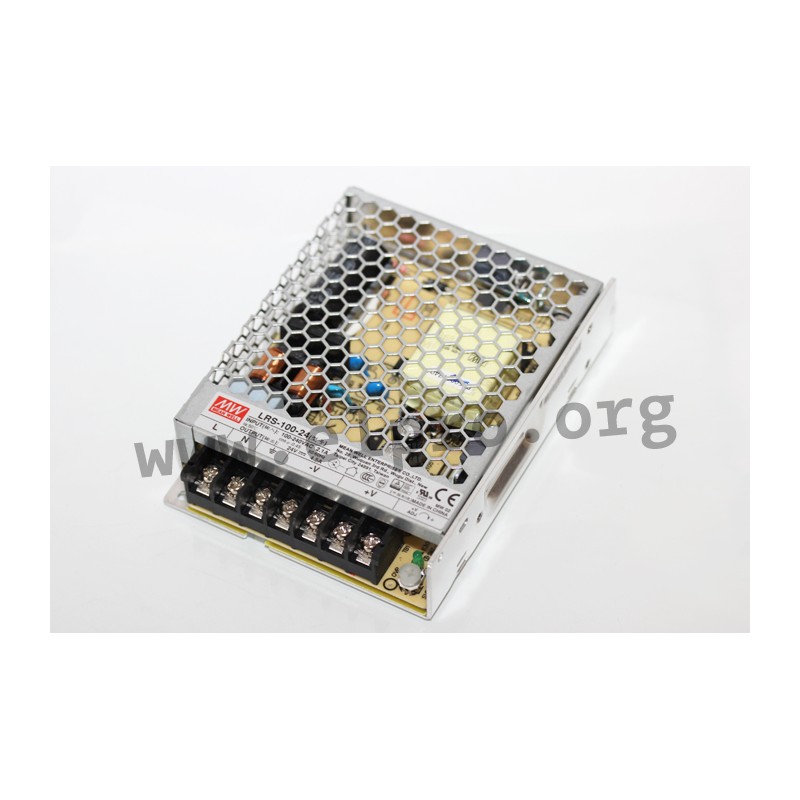

Mean Well power supply series LRS-100

Switching power supplies in an enclosed housing with 100W, a universal input, a low profile (1U), screw terminals and a low no-load power (<0,3W). These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LRS-100-5, LRS-100-12, LRS-100-15, LRS-100-24, LRS-100-36 and LRS-100-48.

  • single output
  • output: 66 to 110,4W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC
  • maximal input inrush current: 50A
  • leakage current: <0,75mA
  • output voltage adjustment: ±10%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 340g
Mean Well LRS-100 series

LRS-100-36

104496 LRS-100-36 LRS-100-36 4711287434735 Mean Well power supply series LRS-100. Switching power supplies in an enclosed housing with 100W, a universal input, a low profile (1U),&nbsp;screw terminals and a low no-load power (&lt;0,3W). These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with&nbsp;UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series:&nbsp;LRS-100-5, LRS-100-12, LRS-100-15, LRS-100-24, LRS-100-36 and LRS-100-48. single output output: 66 to 110,4W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC maximal input inrush current: 50A leakage current: &lt;0,75mA output voltage adjustment:&nbsp;&plusmn;10% overload protection: 110 to 150% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70&deg;C weight: 340g

Specifications

manufacturer
Manufacturer's name LRS-100-36
GTIN 4711287434735
Output voltage [V] 36
Efficiency [%] 90,5
Output current range [A] 0...2,8
Output voltage tolerance: [%] 1
Output power [W] 100,8
Ripple [mVp-p] 200
Data Sheet

Unit price

13,59 €

Volume discounts

Quantity Unit price
50 + 12,69 €

Stock: 127
Further delivery:
CW 16/2025
