LPV-60-24

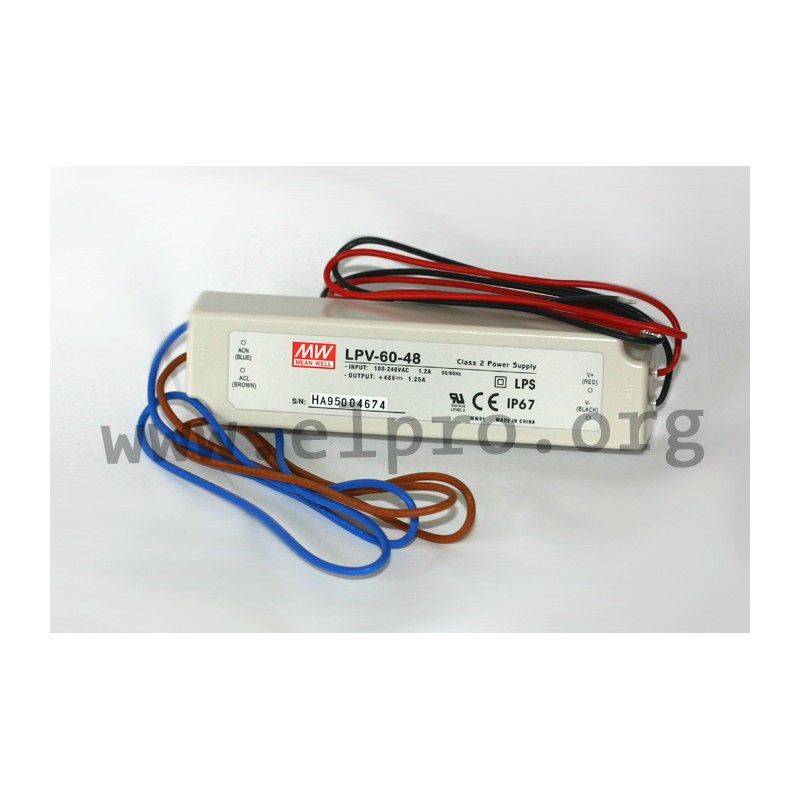

Mean Well LED driver series LPV-60

LED drivers in a plastic housing (IP67) with a constant voltage, 60W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL1310 class 2, EN62368-1, IEC62368-1 as well as EN55032 class B. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPV-60-5, LPV-60-12, LPV-60-15, LPV-60-24, LPV-60-36 and LPV-60-48.

  • single output
  • output: 40 to 60W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C

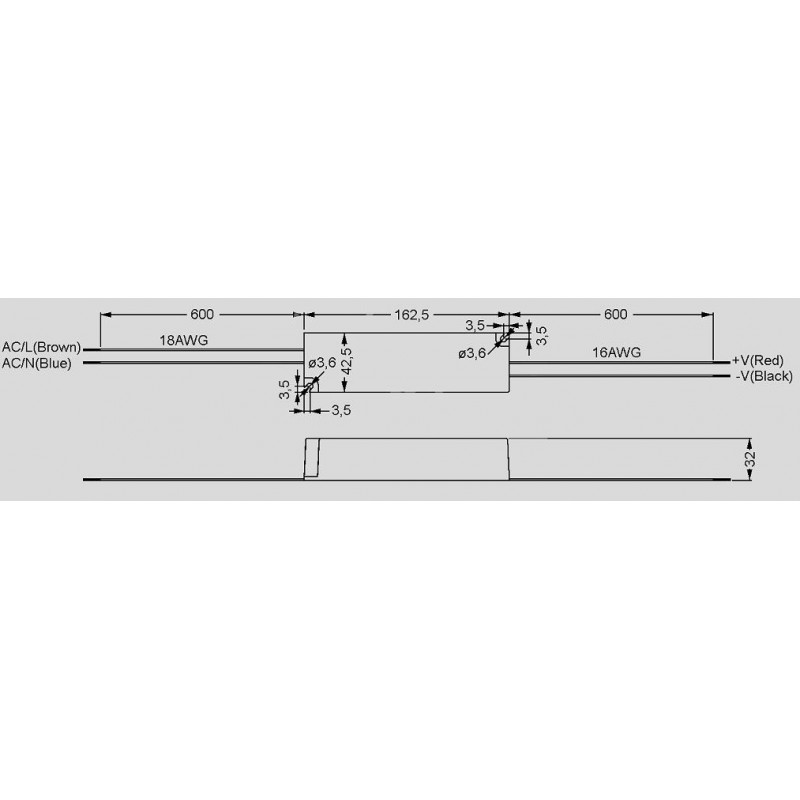

  • dimensions: 162,5x42,5x32mm
  • weight: 400g

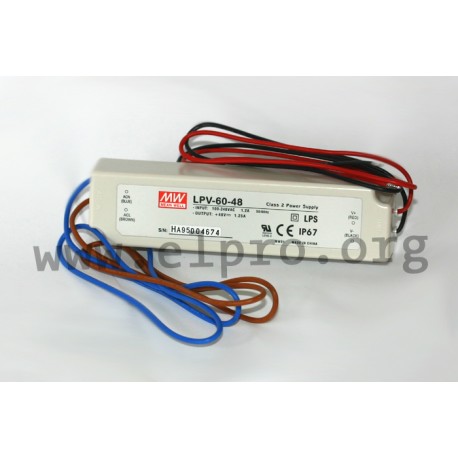

Meanwell LPV 60-series

LPV-60-24

33072 LPV-60-24 LPV-60-24 4711287455723 Mean Well LED driver series LPV-60. LED drivers in a plastic housing (IP67) with a constant voltage, 60W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL1310 class 2, EN62368-1, IEC62368-1 as well as EN55032 class B. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPV-60-5, LPV-60-12, LPV-60-15, LPV-60-24, LPV-60-36 and LPV-60-48. single output output: 40 to 60W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70°C dimensions: 162,5x42,5x32mm weight: 400g

Specifications

manufacturer
Manufacturer's name LPV-60-24
GTIN 4711287455723
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 86
Output current range [A] 0...4
Output voltage tolerance: [%] 2
Output power [W] 60
Ripple [mV] 150
Data Sheet

Unit price

10,99 €

Volume discounts

Quantity Unit price
50 + 10,39 €

Stock: 10207
Next incoming goods:
CW 05/2025
2016 units

Further delivery:
CW 09/2025
