LPV-20-12

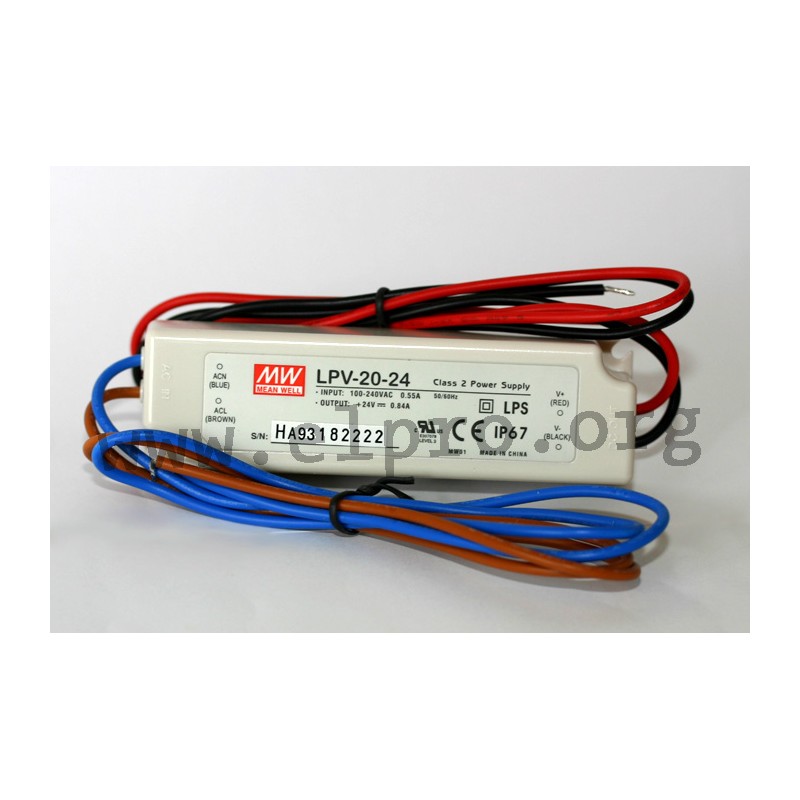

Mean Well LED driver series LPV-20

LED drivers in a plastic housing (IP67) with a constant voltage, 20W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and are suitable for LED lighting applications. They comply with UL1310 class 2, UL1310, IEC62368-1, EN62368-1 as well as EN55032 class B and are not dimmable. We offer the following types of this Mean Well series: LPV-20-5, LPV-20-12, LPV-20-15 and LPV-20-24.

  • single output
  • output: 15 to 20,2W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C
  • weight: 220g
dimensions

LPV-20-12

33050 LPV-20-12 LPV-20-12 4711287440897 Mean Well LED driver series LPV-20. LED drivers in a plastic housing (IP67) with a constant voltage, 20W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and are suitable for LED lighting applications. They comply with UL1310 class 2, UL1310, IEC62368-1, EN62368-1 as well as EN55032 class B and are not dimmable. We offer the following types of this Mean Well series: LPV-20-5, LPV-20-12, LPV-20-15 and LPV-20-24. single output output: 15 to 20,2W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70°C weight: 220g

Specifications

manufacturer
Manufacturer's name LPV-20-12
GTIN 4711287440897
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 81
Output current range [A] 0...1,67
Output voltage tolerance: [%] 5
Output power [W] 20
Ripple [mV] 120
Data Sheet

Unit price

7,19 €

Volume discounts

Quantity Unit price
50 + 6,79 €

Stock: 1632
Next incoming goods:
CW 09/2025
1200 units

Further delivery:
CW 16/2025
