LPV-150-48

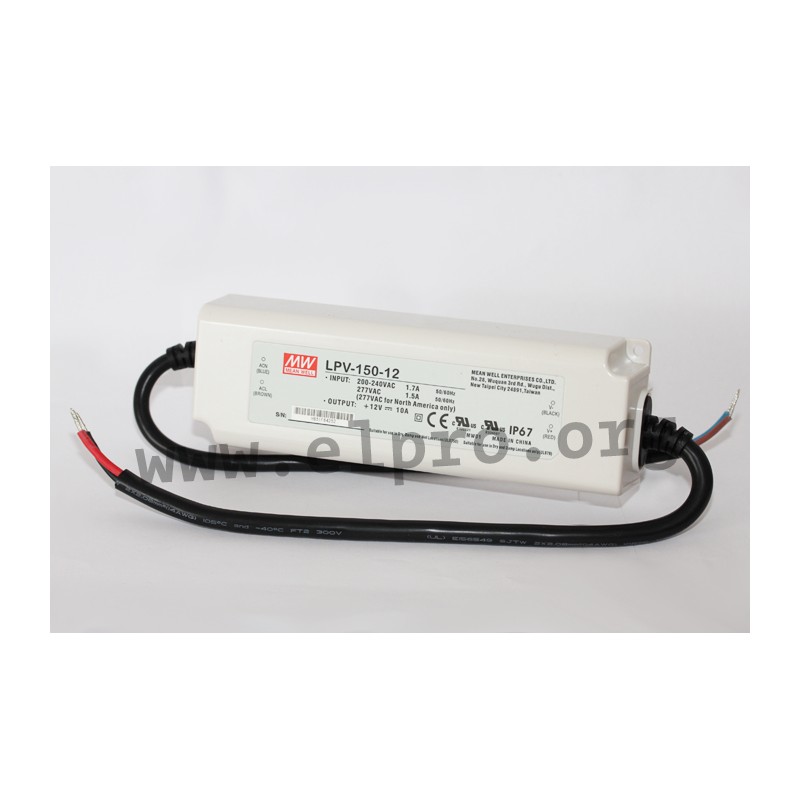

Mean Well LED driver series LPV-150

LED drivers in a plastic housing (IP67) with a constant voltage and 150W. These devices are not dimmable and are suitable for LED lighting applications. They comply with UL8750, IEC62368-1, EN62368-1 as well as EN55032 class B and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: LPV-150-12, LPV-150-15, LPV-150-24, LPV-150-36 and LPV-150-48.

  • single output
  • output: 120 to 153,6W
  • input voltage: 180 to 305V AC (47 to 63Hz), 254 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -25 to +65°C
  • dimensions: 191x63x37,5mm
  • weight: 740g

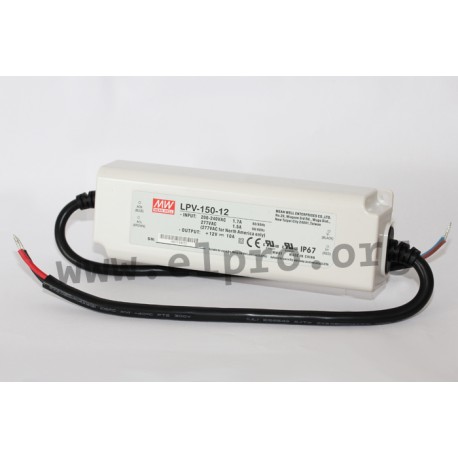

Meanwell LPV-150 series

LPV-150-48

45005 LPV-150-48 LPV-150-48 4711287455877 Mean Well LED driver series LPV-150. LED drivers in a plastic housing (IP67) with a constant voltage and 150W. These devices are not dimmable and are suitable for LED lighting applications. They comply with UL8750, IEC62368-1, EN62368-1 as well as EN55032 class B and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: LPV-150-12, LPV-150-15, LPV-150-24, LPV-150-36 and LPV-150-48. single output output: 120 to 153,6W input voltage: 180 to 305V AC (47 to 63Hz), 254 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3000V AC operating temperature: -25 to +65°C dimensions: 191x63x37,5mm weight: 740g

Specifications

manufacturer
Manufacturer's name LPV-150-48
GTIN 4711287455877
Output voltage [V] 48
Efficiency [%] 90
Output current range [A] 0...3,2
Output voltage tolerance: [%] 5
Output power [W] 153,6
Ripple [mVp-p] 200
Data Sheet

Unit price

28,59 €

Volume discounts

Quantity Unit price
50 + 26,59 €

Stock: 128
Further delivery:
CW 16/2025
