LPV-100-5

Mean Well LED driver series LPV-100

LED drivers in a plastic housing (IP67) with a universal input, 100W and a constant voltage. These devices are protected against short circuit, overvoltage as well as overload (auto recovery) and comply with UL8750, EN62368-1, IEC62368-1 as well as EN55032 class B. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPV-100-5, LPV-100-12, LPV-100-15, LPV-100-24, LPV-100-36 and LPV-100-48.

  • single output
  • output: 60 to 102W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -25 to +70°C

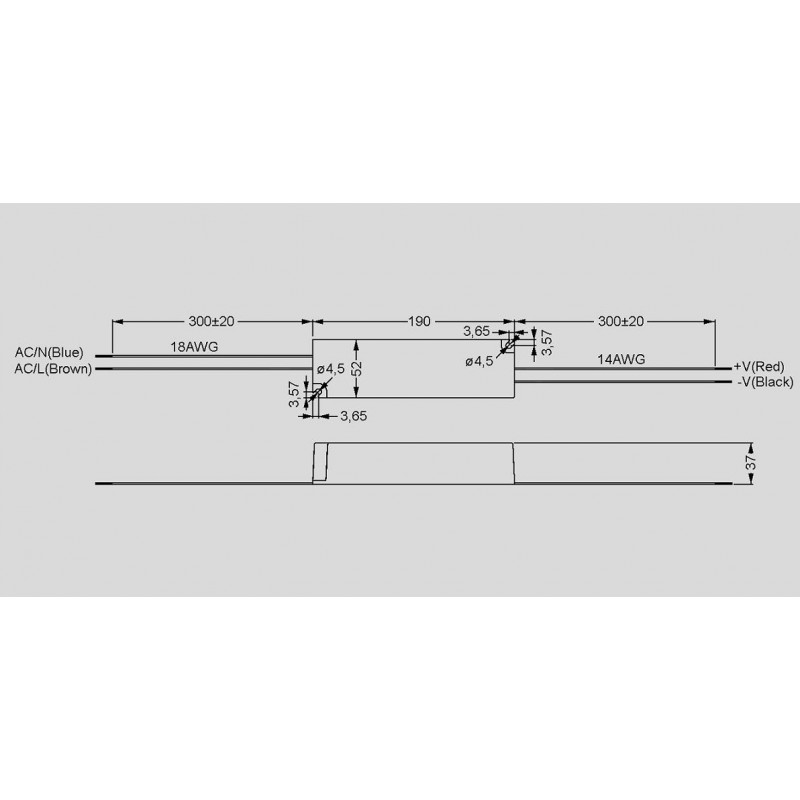

  • dimensions: 190x52x37mm
  • weight: 630g
LPV-100-5

LPV-100-5

35963 LPV-100-5 LPV-100-5 4711287455754 Mean Well LED driver series LPV-100. LED drivers in a plastic housing (IP67) with a universal input, 100W and a constant voltage. These devices are protected against short circuit, overvoltage as well as overload (auto recovery) and comply with UL8750, EN62368-1, IEC62368-1 as well as EN55032 class B. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPV-100-5, LPV-100-12, LPV-100-15, LPV-100-24, LPV-100-36 and LPV-100-48. single output output: 60 to 102W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3000V AC operating temperature: -25 to +70°C dimensions: 190x52x37mm weight: 630g

Specifications

manufacturer
Manufacturer's name LPV-100-5
GTIN 4711287455754
Output voltage [V] 5
Phase 2 phase
Efficiency [%] 78
Output current range [A] 0...12
Output voltage tolerance: [%] 8
Output power [W] 60
Ripple [mV] 80
Data Sheet

Unit price

18,19 €

Volume discounts

Quantity Unit price
50 + 17,09 €

Stock: 640
Next incoming goods:
CW 05/2025
1000 units

Further delivery:
CW 11/2025
