LPV-100-48

Mean Well LED driver series LPV-100

LED drivers in a plastic housing (IP67) with a universal input, 100W and a constant voltage. These devices are protected against short circuit, overvoltage as well as overload (auto recovery) and comply with UL8750, EN62368-1, IEC62368-1 as well as EN55032 class B. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPV-100-5, LPV-100-12, LPV-100-15, LPV-100-24, LPV-100-36 and LPV-100-48.

  • single output
  • output: 60 to 102W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -25 to +70°C

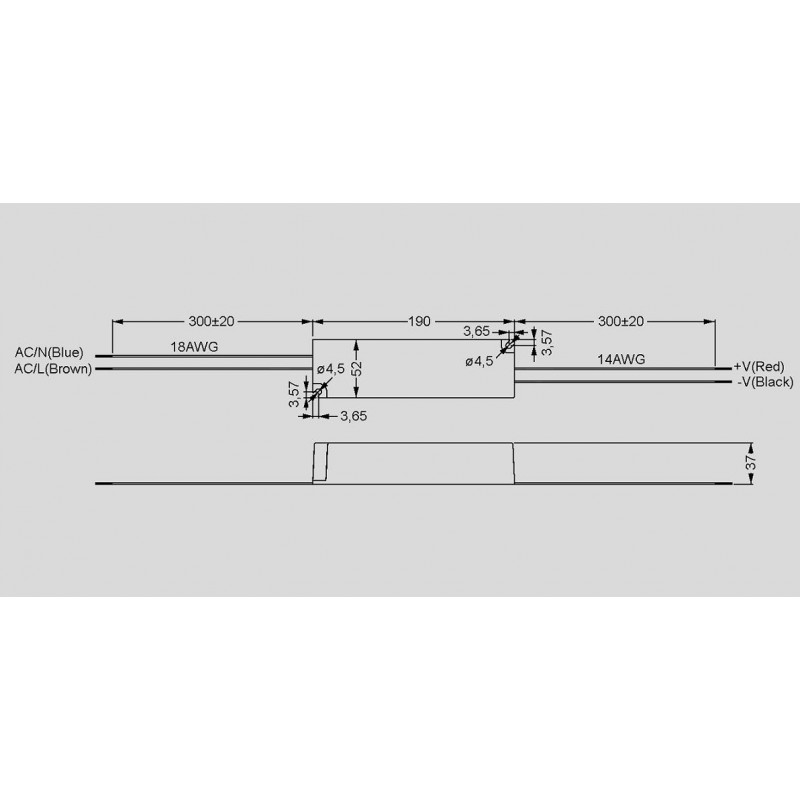

  • dimensions: 190x52x37mm
  • weight: 630g
LPV-100-48

LPV-100-48

35962 LPV-100-48 LPV-100-48 4711287455808 Mean Well LED driver series LPV-100. LED drivers in a plastic housing (IP67) with a universal input, 100W and a constant voltage. These devices are protected against short circuit, overvoltage as well as overload (auto recovery) and comply with UL8750, EN62368-1, IEC62368-1 as well as EN55032 class B. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPV-100-5, LPV-100-12, LPV-100-15, LPV-100-24, LPV-100-36 and LPV-100-48. single output output: 60 to 102W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3000V AC operating temperature: -25 to +70°C dimensions: 190x52x37mm weight: 630g

Specifications

manufacturer
Manufacturer's name LPV-100-48
GTIN 4711287455808
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...2,1
Output voltage tolerance: [%] 5
Output power [W] 100,8
Ripple [mV] 150
Data Sheet

Unit price

18,99 €

Volume discounts

Quantity Unit price
50 + 17,79 €

Stock: 313
Further delivery:
CW 11/2025
