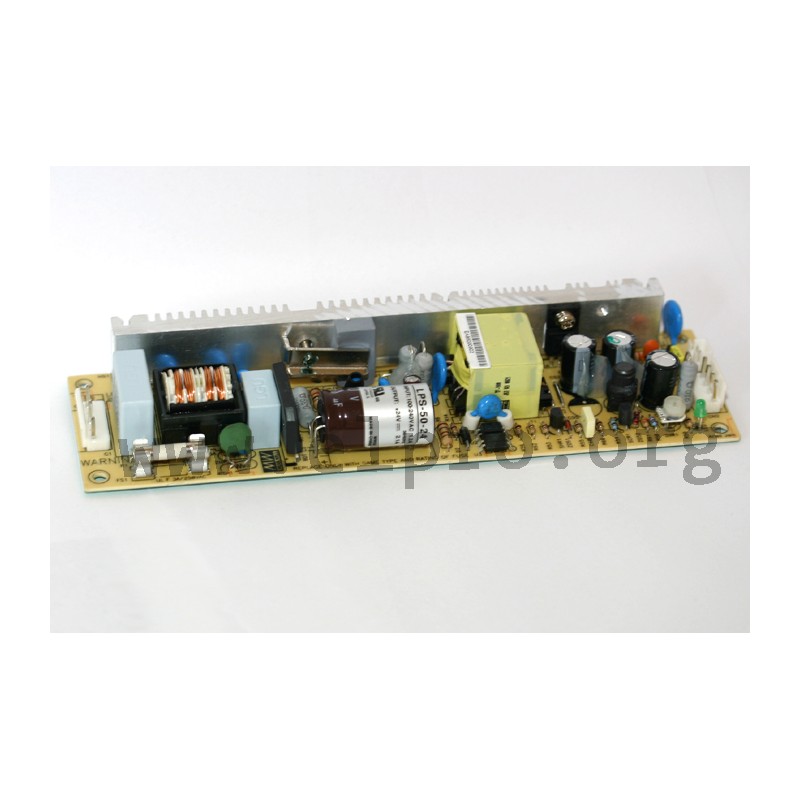

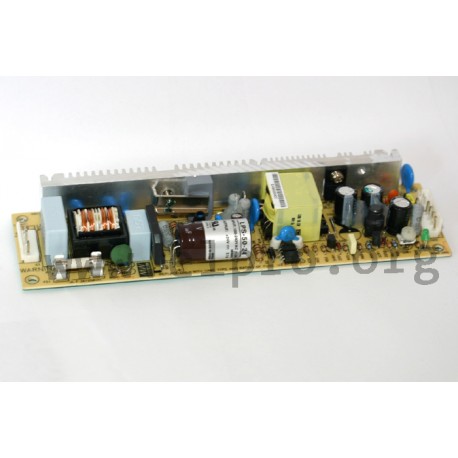

LPS-50-48

Mean Well power supply series LPS-50

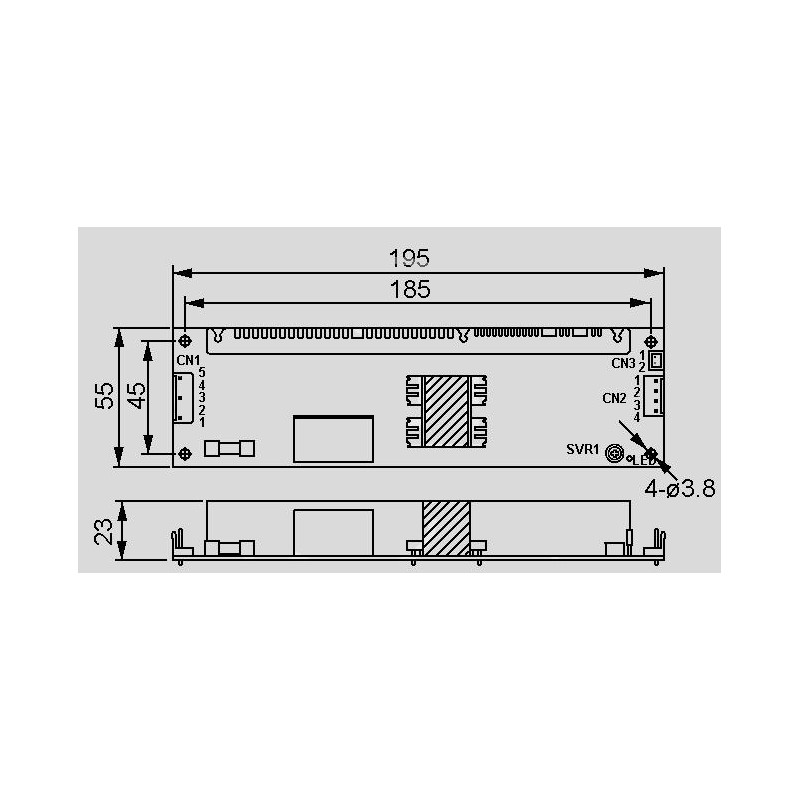

Open frame type switching power supplies with 50W, a universal input and a built-in remote ON/OFF control. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low profile (23mm) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: LPS-50-3.3, LPS-50-5, LPS-50-12, LPS-50-15, LPS-50-24 und LPS-50-48

  • single output
  • output: 33 to 52,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <1mA
  • output voltage adjustment: ±10%
  • overload protection: 122 to 160%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 240g
LPS-50-48

LPS-50-48

30718 LPS-50-48 LPS-50-48 4711287425696 Mean Well power supply series LPS-50. Open frame type switching power supplies with 50W, a universal input and a built-in remote ON/OFF control. These devices have a pin strip connection for nylon&nbsp;crimp&nbsp;terminals and are protected against overload (auto recovery),&nbsp;overvoltage as well as short&nbsp;circuit. They have a low&nbsp;profile (23mm) and comply with&nbsp;UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the&nbsp;following types of this Mean Well series:&nbsp;LPS-50-3.3, LPS-50-5, LPS-50-12, LPS-50-15, LPS-50-24 und LPS-50-48 single output output: 33 to 52,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A leakage current: &lt;1mA output voltage adjustment:&nbsp;&plusmn;10% overload protection: 122 to 160% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70&deg;C weight: 240g

Specifications

manufacturer
Manufacturer's name LPS-50-48
GTIN 4711287425696
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 86
Output current range [A] 0...1,1
Output voltage tolerance: [%] ±1
Output rated current [A] 1,1
Output power [W] 52,8
Ripple [mV] 100
Data Sheet

Unit price

15,99 €

Volume discounts

Quantity Unit price
50 + 15,09 €

Stock: 3
Further delivery:
CW 16/2025
