LPS-100-3.3

Mean Well power supply series LPS-100

Open frame switching power supplies with 100W, a universal input and contact pins. These devices have a built-in active PFC function and a fixed switching frequency at 134kHz. They are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN60950-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LPS-100-3.3, LPS-100-5, LPS-100-7.5, LPS-100-12, LPS-100-13.5, LPS-100-15, LPS-100-24, LPS-100-27 and LPS-100-48.

  • single output
  • output: 66 to 102,6W
  • input voltage: 88 to 132V AC (47 to 63Hz), 176 to 264V DC
  • maximal input inrush current: 30A
  • leakage current: <1mA
  • overload protection: 105 to 140%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 450g

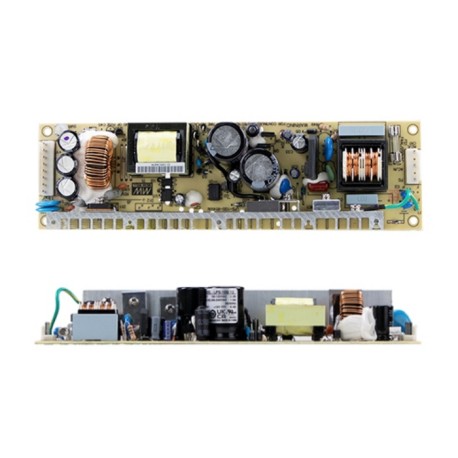

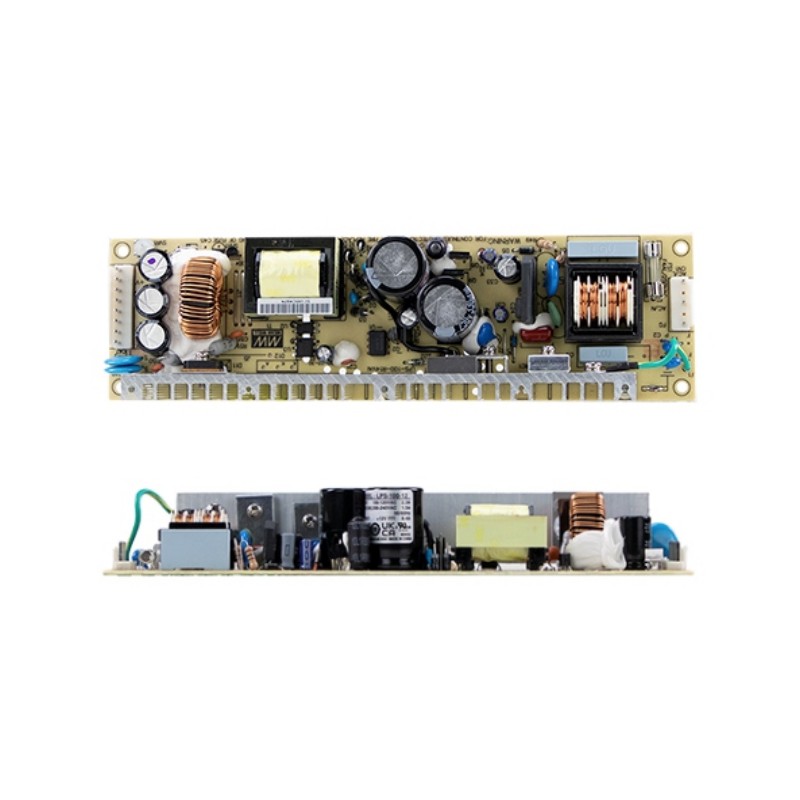

LPS-100-3.3, Mean Well switching power supplies, 100W, open frame (PCB), LPS-100 series

LPS-100-3.3

244971 LPS-100-3.3 LPS-100-3.3 4711287425818 Mean Well power supply series LPS-100. Open frame switching power supplies with 100W, a universal input and contact pins. These devices have a built-in active PFC function and a fixed switching frequency at 134kHz. They are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN60950-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LPS-100-3.3, LPS-100-5, LPS-100-7.5, LPS-100-12, LPS-100-13.5, LPS-100-15, LPS-100-24, LPS-100-27 and LPS-100-48. single output output: 66 to 102,6W input voltage: 88 to 132V AC (47 to 63Hz), 176 to 264V DC maximal input inrush current: 30A leakage current: &lt;1mA overload protection: 105 to 140% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 450g

Specifications

manufacturer
Manufacturer's name LPS-100-3.3
GTIN 4711287425818
Output voltage [V] 3,3
Efficiency [%] 69
Output current [A] 20
Output voltage tolerance: [%] 3
Output power [W] 66
Ripple [mVp-p] 150
Data Sheet

Unit price

25,89 €

Stock: 0
Further delivery:
CW 16/2025
