PSAI 15V 10A

Mean Well power supply series LPP-150

Open frame type switching power supplies with 150W, a universal input and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: LPP-150-3.3, LPP-150-5, LPP-150-7.5, LPP-150-12, LPP-150-13.5, LPP-150-24, LPP-150-27 and LPP-150-48.

  • single output
  • output: 99 to 153,6W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 55A
  • leakage current: <3,5mA
  • output voltage adjustment: +10/-5%
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 620g

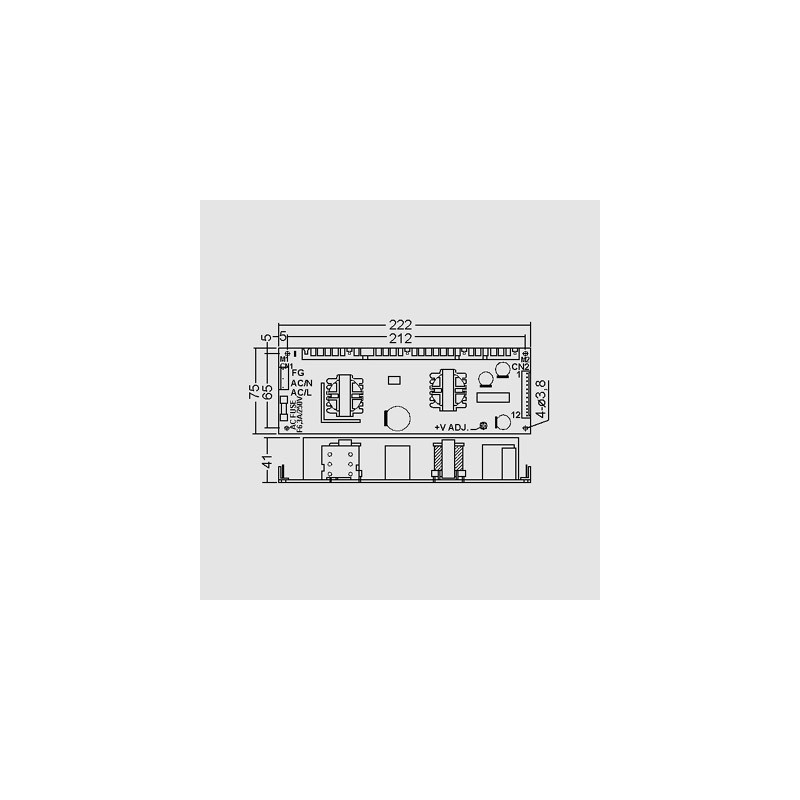

dimensions

PSAI 15V 10A

17854 PSAI 15V 10A LPP-150-15 LPP-150-15 Mean Well power supply series LPP-150. Open frame type switching power supplies with 150W, a universal input and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: LPP-150-3.3, LPP-150-5, LPP-150-7.5, LPP-150-12, LPP-150-13.5, LPP-150-24, LPP-150-27 and LPP-150-48. single output output: 99 to 153,6W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 55A leakage current: &lt;3,5mA output voltage adjustment: +10/-5% overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 620g

Specifications

manufacturer
Manufacturer's name LPP-150-15
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 80
Output current range [A] 0...10
Output voltage tolerance: [%] ±2
Output rated current [A] 10
Output power [W] 150
Output voltage adjustment [V] 14,3...16,5
Ripple [mV] 100
Data Sheet

Unit price

31,49 €

Volume discounts

Quantity Unit price
50 + 29,69 €

Stock: 19
Further delivery:
CW 09/2025
