LPH-18-12

Mean Well LED driver series LPH-18

LED drivers in a plastic housing (IP67) with a constant current, a high reliability and 18W. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with IEC62368-1, EN62368-1 as well as EN55032 class B. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPH-18-12, LPH-18-24 and LPH-18-36.

  • single output
  • output: 18W
  • input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C
  • dimensions: 140x30x22mm
  • weight: 175g

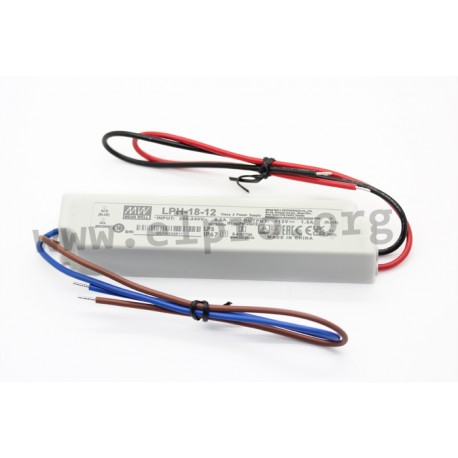

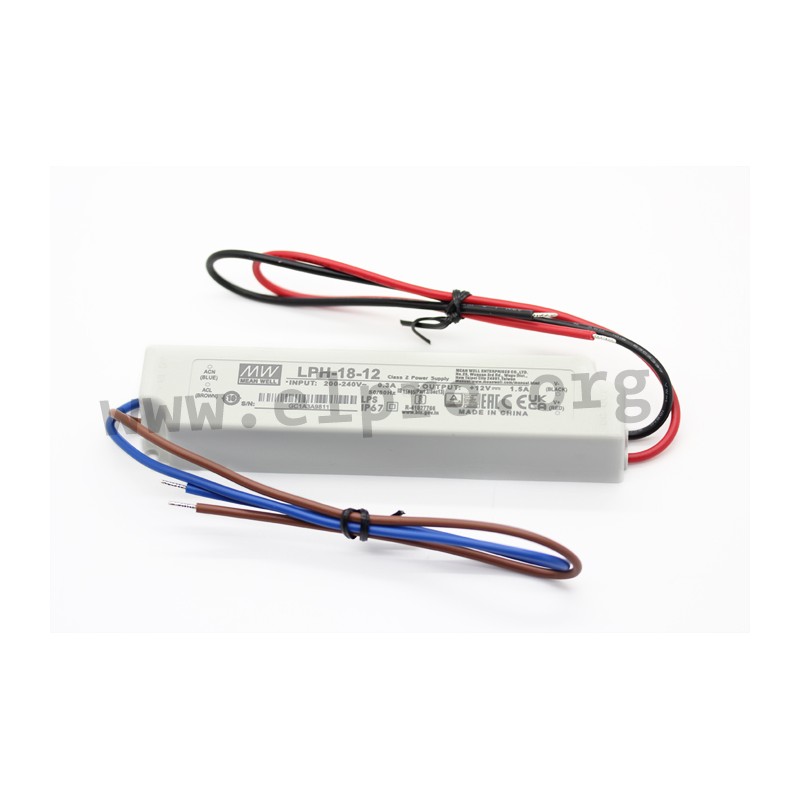

LPH-18-12, Mean Well LED drivers, 18W, IP67, constant voltage, LPH-18 series

LPH-18-12

33049 LPH-18-12 LPH-18-12 4711287440835 Mean Well LED driver series LPH-18. LED drivers in a plastic housing (IP67) with a constant current, a high reliability and 18W. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with IEC62368-1, EN62368-1 as well as EN55032 class B. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPH-18-12, LPH-18-24 and LPH-18-36. single output output: 18W input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70°C dimensions: 140x30x22mm weight: 175g

Specifications

manufacturer
Manufacturer's name LPH-18-12
GTIN 4711287440835
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 78
Output current range [A] 0...1,5
Output voltage tolerance: [%] 3
Output power [W] 18
Ripple [mV] 120
Data Sheet

Unit price

6,19 €

Volume discounts

Quantity Unit price
50 + 5,59 €

Stock: 5153
Next incoming goods:
CW 03/2025
3500 units

Further delivery:
CW 11/2025
