LPF-90D-48

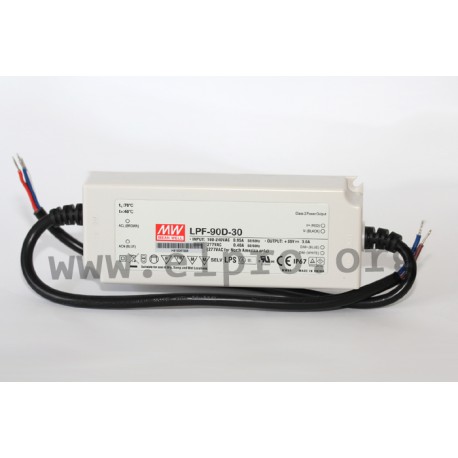

Mean Well LED driver series LPF-90D

LED drivers in a plastic housing (IP67) with a 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer) and 90W. These devices comply with UL1310 class 2, EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: LPF-90D-15, LPF-90D-20, LPF-90D-24, LPF-90D-30, LPF-90D-36, LPF-90D-42, LPF-90D-48 and LPF-90D-54.

  • single output
  • output: 75 to 90,3W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +70°C

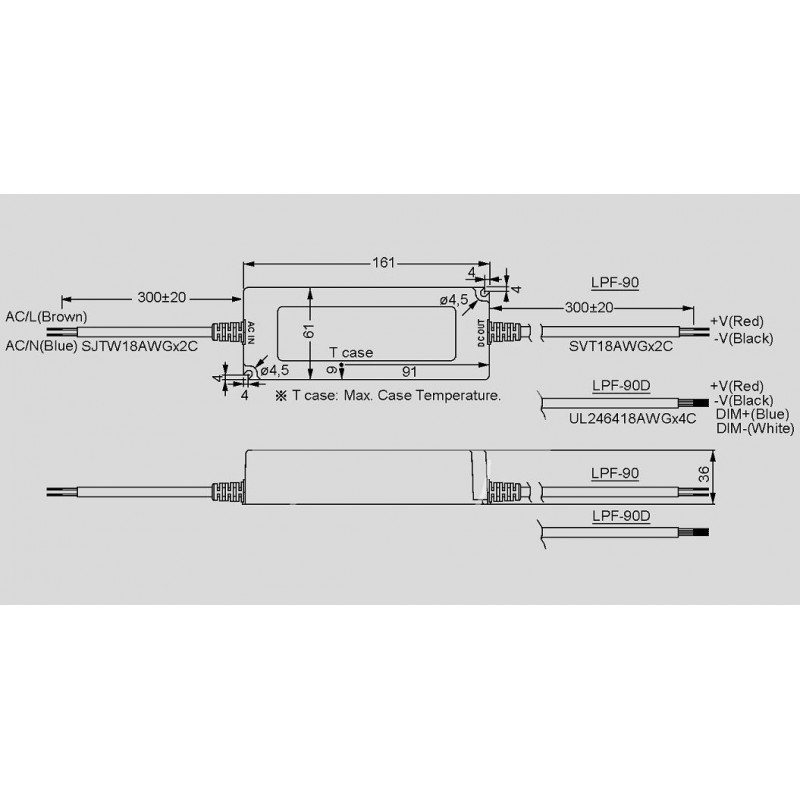

  • dimensions: 161x61x36mm
  • weight: 700g
LPF-90D-48

LPF-90D-48

36129 LPF-90D-48 LPF-90D-48 4711287459035 Mean Well LED driver series LPF-90D. LED drivers in a plastic housing (IP67) with a 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer) and 90W. These devices comply with UL1310 class 2, EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: LPF-90D-15, LPF-90D-20, LPF-90D-24, LPF-90D-30, LPF-90D-36, LPF-90D-42, LPF-90D-48 and LPF-90D-54. single output output: 75 to 90,3W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +70°C dimensions: 161x61x36mm weight: 700g

Specifications

manufacturer
Manufacturer's name LPF-90D-48
GTIN 4711287459035
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 91
Output current range [A] 1,88
Output voltage tolerance: [%] 4
Output power [W] 90,24
Ripple [mVp-p] 200
Data Sheet

Unit price

35,69 €

Volume discounts

Quantity Unit price
50 + 34,99 €

Stock: 1
Further delivery:
CW 16/2025
