LPF-90-54

Mean Well LED driver series LPF-90

LED drivers in a plastic housing (IP67) with a constant voltage / constant current (mixed mode), a universal input and 90W. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and are suitable for LED lighting applications. They comply with UL1310 class 2, EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: LPF-90-15, LPF-90-20, LPF-90-24, LPF-90-30, LPF-90-36, LPF-90-42, LPF-90-48 and LPF-90-54.

  • single output
  • output: 75 to 90,3W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +70°C

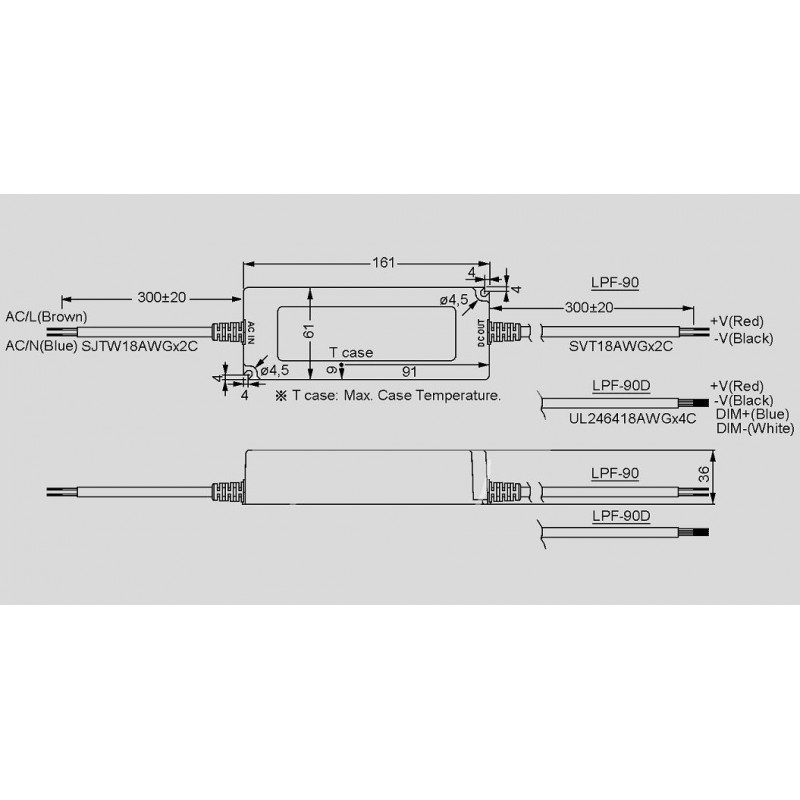

  • dimensions: 161x61x36mm
  • weight: 700g

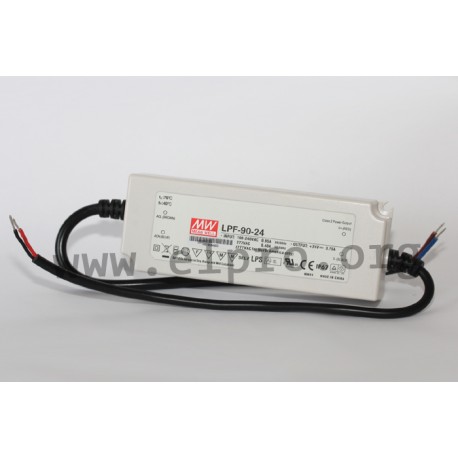

Meanwell LPF-90 series

LPF-90-54

36120 LPF-90-54 LPF-90-54 4711287458694 Mean Well LED driver series LPF-90. LED drivers in a plastic housing (IP67) with a constant voltage / constant current (mixed mode), a universal input and 90W. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and are suitable for LED lighting applications. They comply with UL1310 class 2, EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: LPF-90-15, LPF-90-20, LPF-90-24, LPF-90-30, LPF-90-36, LPF-90-42, LPF-90-48 and LPF-90-54. single output output: 75 to 90,3W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +70°C dimensions: 161x61x36mm weight: 700g

Specifications

manufacturer
Manufacturer's name LPF-90-54
GTIN 4711287458694
Output voltage [V] 54
Phase 2 phase
Efficiency [%] 91
Output current range [A] 1,67
Output voltage tolerance: [%] 4
Output power [W] 90,18
Ripple [mVp-p] 200
Data Sheet

Unit price

32,59 €

Volume discounts

Quantity Unit price
50 + 31,49 €

Stock: 46
Further delivery:
CW 16/2025
