LPF-60D-30

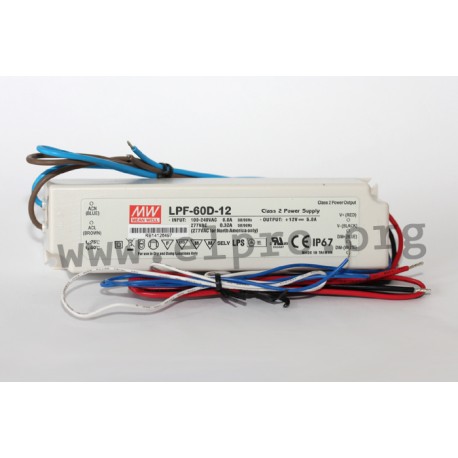

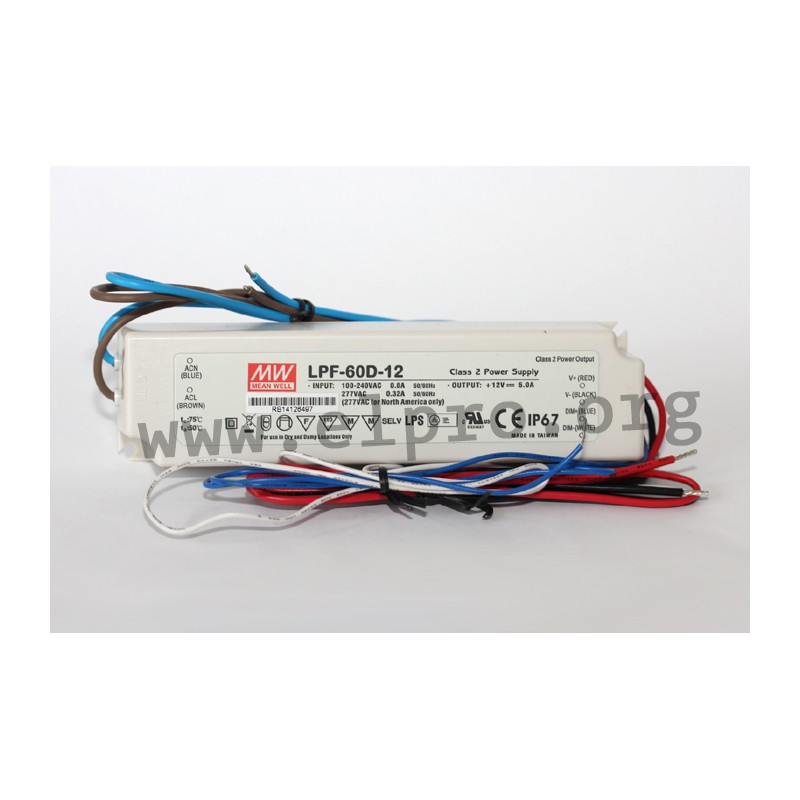

Mean Well LED driver series LPF-60D

LED drivers in a plastic housing (IP67) with 60W, a 3 in 1 dimming function (external voltage 0 to 10V DC, PWM, potentiometer) and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: LPF-60D-12, LPF-60D-15, LPF-60D-20, LPF-60D-24, LPF-60D-30, LPF-60D-36, LPF-60D-42, LPF-60D-48 and LPF-60D-54.

  • single output
  • output: 60 to 60,48W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +80°C
  • dimensions: 162,5x43x32mm
  • weight: 450g
dimensions

LPF-60D-30

36070 LPF-60D-30 LPF-60D-30 4711287458922 Mean Well LED driver series LPF-60D. LED drivers in a plastic housing (IP67) with 60W, a 3 in 1 dimming function (external voltage 0 to 10V DC, PWM, potentiometer) and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: LPF-60D-12, LPF-60D-15, LPF-60D-20, LPF-60D-24, LPF-60D-30, LPF-60D-36, LPF-60D-42, LPF-60D-48 and LPF-60D-54. single output output: 60 to 60,48W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +80°C dimensions: 162,5x43x32mm weight: 450g

Specifications

manufacturer
Manufacturer's name LPF-60D-30
GTIN 4711287458922
Output voltage [V] 30
Phase 2 phase
Efficiency [%] 90
Output current range [A] 2
Output voltage tolerance: [%] 4
Output power [W] 60
Ripple [mVp-p] 200
Data Sheet

Unit price

25,29 €

Volume discounts

Quantity Unit price
50 + 23,59 €

Stock: 0
Next incoming goods:
CW 12/2025
56 units

Further delivery:
CW 16/2025
