LPF-60-20

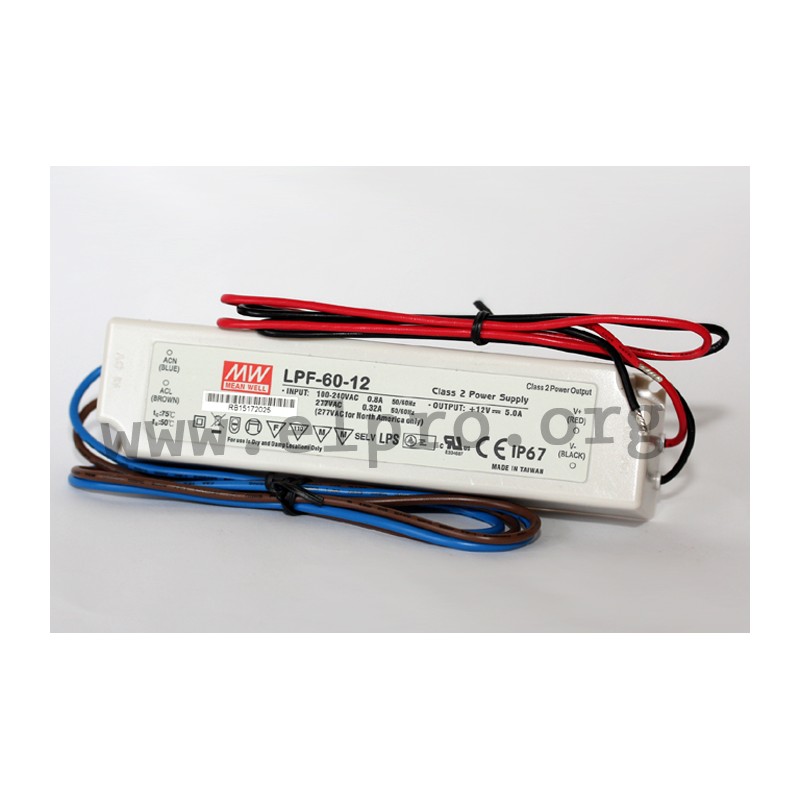

Mean Well LED driver series LPF-60

LED drivers in a plastic housing (IP67) with a universal input, a constant current / constant voltage (mixed mode) and 60W. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL1310 class 2, EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: LPF-60-12, LPF-60-15, LPF-60-20, LPF-60-24, LPF-60-30, LPF-60-36, LPF-60-42, LPF-60-48 and LPF-60-54.

  • single output
  • output: 60 to 60,48W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +80°C
  • dimensions: 162,5x43x32mm
  • weight: 450g
Meanwell LPF-60 series

LPF-60-20

36066 LPF-60-20 LPF-60-20 4711287458557 Mean Well LED driver series LPF-60. LED drivers in a plastic housing (IP67) with a universal input, a constant current / constant voltage (mixed mode) and 60W. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL1310 class 2, EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: LPF-60-12, LPF-60-15, LPF-60-20, LPF-60-24, LPF-60-30, LPF-60-36, LPF-60-42, LPF-60-48 and LPF-60-54. single output output: 60 to 60,48W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +80°C dimensions: 162,5x43x32mm weight: 450g

Specifications

manufacturer
Manufacturer's name LPF-60-20
GTIN 4711287458557
Output voltage [V] 20
Phase 2 phase
Efficiency [%] 88
Output current range [A] 3
Output voltage tolerance: [%] 4
Output power [W] 60
Ripple [mVp-p] 150
Data Sheet

Unit price

23,69 €

Volume discounts

Quantity Unit price
50 + 22,09 €

Stock: 37
Further delivery:
CW 11/2025
