LPF-40D-54

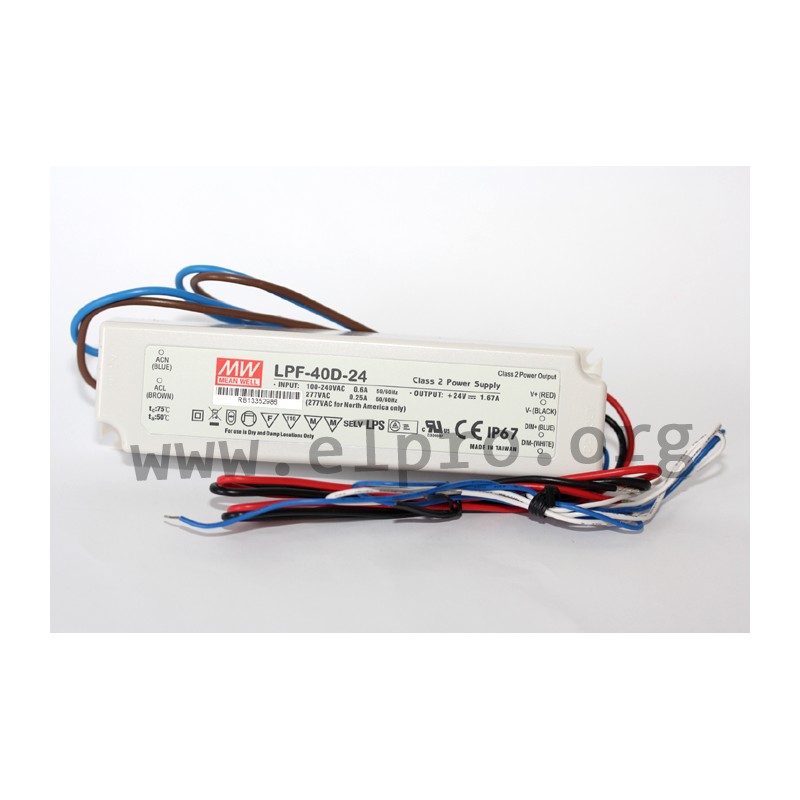

Mean Well LED driver series LPF-40D

LED drivers in a plastic housing (IP67) with a constant current, 40W, a dimming function (external voltage 1 to 10V DC, PWM, potentiometer) and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL1310 Class 2, EN61000-3-2, class C, EN55015, EN61347-1 and EN61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: LPF-40D-12, LPF-40D-15, LPF-40D-20, LPF-40D-24, LPF-40D-30, LPF-40D-36, LPF-40D-42, LPF-40D-48 and LPF-40D-54.

  • single output
  • output: 40,08 to 41,04W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +70°C
  • dimensions: 162,5x43x32mm
  • weight: 450g
Meanwell LPF-40D series

LPF-40D-54

36056 LPF-40D-54 LPF-40D-54 4711287458878 Mean Well LED driver series LPF-40D. LED drivers in a plastic housing (IP67) with a constant current, 40W, a dimming function (external voltage 1 to 10V DC, PWM, potentiometer) and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL1310 Class 2, EN61000-3-2, class C, EN55015, EN61347-1 and EN61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: LPF-40D-12, LPF-40D-15, LPF-40D-20, LPF-40D-24, LPF-40D-30, LPF-40D-36, LPF-40D-42, LPF-40D-48 and LPF-40D-54. single output output: 40,08 to 41,04W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +70°C dimensions: 162,5x43x32mm weight: 450g

Specifications

manufacturer
Manufacturer's name LPF-40D-54
GTIN 4711287458878
Output voltage [V] 54
Phase 2 phase
Efficiency [%] 90
Output current range [A] 0,76
Output voltage tolerance: [%] 4
Output power [W] 41,04
Ripple [mVp-p] 350
Data Sheet

Unit price

24,49 €

Volume discounts

Quantity Unit price
50 + 23,09 €

Stock: 7
Further delivery:
CW 11/2025
