LPF-25D-15

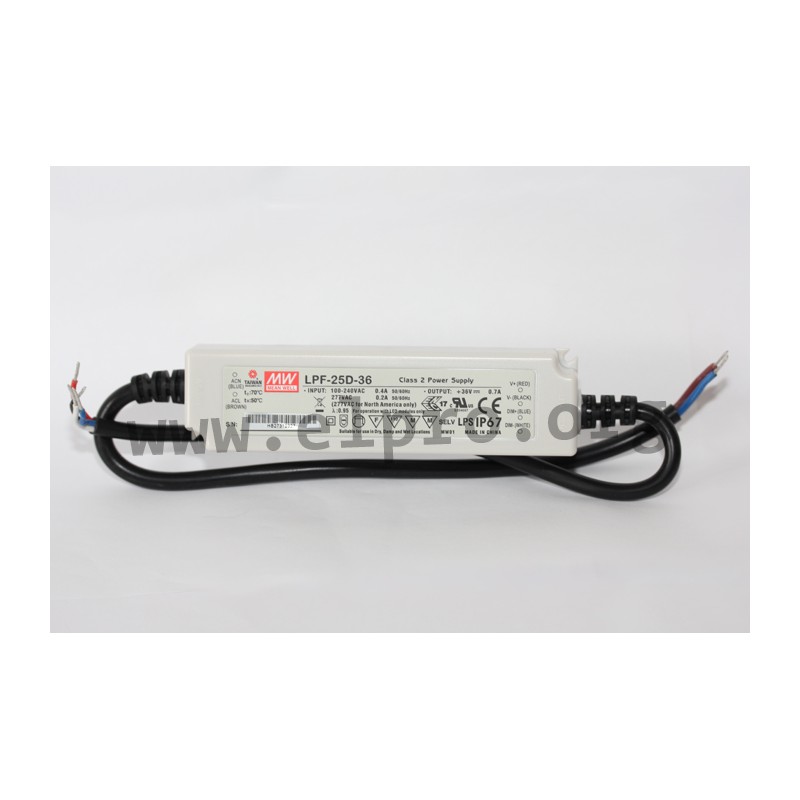

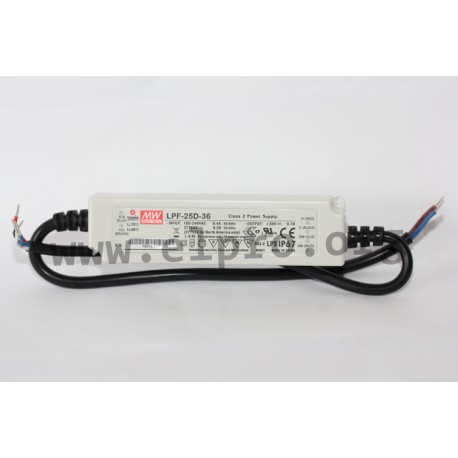

Mean Well LED driver series LPF-25D

LED drivers in a plastic housing (IP67) with a 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer), a constant current, 25W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with UL1310 class 2, EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: LPF-25D-12, LPF-25D-15, LPF-25D-20, LPF-25D-24, LPF-25D-30, LPF-25D-36, LPF-25D-42, LPF-25D-48 and LPF-25D-54.

  • single output
  • output: 25 to 25,44W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -35 to +70°C
  • dimensions: 148x40x32mm
  • weight: 360g

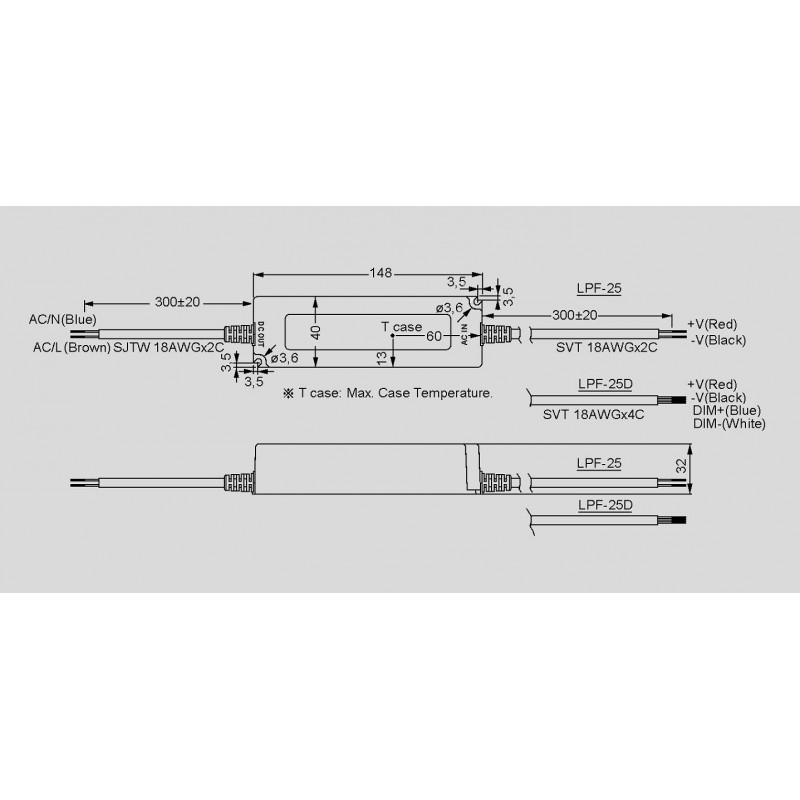

dimensions

LPF-25D-15

36530 LPF-25D-15 LPF-25D-15 4711287458717 Mean Well LED driver series LPF-25D. LED drivers in a plastic housing (IP67) with a 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer), a constant current, 25W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with UL1310 class 2, EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: LPF-25D-12, LPF-25D-15, LPF-25D-20, LPF-25D-24, LPF-25D-30, LPF-25D-36, LPF-25D-42, LPF-25D-48 and LPF-25D-54. single output output: 25 to 25,44W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC operating temperature: -35 to +70°C dimensions: 148x40x32mm weight: 360g

Specifications

manufacturer
Manufacturer's name LPF-25D-15
GTIN 4711287458717
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 84
Output current range [A] 1,67
Output voltage tolerance: [%] 4
Output power [W] 25,05
Ripple [mVp-p] 150
Data Sheet

Unit price

20,59 €

Volume discounts

Quantity Unit price
50 + 19,19 €

Stock: 25
Further delivery:
CW 11/2025
