LPF-25-42

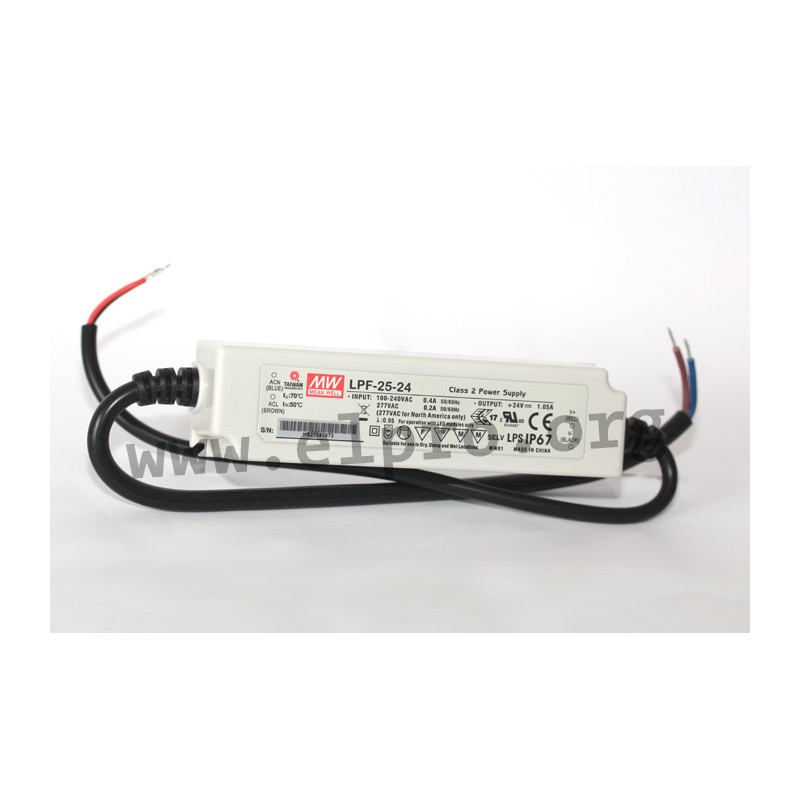

Mean Well LED driver series LPF-25

LED drivers in a plastic housing (IP67) with a constant voltage, 25W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage, are suitable for LED lighting applications and have a built-in active PFC function. They comply with UL1310 class 2, EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. We offer the following types of this Mean Well series: LPF-25-12, LPF-25-15, LPF-25-20, LPF-25-24, LPF-25-30, LPF-25-36, LPF-25-42, LPF-25-48 and LPF-25-54.

  • single output
  • output: 25 to 25,44W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -35 to +70°C

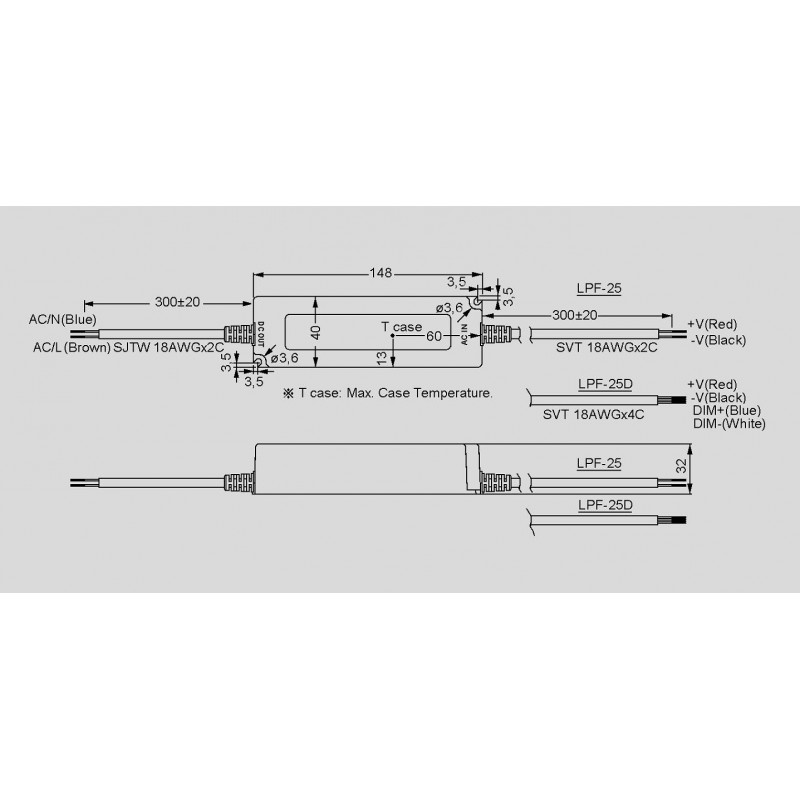

  • dimensions: 148x40x32mm
  • weight: 360g

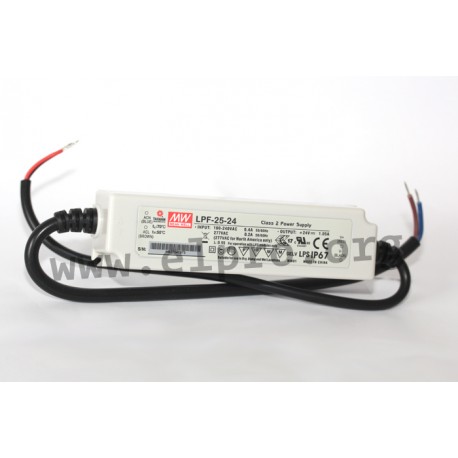

Meanwell LPF-25 series

LPF-25-42

36518 LPF-25-42 LPF-25-42 4711287458410 Mean Well LED driver series LPF-25. LED drivers in a plastic housing (IP67) with a constant voltage, 25W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage, are suitable for LED lighting applications and have a built-in active PFC function. They comply with UL1310 class 2, EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. We offer the following types of this Mean Well series: LPF-25-12, LPF-25-15, LPF-25-20, LPF-25-24, LPF-25-30, LPF-25-36, LPF-25-42, LPF-25-48 and LPF-25-54. single output output: 25 to 25,44W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC operating temperature: -35 to +70°C dimensions: 148x40x32mm weight: 360g

Specifications

manufacturer
Manufacturer's name LPF-25-42
GTIN 4711287458410
Output voltage [V] 42
Phase 2 phase
Efficiency [%] 85,5
Output current range [A] 0,6
Output voltage tolerance: [%] 4
Output power [W] 25,2
Ripple [mVp-p] 250
Data Sheet

Unit price

18,99 €

Volume discounts

Quantity Unit price
50 + 17,69 €

Stock: 34
Further delivery:
CW 16/2025
